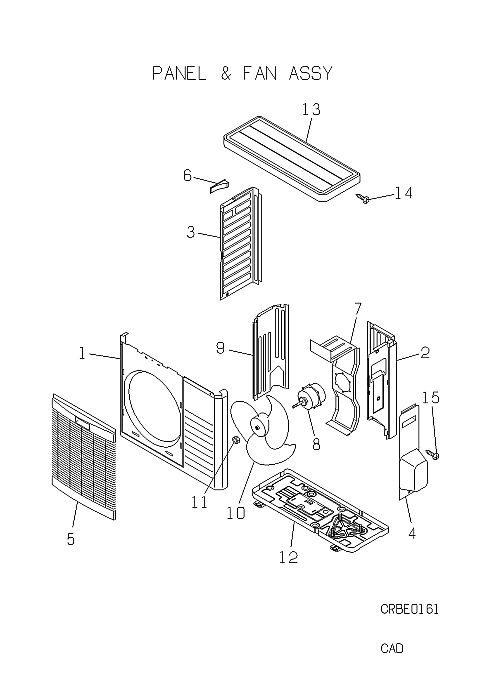

SRC09CBA PANEL AND FAN ASSY

SRC09CBA PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCK122A502A
PANEL,FRONT
Contact
Substitute: RCK122A502
[2] Contact
RCK123A500B
PANEL ASSY
Contact
[3] Out of Stock
RCK123A502
PANEL,SIDE
Notes: LEFT
[4] In Stock
RCK132A501
PANEL
Show Image
RCK132A501
[5] In Stock
RCK435A501A
GRILLE,OUT
[6] Out of Stock
SSA944B032
HANDLE
[7] Out of Stock
RCK116A501
BRACKET,MOT
[8] Out of Stock
SSA511T087C
MOTOR AC
Substitute: OUT OF PRODUCTION Show Image
SSA511T087C
[9] Contact
RCK141A501
PLATE BUFFL
Contact
[10] In Stock
SSA431B168
PROPELLER
[11] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[12] Contact
RCK111A501
B A S E
Contact
[13] Contact
RCK124A501B
PANEL ASSY
Contact
[14] In Stock
SSA913A034B
SCREW
Notes: 4X8, 1pc ONLY
[15] In Stock
SSA913A034C
SCREW
Notes: 4X12, 1pc ONLY
SKU: SRC09CBA PANEL AND FAN ASSY Category:
