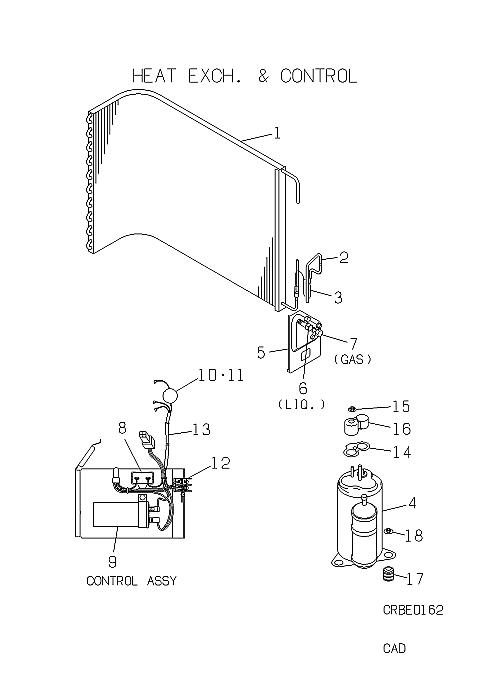

SRC09CBA HEAT EXCH. AND CONTROL

SRC09CBA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RWC301A021
HEAT EXCH
Contact
[2-3] Contact
RWC304A109
PIPING ASSY
Contact
[3] In Stock
RWC315B092
CAPILLARY
Notes: !D1.3XD2.5 L450
[4] In Stock
AHT201A240N
RM5512GNE1
Notes: RM5512GNE1 1PHASE 220, ***COMPRESSORS CANNOT BE RETURNED***
[5] Contact
RCK116A002
B/K(VALVE)
Contact
[6] In Stock
RCK381A501
SERVICE V
Notes: LIQ. Show Image
RCK381A501
[7] In Stock
RCG381A703
SERVICE V
Notes: GAS Show Image
RCG381A703
[8] In Stock
SSA552A153
CAPACITOR,R
Notes: CFO, 1.6MF 460VAC Show Image
SSA552A153
[9] In Stock
SSA552A825
CAPACITOR
Notes: CC Show Image
SSA552A825
[10] In Stock
ASA533B149
PROTECTOR
Notes: 51C Show Image
ASA533B149
[11] In Stock
AHA941D003
SPRING (PROTECTOR)
Show Image
AHA941D003
[12] Contact
SSA561B669
BLOCK,TERMI
Contact
[13] Contact
RWC504A083
WIRING ASSY
Contact
Notes: FOR COMP.
[14] In Stock
AHA932C002
GASKET
[15] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[16] In Stock
AHA947K002
COVER
[17] In Stock
SSA941C241
CUSION
Show Image
SSA941C241
[18] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[19] Contact
RSA011F393A
LABEL MODEL
Contact
SKU: SRC09CBA HEAT EXCH. AND CONTROL Category:
