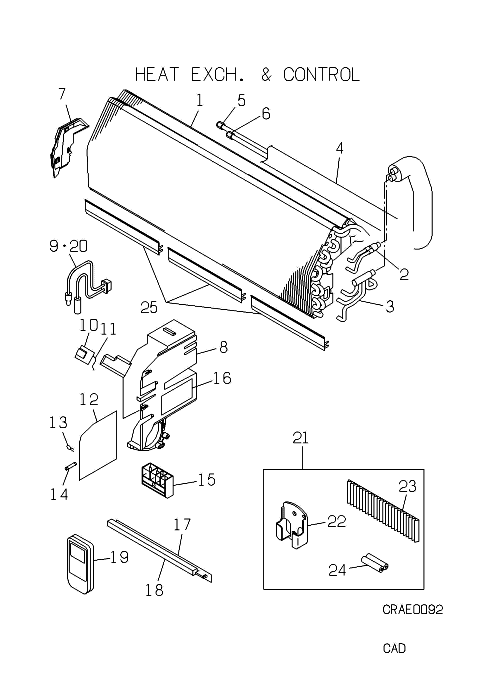

SKM50ZA HEAT EXCH. AND CONTROL

SKM50ZA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
RKS301A207
HEAT EXCH
Contact
Substitute: RKS301A206
[1-7] Contact
RKS301A404C
HEAT EXCH
Contact
[2] Contact
RKS321A201
PIPE ASSY
Contact
[3] Contact
RKS315D202
HEADER
Contact
[4-6] Contact
RKS321A412
PIPE
Contact
[5] Contact
SSA323F084
UNION
Contact
Notes: LIQ.
[6] Contact
SSA323F084B
UNION
Contact
Notes: GAS
[7] Contact
RKS129A203
BRACKET
Contact
[8] Contact
RKS142A200
CONT BOX
Contact
[9] In Stock
SSA551A163J
SENSOR
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)/ LENGTH 56CM Show Image
SSA551A163J
[10] In Stock
SSA551B012
SENSER
Notes: TH3, HUMIDITY Show Image
SSA551B012
[11] In Stock
RKS504A104
HARNESS ASSY
Notes: FOR TH3 Show Image
RKS504A104
[12-14] Out of Stock
RKS505A810C
PWB ASSY
Substitute: OUT OF PRODUCTION
[13] Contact
SSA555B003B
VARISTOR
Contact
Notes: Z
[14] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[15] Contact
SSA561B675B
BLOCK,TERMI
Contact
[16] Contact
RKS011G810A
LABEL,WIRING
Contact
[17-18] In Stock
RKS503A400B
DISPLAY
Notes: RECEIVER BOARD WITH WIRING HARNESS Show Image
RKS503A400B

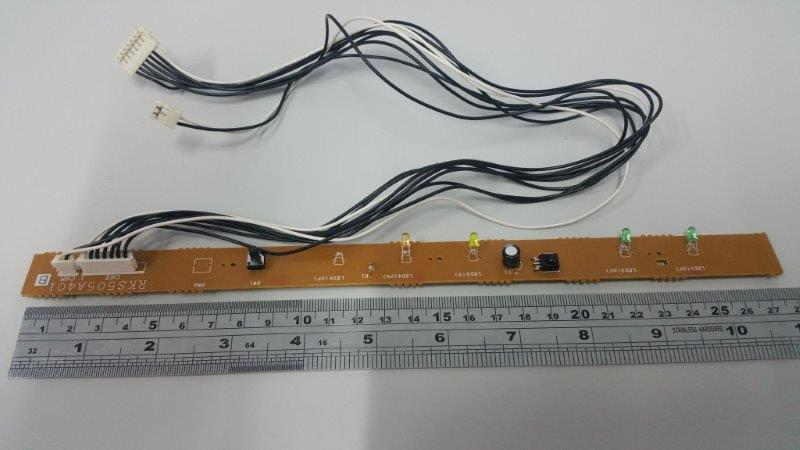

[18] Out of Stock
RKS505A401B
PWB
Notes: HAS CABLE BUT NO PLASTIC EXTRA Show Image
RKS505A401B
[19] In Stock
RKS502A503
REMOTE CONTROL
Show Image
RKS502A503
[20] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[21] Contact
RKR008A005T
PARTS SET
Contact
[22] In Stock
RKN032A002A
PLATE REMOC
Show Image
RKN032A002A
[23] Out of Stock
RKR437A201
FILTER,CLEAN
Substitute: OUT OF PRODUCTION Notes: 1pc ONLY
[24] Contact
RSA549A001
BATTERY
Contact
Substitute: RKH549A500
[25] Contact
RKL129A016
PLATE,BAFFLE
Contact
[26] Contact
RSA011F389A
LABEL,MODEL NAME
Contact
SKU: SKM50ZA HEAT EXCH. AND CONTROL Category:
