SKM252HENG-A PANEL AND FAN ASSY

SKM252HENG-A PANEL AND FAN ASSY

Available Parts

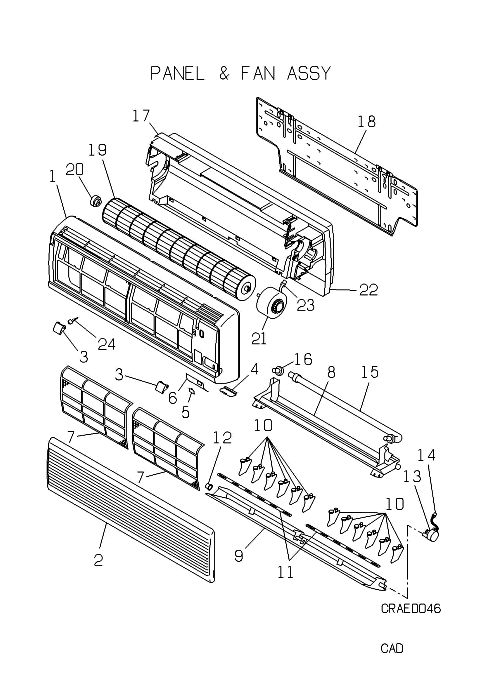

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RKS122A500 FRONT PANEL In Stock
  • [1-7] RKS102A500AG FRONT PANEL Contact   Contact
  • [2] RKS435A500A GRILLE AIR Out of Stock Substitute: OUT OF PRODUCTION Notes: AIR INLET
  • [3] RKS129A500 CAP Contact   Contact
  • [4] RKS129A501 PLATE Contact   Contact
  • [6] RKS133A501AK PLARTE DISP Contact   Contact
  • [7] RKS437A500 FILTER In Stock Substitute: RKS437A500A Notes: RETURN AIR/ DUST FILTER - SOLD INDIVIDUALLY - UNIT HAS 2, 1pc ONLY
  • [8] RKS435A502 GRILLE IN In Stock
  • [8-16] RKS435A501D GRILLE AIR In Stock
  • [9] RKS436A500 FLAP In Stock
  • [10] RKS436A502 LOUVER In Stock Notes: 1pc ONLY Show Image
  • [10-11] RKS436A501 LOUVER ASSY In Stock Notes: 6 LOUVERS AND CONNECTING PLATE Show Image
  • [11] RKS129A502 PLATE CONEC Contact   Contact
  • [12] RKR935C001 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY Show Image
  • [13] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [14] RKS504A500 HARNESS Out of Stock Substitute: OUT OF PRODUCTION Notes: FOR FLAP MOTOR Show Image
  • [15] RSA423A001 DRAIN HOSE In Stock Substitute: SSA423A073
  • [16] SSA326A038 PLUG In Stock Show Image
  • [17] RKS111A500 BASE Contact   Contact
  • [18] RKS032A500 PLATE Out of Stock Substitute: OUT OF PRODUCTION
  • [19] SSA431G033A IMPELLER In Stock Notes: IMPELLER/FAN SCROLL/FAN BARRELL
  • [20] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING Show Image
  • [21] SSA511C056 MOTOR In Stock Notes: FOR IMPELLER Show Image
  • [22] RKS132A500 LID In Stock Show Image
  • [23] RKN504A115A HARNESS Contact   Contact
  • [24] SSA913A007 SCREW In Stock Notes: 1PC ONLY, 4x12 Show Image
SKU: SKM252HENG-A PANEL AND FAN ASSY Category:
