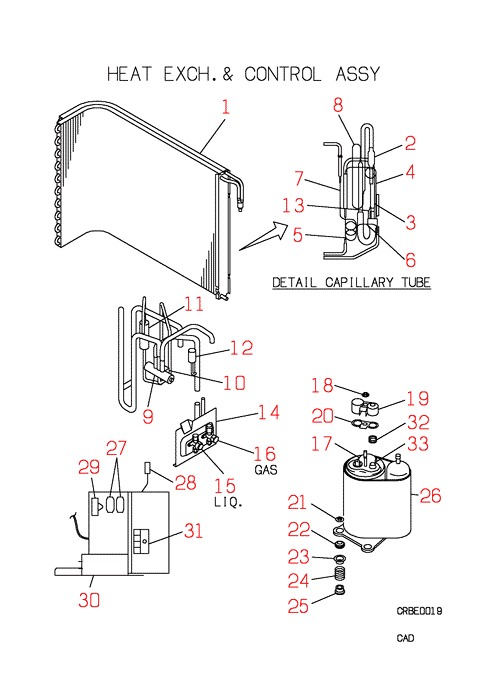

SCT403HENF-A HEAT EXCH. AND CONTROL

SCT403HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] Contact
RCC301A010C
HEAT EXCH ASSY(AIR
Contact
[2] Out of Stock
SSA357A007
STRAINER
Substitute: ZZ60573
[2-8] Contact
RCC304A030B
PIPING ASSY(CAPI)
Contact
[3] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[4] Contact
RCC315B024
CAPILLARY TUBE
Contact
Notes: ! D1.5XD2.5 L350
[5] Contact
RCC315B025
CAPILLARY TUBE
Contact
Notes: ! D1.5XD2.5 L300
[6] Contact
RCC315B026
CAPILLARY TUBE
Contact
Notes: ! D1.5XD2.5 L300
[7] Contact
RCC315B027
CAPILLARY TUBE
Contact
Notes: ! D1.5XD2.5 L250
[8] Contact
RCC315B044
CAPILLARY TUBE
Contact
Notes: ! D1.8XD3.2 L300
[9] In Stock
SSA382C014
VALVE 4WAY
Show Image
SSA382C014
[10] In Stock
SSA382F008F
COIL S 150O
Notes: 20S Show Image
SSA382F008F
[11] Contact
SSA325A001AY
MUFFLER
Contact
[12] Out of Stock
RCC532A001A
SWITCH
Substitute: OUT OF PRODUCTION
[13] Contact
RCC315B023
CAPILL,ASY
Contact
Notes: INCL. D0.8XD2.0 L1000
[14] Contact
RCC116A003N
BRAKET VALV
Contact
[15] Out of Stock
RCC381A009
VALVE SERVI
Notes: GAS
[16] In Stock
RCC381A010
VALVE SERVI
Notes: LIQ. Show Image
RCC381A010
[17] Out of Stock
AHM201A351NC
COMPRESSOR ASSY
Notes: RM5518GNHE4 1PHASE 220/240V 50HZ, ***COMPRESSORS CANNOT BE RETURNED***
[18] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[19] Out of Stock
AHL947K001
COVER,TERMINAL
Substitute: OUT OF PRODUCTION
[20] In Stock
AHL932C002
GASKET,COVER
Show Image
AHL932C002
[21] In Stock
SSA914C033
NUT
Notes: 1pc
[22] Contact
SSA941C133
CUSHION RUB
Contact
[23] Contact
SSA935C010
COLLER
Contact
Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[24] Contact
AHA941D002A
SPRING(MOUNT)
Contact
[25] Contact
SSA941C012
CUSHION
Contact
Substitute: RM80168
[26] Contact
RCC151D010
INSULATION ASSY,CO
Contact
[27] In Stock
SSA521F079
RELAY
Notes: 52FO,52XO, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image
SSA521F079
[28] In Stock
SSA531D013A
SWITCH THER
Notes: 23DH Show Image
SSA531D013A
[29] In Stock
SSA552A862C
CAPACITOR,R
Notes: CFO 3MF 400V Show Image
SSA552A862C
[30] Contact
SSA552A130
CAPACITOR
Contact
Notes: CC
[31] In Stock
SSA561C007
TERMINAL
Show Image
SSA561C007
[32] Out of Stock
AHL941D003
SPRING(PROTECTOR)
[33] Contact
ASA533B158
PROTECTOR,MOTOR
Contact
Notes: 51C
