SCM80ZS-W HEAT EXCH. AND CONTROL

Name: SCM80ZS-W HEAT EXCH. AND CONTROL
SKU: SCM80ZS-W HEAT EXCH. AND CONTROL
Availability: InStock

SCM80ZS-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

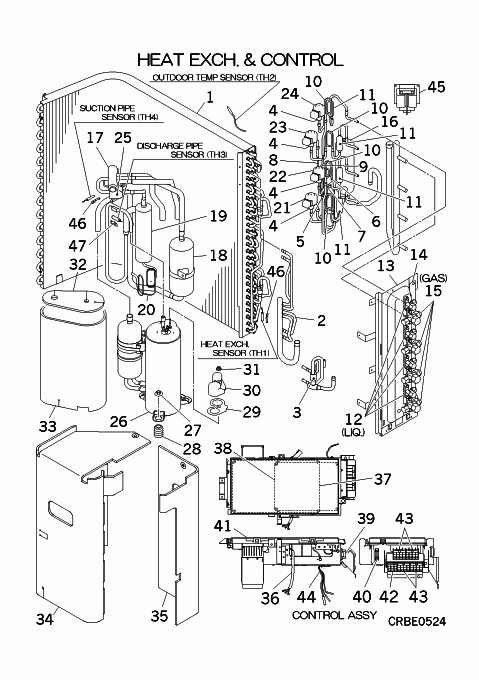

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Out of Stock

RPC301A907

HEAT EXCH ASSY(AIR

[2] Contact

RPC315D909

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

RPC315A903

DISTRIBUTOR ASSY

Contact

[4] In Stock

SSA387F078

VALVE, BODY(EXP)

Notes: EEVA,EEVB,EEVC,EEVD, Expansion Valve Body - LENGTH 7.7CM Show Image

[4-12] Contact

RPC304A939

PIPING ASSY(SM)

Contact

[5] Contact

RSA315A004

DISTRIBUTOR

Contact

Notes: !

[5-9] Contact

RPC315A902

DISTRIBUTOR ASSY

Contact

[6] Contact

RPC315B922

CAPILLARY(1)

Contact

Notes: !D2.6XD4.0 L200

[7] Contact

RPC315B923

CAPILLARY(2)

Contact

Notes: !D2.6XD4.0 L200

[8] Contact

RPC315B921

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L200

[9] Contact

RPC315B924

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L200

[10] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[11] In Stock

SSA357A005A

STRAINER

Notes: ! Show Image

[12] In Stock

RPC381A900A

VALVE,SERVICE(1/4"

Notes: LIQ.

[13] Contact

RPC116A900

BRACKET ASSY(VALVE

Contact

[14] Contact

RPC116A904

BRACKET ASSY(VALVE

Contact

[15] In Stock

RPC381A854B

VALVE,SERVICE(3/8"

Notes: GAS, LENGTH 7.5CM Show Image

[16] Contact

RPC352D202

RECEIVER ASSY

Contact

[17] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[18] Contact

RSA351A006

ACCUMULATOR

Contact

[19] Contact

RPC354A903A

SEPARATOR ASSY,OIL

Contact

[19-20] Contact

RPC304A927

PIPING ASSY(DISCH)

Contact

[20] Contact

RPC315B926A

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[21] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEVA, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[22] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[23] In Stock

SSA382F210BC

COIL,SOLENOID

Notes: FOR EEVC, FOR EEVC‚ (BLUE PLUG)

[24] In Stock

SSA382F210BD

COIL,SOLENOID

Notes: FOR EEVD

[25] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[26] In Stock

AHT201P184BA

COMPRESSOR ASSY

Notes: RMT5118SBP2, ***COMPRESSORS CANNOT BE RETURNED***

[27] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[28] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[29] In Stock

RSA932C004

GASKET

Show Image

[30] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[31] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[32] Contact

RPC154D905

INSULATION,COMP

Contact

Notes: COMP UPPER

[33] Contact

RPC154D906

INSULATION,COMP

Contact

Notes: COMP BODY

[34] Contact

RPC154D907

INSULATION

Contact

Notes: OUTSIDE

[35] Contact

RPC154D901A

INSULATION

Contact

Notes: OUTSIDE

[36] In Stock

RPC504A209A

WIRING ASSY

Notes: FOR COMP. Show Image

[37] In Stock

RCR505A110CJ

PWB ASSY (MAIN)

Notes: PWB1, PWB1 - MAIN BOARD

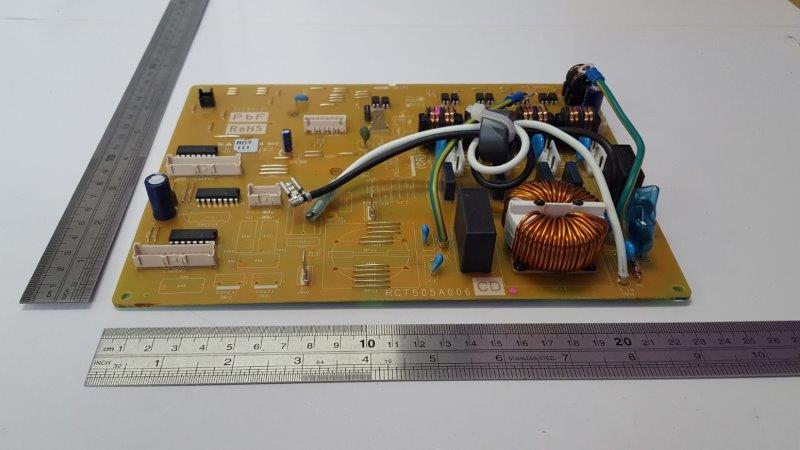

[38] In Stock

RCT505A006CD

PWB ASSY(SUB)

Notes: PWB2

[39] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F 20A, F 20A‚ - 20 amp fuse Show Image

[40] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[41] In Stock

RPC142A203J

LID ASSY,CONTROL

[42] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[43] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2,3,4,5, T2 Show Image

[44] In Stock

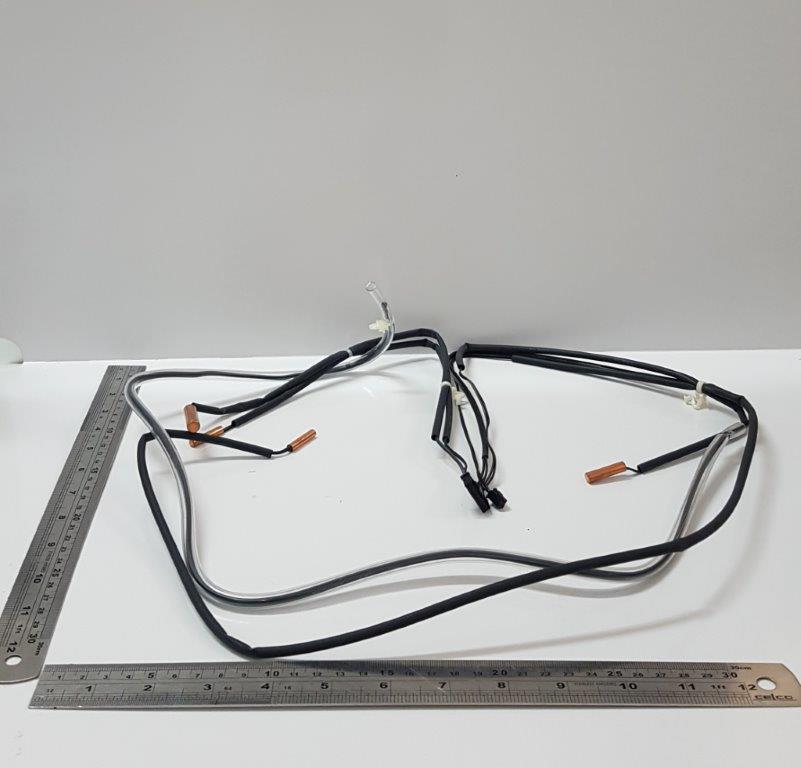

SSA551A232P

SENSOR ASSY

Notes: TH2,3,4,5 Show Image

[45] In Stock

SSA554B114

REACTOR

Show Image

[46] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR TH2,5 Show Image

[47] In Stock

RCJ941F001

SPRING

Notes: FOR TH4, LENGTH 2.5CM Show Image

[48] Contact

RWC011F039C

LABEL,MODEL NAME

Contact

Notes: !
