SCM80ZM-S HEAT EXCH. AND CONTROL

SCM80ZM-S HEAT EXCH. AND CONTROL

Available Parts

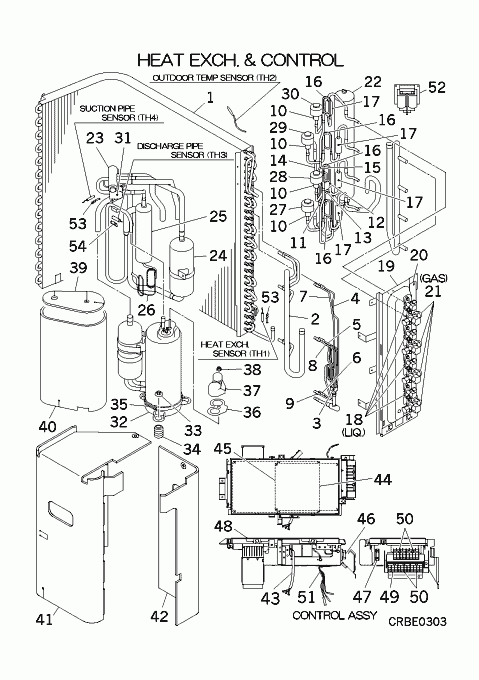

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-9] RPC301A901 HEAT EXCH ASSY(AIR In Stock
  • [2] RPC315D904 HEADER ASSY,GAS Contact   Contact
  • [3] RSA315A005 DISTRIBUTOR Contact   Contact
  • [3-9] RPC315A900A DISTRIBUTOR ASSY In Stock
  • [4] RPC315B911 CAPILLARY(1) Contact Notes: !D2.6XD4.0 L400, !D2.6XD4.0 L400   Contact
  • [5] RPC315B912 CAPILLARY(2) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [6] RPC315B919 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [7] RPC315B914 CAPILLARY(4) Contact Notes: !D2.6XD4.0 L400, !D2.6XD4.0 L400   Contact
  • [8] RPC315B915 CAPILLARY(5) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [9] RPC315B920 CAPILLARY(6) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [10] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [10-18] RPC304A916 PIPING ASSY(SM) Contact   Contact
  • [11] RSA315A004 DISTRIBUTOR Contact   Contact
  • [11-15] RPC315A902 DISTRIBUTOR ASSY Contact   Contact
  • [12] RPC315B922 CAPILLARY(1) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [13] RPC315B923 CAPILLARY(2) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [14] RPC315B921 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [15] RPC315B924 CAPILLARY(4) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [16] RCN315B001 CAPILLARY,SUB Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [17] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [18] RPC381A900A VALVE,SERVICE(1/4 In Stock Notes: LIQ.
  • [19] RPC116A900 BRACKET ASSY(VALVE Contact   Contact
  • [20] RPC116A904 BRACKET ASSY(VALVE Contact   Contact
  • [21] RPC381A854B VALVE,SERVICE(3/8 In Stock Notes: LENGTH 7.5CM, GAS Show Image
  • [22] RPC352D904 RECEIVER ASSY Contact   Contact
  • [23] SSA382C098 VALVE S(4WAY) In Stock Notes: REVERSING VALVE, BODY ONLY, 20S Show Image
  • [24] RSA351A004 ACCUMULATOR ASSY In Stock Substitute: RSA351A006
  • [25] RPC354A903 SEPARATOR ASSY,OIL Contact   Contact
  • [25-26] RPC304A923 PIPING ASSY(DISCH) Contact   Contact
  • [26] RPC315B926 CAPILLARY Contact Notes: !D1.0XD2.0 L1000, !D1.0XD2.0 L1000   Contact
  • [27] SSA382F210C COIL,SOLENOID In Stock Notes: FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM, FOR EEV Show Image
  • [28] SSA382F210D COIL,SOLENOID In Stock Notes: FOR EEVB - 5 WIRES - RED PLUG, FOR EEVB Show Image
  • [29] SSA382F210BC COIL,SOLENOID In Stock Notes: FOR EEVC, FOR EEVC
  • [30] SSA382F210BD COIL,SOLENOID In Stock Notes: FOR EEVD, FOR EEVD
  • [31] RSA382F013BB COIL ASSY,SOLENOID Contact Notes: FOR 20S   Contact
  • [32] AHT201C184DA COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***(RMT5118MDE2), RMT5118MDE2
  • [33] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [34] SSA941C351A CUSHION,RUBBER In Stock
  • [35] RPC541B001D HEATER ASSY(CRANK) In Stock Show Image
  • [36] RSA932C004 GASKET In Stock Show Image
  • [37] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [38] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [39] RPC154D903 INSULATION,COMP Contact Notes: COMP UPPER, COMP UPPER   Contact
  • [40] RPC154D904 INSULATION,COMP Contact Notes: COMP BODY, COMP BODY   Contact
  • [41] RPC154D900 INSULATION Contact Notes: OUTSIDE, OUTSIDE   Contact
  • [42] RPC154D901 INSULATION Contact Notes: OUTSIDE, OUTSIDE   Contact
  • [43] RPC504A912 WIRING ASSY In Stock Notes: FOR COMP., FOR COMP. Show Image
  • [44] RCT505A005JG PWB ASSY MAIN In Stock Notes: PWB1
  • [45] RCT505A006AH PWB ASSY (SUB) In Stock Notes: PWB2
  • [46] SSA564A136A FUSE(CURRENT) In Stock Notes: F 20A - 20 AMP FUSE, 20A Show Image
  • [47] SSA564B088 HOLDER,FUSE Out of Stock Show Image
  • [48] RPC142A906 LID ASSY,CONTROL Contact   Contact
  • [49] SSA561B665 BLOCK TERMI In Stock Substitute: SSA561B211A Notes: T1, T1 Show Image
  • [50] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [51] SSA551A232C SENSOR ASSY In Stock Notes: 3 SENSORS ON 1 PLUG, 1 SENSOR ON OTHER PLUG., TH1,2,3,4 Show Image
  • [52] SSA554B113 REACTOR In Stock Show Image
  • [53] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Show Image
  • [54] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [55] RWC011F017BG LABEL,MODEL NAME Contact   Contact
SKU: SCM80ZM-S HEAT EXCH. AND CONTROL Category:
