SCM80ZJ-S HEAT EXCH. AND CONTROL

Name: SCM80ZJ-S HEAT EXCH. AND CONTROL
SKU: SCM80ZJ-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM80ZJ-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RPC504A916

HARNESS

Notes: MAIN PWB - SUB PWB (CNMAIN - CNSUB)

[1-9] In Stock

RPC301A901

HEAT EXCH ASSY(AIR

[2] Contact

RPC315D904

HEADER ASSY,GAS

Contact

[3] Contact

RSA315A005

DISTRIBUTOR

Contact

[3-9] In Stock

RPC315A900A

DISTRIBUTOR ASSY

[4] Contact

RPC315B911

CAPILLARY(1)

Contact

Notes: !D2.6XD4.0 L400

[5] Contact

RPC315B912

CAPILLARY(2)

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC315B919

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L500

[7] Contact

RPC315B914

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L400

[8] Contact

RPC315B915

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L500

[9] Contact

RPC315B920

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L500

[10] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[10-18] In Stock

RPC304A916

PIPING ASSY(SM)

[11] Contact

RSA315A004

DISTRIBUTOR

Contact

[11-15] Contact

RPC315A902

DISTRIBUTOR ASSY

Contact

[12] Contact

RPC315B922

CAPILLARY(1)

Contact

Notes: !D2.6XD4.0 L200

[13] Contact

RPC315B923

CAPILLARY(2)

Contact

Notes: !D2.6XD4.0 L200

[14] Contact

RPC315B921

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L200

[15] Contact

RPC315B924

CAPILLARY(4)

Contact

Notes: !D2.6XD4.0 L200

[16] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[17] In Stock

SSA357A005A

STRAINER

Show Image

[18] In Stock

RPC381A900

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[19] Contact

RPC116A900

BRACKET ASSY(VALVE

Contact

[20] Contact

RPC116A904

BRACKET ASSY(VALVE

Contact

[21] In Stock

RPC381A854

VALVE,SERVICE (3/8")

Notes: GAS Show Image

[22] Contact

RPC352D904

RECEIVER ASSY

Contact

[23] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[24] In Stock

RSA351A004

ACCUMULATOR ASSY

[25] Contact

RPC354A903

SEPARATOR ASSY,OIL

Contact

[25-26] Contact

RPC304A923

PIPING ASSY(DISCH)

Contact

[26] Contact

RPC315B926

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[27] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

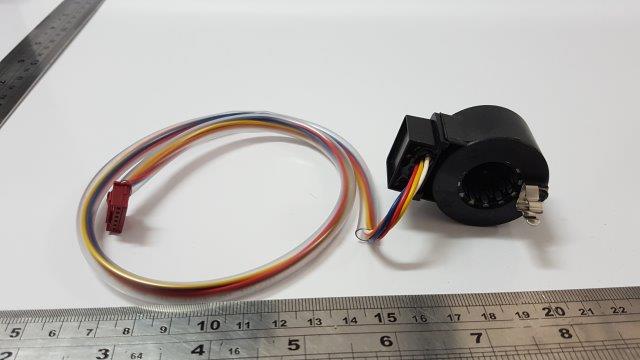

[28] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[29] In Stock

SSA382F210BC

COIL,SOLENOID

Notes: FOR EEVC, FOR EEVC‚ (BLUE PLUG)

[30] In Stock

SSA382F210BD

COIL,SOLENOID

Notes: FOR EEVD

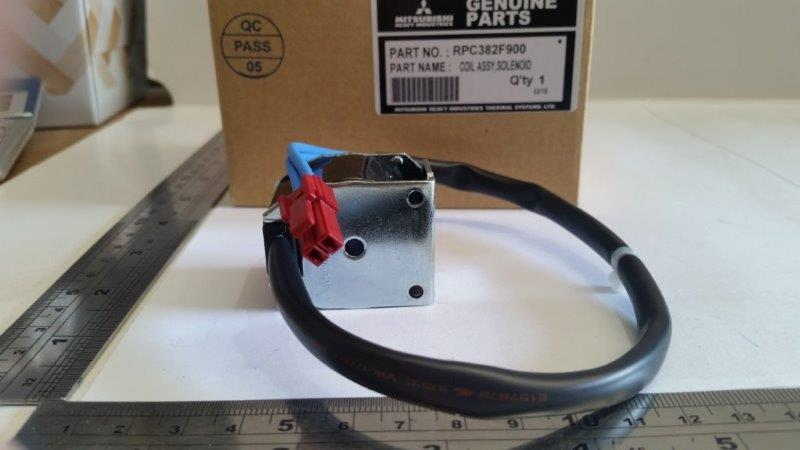

[31] In Stock

RPC382F900

COIL ASSY, SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[32] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[33] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[34] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[35] In Stock

RPC541B001D

HEATER ASSY(CRANK)

Show Image

[36] In Stock

RSA932C004

GASKET

Show Image

[37] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[38] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[39] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[40] In Stock

RPC154D904

INSULATION,COMP

Notes: COMP BODY

[41] Contact

RPC154D900

INSULATION

Contact

Notes: OUTSIDE

[42] Contact

RPC154D901

INSULATION

Contact

Notes: OUTSIDE

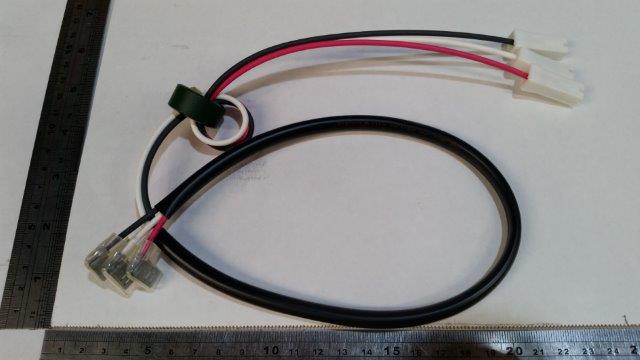

[43] In Stock

RPC504A912

WIRING ASSY

Notes: FOR COMP. Show Image

[44] In Stock

RCT505A005JB

PWB1 (MAIN)

Notes: PWB1, MUST CONFIRM SERVICE CODE. PLUGS INTO COMPRESSOR, FAN MOTOR, SOME SENSORS, REACTOR AND PWB2 -

[45] In Stock

RCT505A006D

PWB ASSY(SUB)

Notes: PWB2, PWB2 - PLUGS INTO EEV's

[46] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[47] In Stock

SSA564B088

FUSE HOLDER

Show Image

[48] In Stock

RPC142A906

LID ASSY,CONTROL

[49] In Stock

SSA561B665

BLOCK,TERMINAL

Notes: T1 Show Image

[50] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[51] In Stock

SSA551A232C

SENSOR ASSY

Notes: TH1,2,3,4, 3 SENSORS ON 1 PLUG, 1 SENSOR ON OTHER PLUG. Show Image

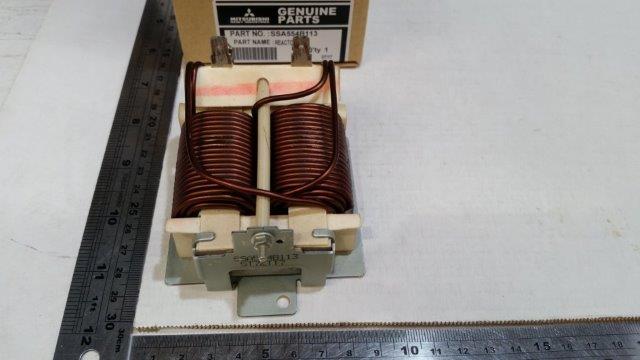

[52] In Stock

SSA554B113

REACTOR

Show Image

[53] In Stock

RKJ941F001

SPRING LEAF

Show Image

[54] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[55] Contact

RWC011F017

LABEL,MODEL NAME

Contact
