SCM80ZG-S PANEL AND FAN ASSY

SCM80ZG-S PANEL AND FAN ASSY

Available Parts

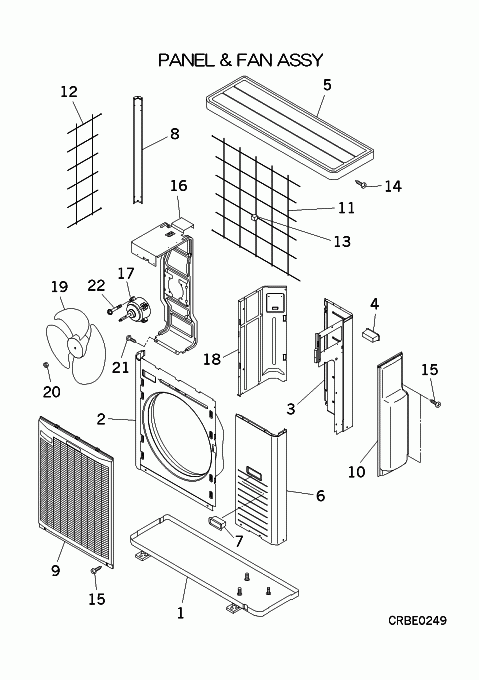

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

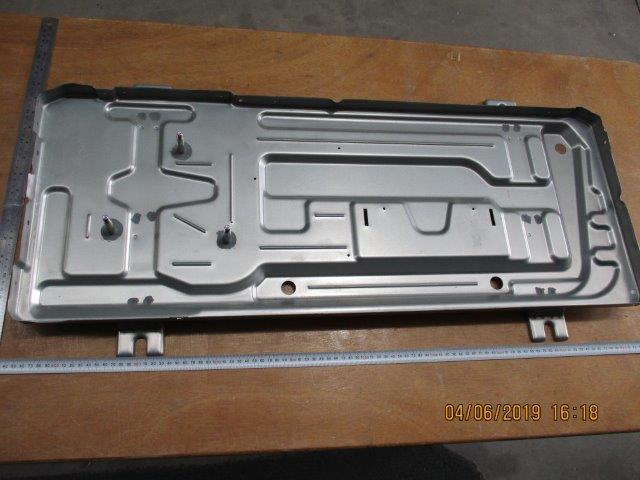

  • [1] RCR111A001B BASE ASSY In Stock Show Image
  • [2] RCR122A001 PANEL ASSY, FRONT In Stock
  • [3-4] RPC125A900 PANEL ASSY,REAR In Stock
  • [4] SSA944B031A HANDLE In Stock Show Image
  • [5] RCR124A002 PANEL ASSY, TOP In Stock Notes: TOP PANEL
  • [6-7] RCR122A004A PANEL ASSY,SERVICE In Stock
  • [7] SSA944B031A HANDLE In Stock Show Image
  • [8] RCR115A002A SUPPORT,CORNER In Stock
  • [9] RCR435A001 GRILLE,AIR In Stock Notes: AIR OUTLET GRILLE / FAN GUARD
  • [10] RPC132A900 SERVICE PANEL In Stock
  • [11] RCR131A001 GUARD,FIN(A) In Stock
  • [12] RCR131A002 GUARD,FIN(B) In Stock
  • [13] RCR941G001 CUSHION,RUBBER In Stock Notes: ! Show Image
  • [14] SSA913A034B SCREW In Stock Notes: 1PC ONLY, 4X8
  • [15] SSA913A034C SCREW In Stock Notes: 1PC ONLY, 4X12
  • [16] RCR116A001 BRACKET,MOTOR In Stock
  • [17] SSA512T076H MOTOR, DC In Stock
  • [18] RCR141A001 PLATE,BAFFLE In Stock
  • [19] SSA431B247A FAN In Stock Notes: OUTDOOR FAN BLADE
  • [20] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: **1PC ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [21] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [22] SSA913C031A SCREW TAP In Stock Notes: 1PC ONLY Show Image
