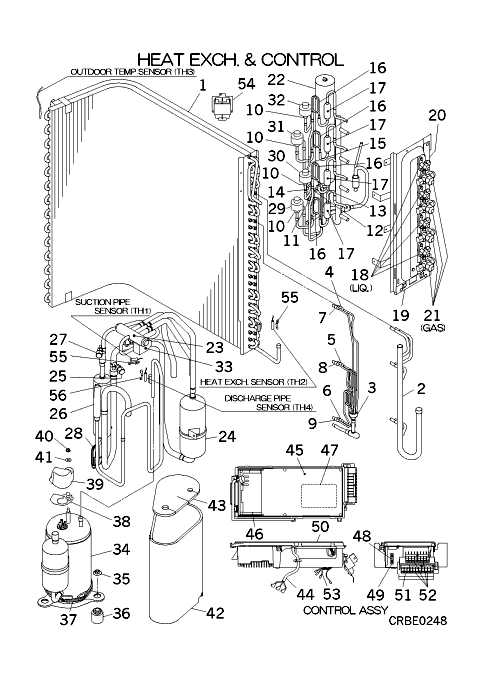

SCM80ZF-S HEAT EXCH. AND CONTROL

SCM80ZF-S HEAT EXCH. AND CONTROL

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-9] RPC301A900 HEAT EXCH ASSY(AIR In Stock
  • [2] RPC315D900 HEADER ASSY,GAS Contact Notes: !   Contact
  • [3] RSA315A005 DISTRIBUTOR Contact   Contact
  • [3-9] RPC315A900 DISTRIBUTOR ASSY Contact   Contact
  • [4] RPC315B911 CAPILLARY(1) Contact Notes: !D2.6XD4.0 L400, !D2.6XD4.0 L400   Contact
  • [5] RPC315B912 CAPILLARY(2) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [6] RPC315B913 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [7] RPC315B914 CAPILLARY(4) Contact Notes: !D2.6XD4.0 L400, !D2.6XD4.0 L400   Contact
  • [8] RPC315B915 CAPILLARY(5) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [9] RPC315B916 CAPILLARY(6) Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [10] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, EEVH or SM Show Image
  • [10-18] RPC304A904 PIPING ASSY(SM) Contact   Contact
  • [11] RSA315A004 DISTRIBUTOR Contact   Contact
  • [11-15] RPC315A901 DISTRIBUTOR ASSY Contact   Contact
  • [12] RPC315B906 CAPILLARY(1) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [13] RPC315B907 CAPILLARY(2) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [14] RPC315B908 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [15] RPC315B909 CAPILLARY(4) Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [16] RCN315B001 CAPILLARY,SUB Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [17] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [18] RPC381A900 VALVE,SERVICE(1/4 In Stock Notes: LIQ., LIQ. Show Image
  • [19] RPC116A900 BRACKET ASSY(VALVE Contact   Contact
  • [20] RPC116A904 BRACKET ASSY(VALVE Contact   Contact
  • [21] RPC381A854 VALVE,SERVICE (3/8) In Stock Substitute: RPC381A854B Notes: GAS, GAS Show Image
  • [22] RPC352D900 RECEIVER ASSY Contact   Contact
  • [23] SSA382C068 4 WAY VALVE In Stock Notes: 20S - REVERSING VALVE BODY - (NOT COIL), 20S Show Image
  • [24] SSA351A102B ACCUMULATOR In Stock Substitute: RSA351A001
  • [25] RPC327B850A VALVE ASSY SERVICE Contact   Contact
  • [26] RPC354A900 SEPARATOR ASSY,OIL Contact   Contact
  • [26-28] RPC304A902 PIPING ASSY(DISCH) Contact   Contact
  • [27] RPC327B850A VALVE ASSY SERVICE Contact   Contact
  • [28] RPC315B859 CAPILLARY Contact Notes: !D1.0XD2.0 L1000   Contact
  • [29] SSA382F210L SOLENOID In Stock Notes: SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE), FOR EEV
  • [30] SSA382F210M COIL SOLENO In Stock Notes: EEVH, FOR EEVH Show Image
  • [31] SSA382F210F COIL SOLENOID In Stock Notes: EEVC - 5 WIRES, FOR EEVC
  • [32] SSA382F210K COIL SOLENO In Stock Notes: FOR EEVD Show Image
  • [33] RPC382F700F COIL ASSY,SOLENOID In Stock Notes: FOR 20S - REVERSING VALVE SOLENDOID COIL/ LENGTH 54CM, FOR 20S Show Image
  • [34] PCA201A048C COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***RCR505A002 PWB2 NO LONGER AVAILABLE, TNB220FLBMT1
  • [35] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [36] PCA941C011 CUSHION RU Contact   Contact
  • [37] RPC541B001B HEATER ASSY Contact   Contact
  • [38] PCA932C005A GASKET COVER In Stock Show Image
  • [39] PCA947K005 COVER TERM Contact Substitute: OUT OF PRODUCTION Show Image   Contact
  • [40] PCA914C001 NUT FLANG Contact Notes: 1PC   Contact
  • [41] PCA915H002 WASHER Contact Notes: 1PC ONLY   Contact
  • [42] RPC154D902 INSULATION,COMP Contact Notes: SIDE, SIDE   Contact
  • [43] RPC154D858 INSULATION,COMP(B) In Stock Notes: UPPER Show Image
  • [44] RPC504A887B WIRING ASSY Contact Notes: FOR COMP., FOR COMP.   Contact
  • [45] RPC505A860V MAIN PWB In Stock Notes: PWB1
  • [46] RPC505A861C PWB (POWER) In Stock Notes: CONTROLS THE COMPRESSOR. AKA INVERTER AKA PWB2 AKA IPM (HEAT SINK ATTACHED). IMAGE IS OF THE UNDERSIDE OF PWB., PWB2 INVERTER Show Image
  • [47] RPC505A862 PWB ASSY (CAPACITOR) In Stock Notes: PWB3 - AKA CAPACITOR PWB, PWB3 Show Image
  • [48] SSA564A136A FUSE(CURRENT) In Stock Notes: F 20A - 20 AMP FUSE, 20A Show Image
  • [49] SSA564B064 HOLDER In Stock Substitute: SSA564B044 Notes: LENGTH 6CM
  • [50] RPC142A856 LID ASSY CONTROL In Stock
  • [51] SSA561B665 BLOCK TERMI In Stock Substitute: SSA561B211A Notes: T1, T1 Show Image
  • [52] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [53] SSA551A195B SENSOR In Stock Notes: REPLACES SSA551A199B, TH1,2,3,4 Show Image
  • [54] SSA554B113 REACTOR In Stock Show Image
  • [55] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
  • [56] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [57] RWA012A241 MANUAL,INSTRUCTION Contact   Contact
  • [58] RWC011F009B LABEL,MODEL NAME Contact   Contact
