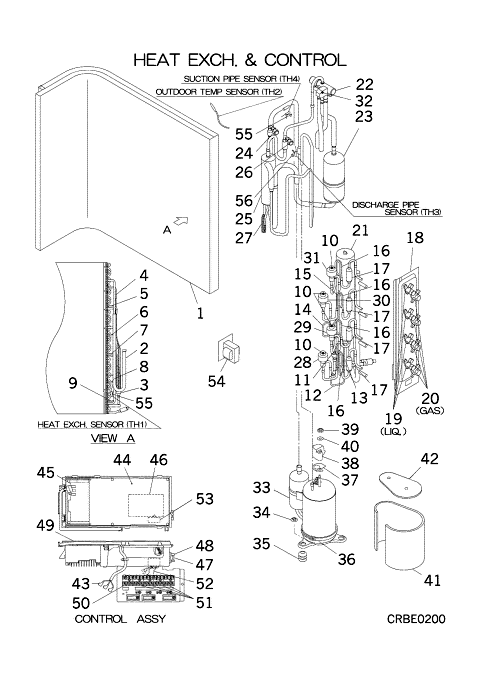

SCM80ZD-S HEAT EXCH. AND CONTROL

SCM80ZD-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] Contact
RPC301A853
HEAT EXCH A
Contact
[2] Contact
RPC315D854
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA315A252K
DISTRIBUTOR
Contact
[3-9] Contact
PCA315A075
DISTRIBUTOR ASSY
Contact
[4] Contact
PCA315B768
CAPILLARY(1)
Contact
Notes: !D2.2XD3.2 L500
[5] Contact
PCA315B769
CAPILLARY(2)
Contact
Notes: !D1.8XD3.2 L420
[6] Contact
PCA315B770
CAPILLARY(3)
Contact
Notes: !D1.8XD3.2 L340
[7] Contact
PCA315B771
CAPILLARY(4)
Contact
Notes: !D1.8XD3.2 L330
[8] Contact
PCA315B772
CAPILLARY(5)
Contact
Notes: !D2.2XD3.2 L500
[9] Contact
PCA315B773
CAPILLARY(6)
Contact
Notes: !D2.2XD3.2 L300
[10] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[10-17] Contact
RPC304A868
PIPING ASSY
Contact
[11] Out of Stock
SSA315A252A
DISTRIBUTOR
[11-15] Contact
RPC315A851
DISTRIBUTOR ASSY
Contact
[12] Contact
RPC315B860
CAPILLARY,SUB(1)
Contact
Notes: !D2.6XD4.0 L300
[13] Contact
RPC315B861
CAPILLARY,SUB(2)
Contact
Notes: !D2.6XD4.0 L300
[14] Contact
RPC315B862
CAPILLARY,SUB(3)
Contact
Notes: !D2.6XD4.0 L300
[15] Contact
RPC315B863
CAPILLARY,SUB(4)
Contact
Notes: !D2.6XD4.0 L300
[16] Contact
RCN315B001
CAPILLARY,SUB
Contact
Notes: !D2.6XD4.0 L300
[17] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[18] Contact
RPC116A862
BRACKET ASSY(VALVE
Contact
[19] Contact
RPC381A852B
VALVE,SERVI
Contact
Notes: LIQ.
[20] Contact
RPC381A854A
VALVE,SERVI
Contact
Notes: GAS
[21] Contact
RPC352D854
RECEIVER AS
Contact
[22] In Stock
SSA382C080
VALVE,S(4WAY)
Notes: 20S, 20S BODY Show Image
SSA382C080
[23] In Stock
SSA351A102B
ACCUMULATOR
[24] Contact
RPC327B850A
VALVE ASSY SERVICE
Contact
[25] Contact
RPC354A851
SEPARATOR,O
Contact
[25-27] Contact
RPC304A865
PIPING ASSY
Contact
[26] Contact
RPC327B850A
VALVE ASSY SERVICE
Contact
[27] Contact
RPC315B859
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[28] In Stock
SSA382F210L
COIL,SOLENOID
Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)
[29] In Stock
SSA382F210M
COIL SOLENOID
Notes: FOR EEVH, EEVH Show Image
SSA382F210M
[30] In Stock
SSA382F210F
COIL SOLENOID
Notes: FOR EEVC, EEVC - 5 wires
[31] In Stock
SSA382F210K
COIL SOLENOID
Notes: FOR EEVD Show Image
SSA382F210K
[32] In Stock
RPC382F700B
COIL ASSY,S
Notes: FOR 20S Show Image
RPC382F700B
[33] In Stock
PCA201A048C
COMPRESSOR
Notes: TNB220FLBMT1, ***COMPRESSORS CANNOT BE RETURNED***
[34] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[35] Contact
PCA941C011
CUSHION RU
Contact
[36] Contact
RPC541B001B
HEATER ASSY
Contact
[37] In Stock
PCA932C005A
GASKET COVER
Show Image
PCA932C005A
[38] Out of Stock
PCA947K005
COVER TERM
Substitute: OUT OF PRODUCTION Show Image
PCA947K005
[39] Contact
PCA914C001
NUT FLANG
Contact
Notes: 1pc
[40] Contact
PCA915H002
WASHER
Contact
Notes: 1pc ONLY
[41] Contact
RPC154D852
INSULATION,COMP
Contact
Notes: SIDE
[42] In Stock
RPC154D858
INSULATION,COMP(B)
Notes: UPPER Show Image
RPC154D858
[43] Contact
RPC504A862B
WIRING ASSY
Contact
Notes: FOR COMP.

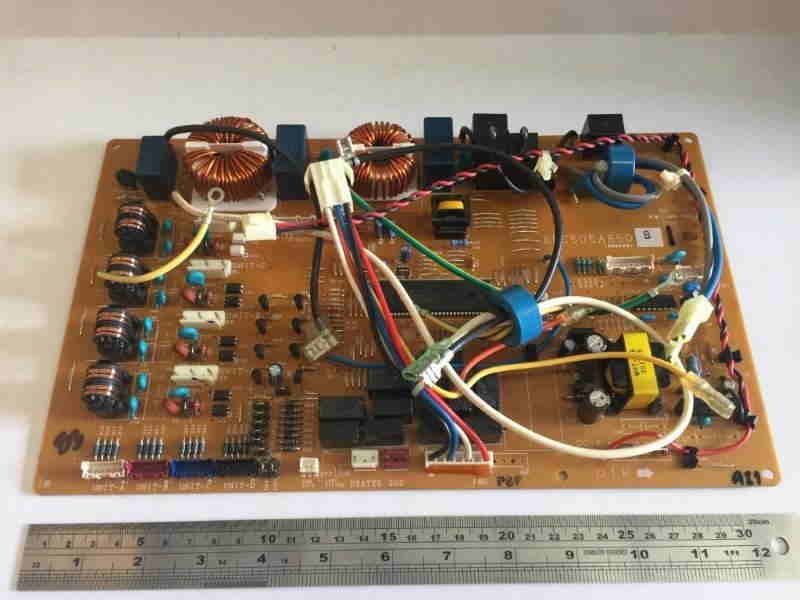

[44] Out of Stock
RPC505A850B
PWB MAIN
Substitute: OUT OF PRODUCTION Notes: PCB1 Show Image
RPC505A850B
[45] Out of Stock
RPC505A851A
PWB POWER
Substitute: OUT OF PRODUCTION Notes: PCB2

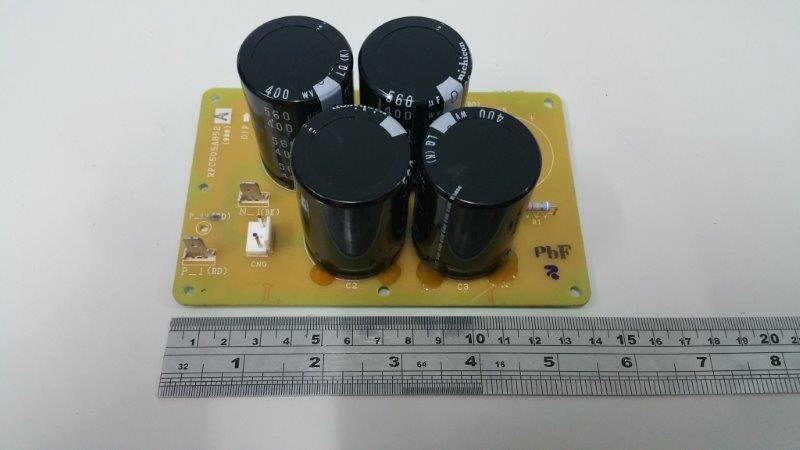

[46] In Stock
RPC505A852A
PWB CAPACI
Notes: PCB3 Show Image
RPC505A852A
[47] In Stock
SSA564A106B
FUSE(CURREN
Notes: F 20A, 20Amps
[48] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044
[49] In Stock
RPC142A856
Lid Assy Control
[50] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[51] In Stock
SSA561B675A
BLOCK,TERMI
Notes: TB Show Image
SSA561B675A
[52] In Stock
SSA551A195B
SENSOR ASSY
Notes: TH1,2,3,4, Replaces SSA551A199B Show Image
SSA551A195B
[53] Contact
RPC552A001
CAPACITOR,A
Contact
Notes: CFO 3.5MF 450V
[54] In Stock
SSA554B079
REACTOR
Show Image
SSA554B079
[55] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[56] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[57] Contact
RWA012A226
MANUAL,INST
Contact
[58] Contact
RPC011G852
LABEL,WIRING
Contact
Notes: !
[59] Contact
RSA011F397C
LABEL,MODEL NAME
Contact
