SCM71ZJ-S1/1 HEAT EXCH. AND CONTROL

SCM71ZJ-S1/1 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock
RPC504A916
HARNESS
Notes: MAIN PWB - SUB PWB (CNMAIN - CNSUB)
[1-9] In Stock
RPC301A901
HEAT EXCH ASSY(AIR
[2] Contact
RPC315D904
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
RSA315A005
DISTRIBUTOR
Contact
Notes: !
[3-9] In Stock
RPC315A900A
DISTRIBUTOR ASSY
[4] Contact
RPC315B911
CAPILLARY(1)
Contact
Notes: !D2.6XD4.0 L400
[5] Contact
RPC315B912
CAPILLARY(2)
Contact
Notes: !D2.6XD4.0 L500
[6] Contact
RPC315B919
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L500
[7] Contact
RPC315B914
CAPILLARY(4)
Contact
Notes: !D2.6XD4.0 L400
[8] Contact
RPC315B915
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L500
[9] Contact
RPC315B920
CAPILLARY(6)
Contact
Notes: !D2.6XD4.0 L500
[10] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEVA,EEVB,EEVC,EEVD, 'BODY' ONLY. Does NOT include coil
[10-18] In Stock
RPC304A916
PIPING ASSY(SM)
[11] Contact
RSA315A004
DISTRIBUTOR
Contact
Notes: !
[11-15] Contact
RPC315A902
DISTRIBUTOR ASSY
Contact
[12] Contact
RPC315B922
CAPILLARY(1)
Contact
Notes: !D2.6XD4.0 L200
[13] Contact
RPC315B923
CAPILLARY(2)
Contact
Notes: !D2.6XD4.0 L200
[14] Contact
RPC315B921
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L200
[15] Contact
RPC315B924
CAPILLARY(4)
Contact
Notes: !D2.6XD4.0 L200
[16] Contact
RCN315B001
CAPILLARY,SUB
Contact
Notes: !D2.6XD4.0 L300
[17] In Stock
SSA357A005A
STRAINER
Notes: ! Show Image
SSA357A005A
[18] In Stock
RPC381A900
VALVE,SERVICE(1/4"
Notes: LIQ. Show Image
RPC381A900
[19] Contact
RPC116A900
BRACKET ASSY(VALVE
Contact
[20] Contact
RPC116A904
BRACKET ASSY(VALVE
Contact
[21] In Stock
RPC381A854
VALVE,SERVICE (3/8")
Notes: GAS Show Image
RPC381A854
[22] Contact
RPC352D904
RECEIVER ASSY
Contact
[23] In Stock
SSA382C068
4 WAY VALVE
Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image
SSA382C068
[24] In Stock
RSA351A004
ACCUMULATOR ASSY
[25] Contact
RPC354A903
SEPARATOR ASSY,OIL
Contact
[25-26] Contact
RPC304A923
PIPING ASSY(DISCH)
Contact
[26] Contact
RPC315B926
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[27] In Stock
SSA382F210C
COIL,SOLENOID
Notes: FOR EEVA, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image
SSA382F210C
[28] In Stock
SSA382F210D
COIL,SOLENOID
Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image
SSA382F210D
[29] In Stock
SSA382F210BC
COIL,SOLENOID
Notes: FOR EEVC, FOR EEVC‚  (BLUE PLUG)
[30] In Stock
SSA382F210BD
COIL,SOLENOID
Notes: FOR EEVD
[31] In Stock
RPC382F900
COIL ASSY, SOLENOID
Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image
RPC382F900
[32] In Stock
AHT201C184DA
COMPRESSOR ASSY
Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)
[33] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[34] In Stock
SSA941C351A
CUSHION,RUBBER
Notes: For Compressor - Sold individually
[35] In Stock
RPC541B001D
HEATER ASSY(CRANK)
RPC541B001D
[36] In Stock
RSA932C004
GASKET
RSA932C004
[37] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[38] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[39] Contact
RPC154D903
INSULATION,COMP
Contact
Notes: COMP UPPER
[40] Contact
RPC154D904
INSULATION,COMP
Contact
Notes: COMP BODY
[41] Contact
RPC154D900
INSULATION
Contact
Notes: OUTSIDE
[42] Contact
RPC154D901
INSULATION
Contact
Notes: OUTSIDE
[43] In Stock
RPC504A912
WIRING ASSY
Notes: FOR COMP. Show Image
RPC504A912
[44] In Stock
RCT505A005JB
PWB1 (MAIN)
Notes: PWB1, MUST CONFIRM SERVICE CODE. PLUGS INTO COMPRESSOR, FAN MOTOR, SOME SENSORS, REACTOR AND PWB2 -

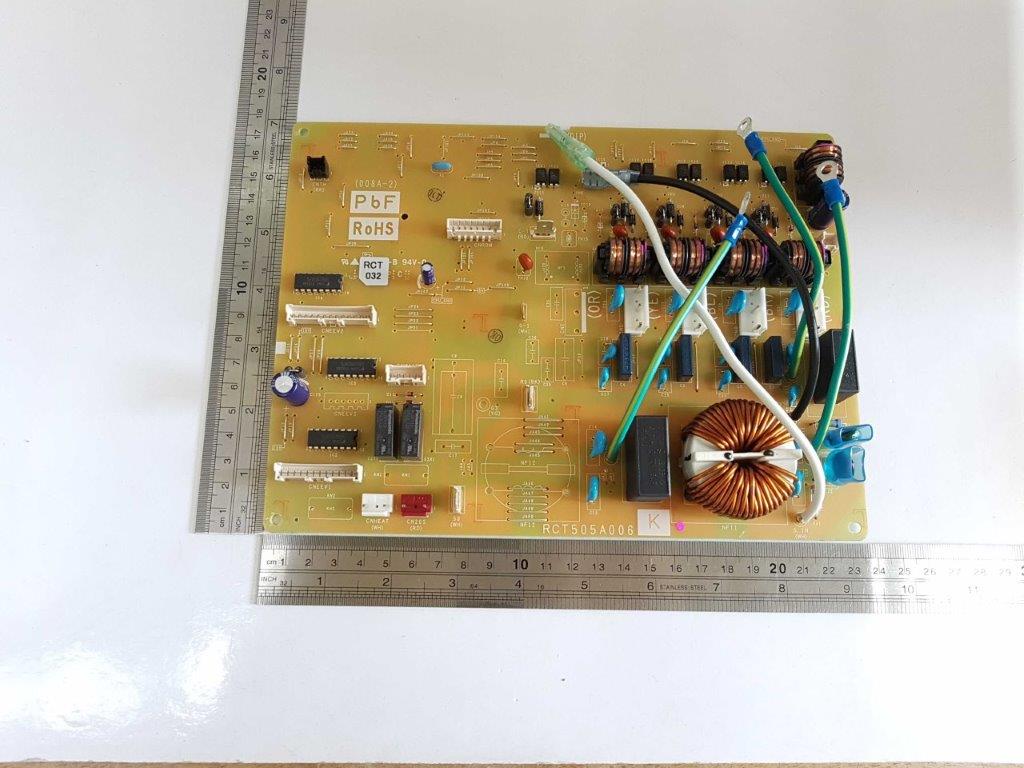

[45] In Stock
RCT505A006K
PWB ASSY (SUB)
Notes: PWB2, PWB2 SUB Show Image
RCT505A006K
[46] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: F 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[47] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[48] In Stock
RPC142A906
LID ASSY,CONTROL
[49] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[50] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2,3,4,5, T2 Show Image
SSA561B702B
[51] In Stock
SSA551A232C
SENSOR ASSY
Notes: TH1,2,3,4, 3 SENSORS ON 1 PLUG, 1 SENSOR ON OTHER PLUG. Show Image
SSA551A232C
[52] In Stock
SSA554B089
REACTOR
[53] In Stock
PSA941F001
SPRING LEAF
Notes: FOR TH1,4, 1pc ONLY Show Image
PSA941F001
[54] In Stock
RCJ941F001
SPRING
Notes: FOR TH3, LENGTH 2.5CM Show Image
RCJ941F001
[55] Contact
RWC011F017N
LABEL,MODEL NAME
Contact
Notes: !
