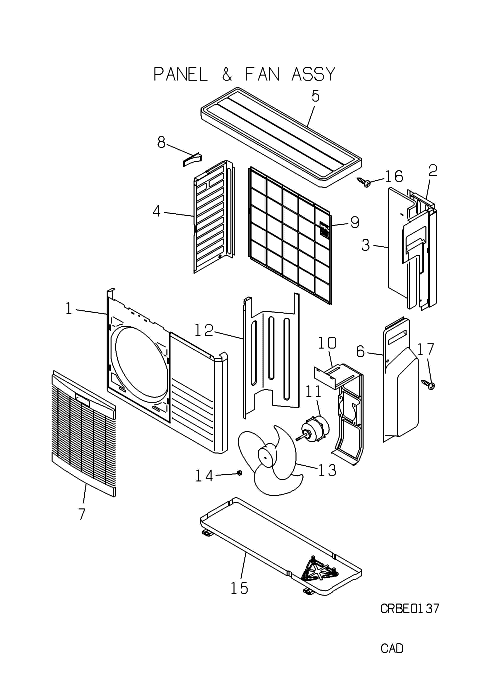

SCM68ZA PANEL AND FAN ASSY

SCM68ZA PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
RWC122A004A
PANEL ASSY, FRONT
[2-3] In Stock
RWC123A005B
PANEL SIDE
Show Image
RWC123A005B
[3] Contact
RPC154D803
INSULATION
Contact
[4] In Stock
RWC123A008
PANEL,SIDE(L)
[5] Out of Stock
RWC124A003A
PANEL TOP
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION
[6] In Stock
RWC132A006
LID CONTROL
[7] In Stock
RWC435A002
GRILLE AIR OUTLET
[8] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[9] In Stock
RWC131A004
GUARD ASSY
[10] In Stock
RWC116A041A
BRACKET
Notes: For Fan Motor
[11] In Stock
SSA511L023
MOTOR,AC
Show Image
SSA511L023
[12] Contact
RWC141A005
PLATE ASSY
Contact
[13] In Stock
SSA431B233
FAN PRPPE
[14] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[15] Contact
RWC111A003A
BASE ASSY
Contact
[16] Contact
SSA913D011
SCREW
Contact
Notes: 4X8, 1pc ONLY
[17] Contact
SSA913D011A
SCREW
Contact
Notes: 4X12, 1pc ONLY
