SCM68ZA HEAT EXCH. AND CONTROL

SCM68ZA HEAT EXCH. AND CONTROL

Available Parts

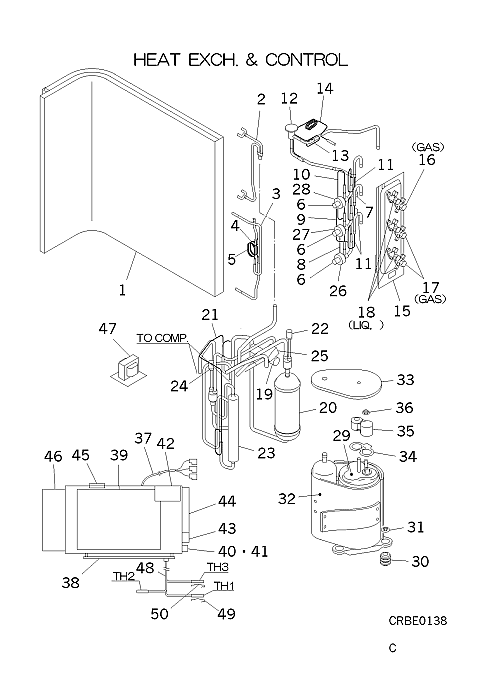

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RPC311A800 HEAT EXCH Contact   Contact
  • [1-5] RPC301A800 HEAT EXCH Contact   Contact
  • [2] RPC321A811 PIPING ASSY Contact   Contact
  • [3-5] RPC304A804 PIPING ASSY Contact   Contact
  • [4] RPC315B800 CAPILLARY Contact Notes: !D2.6XD4.0 L350   Contact
  • [5] RPC315B800A CAPILLARY Contact Notes: !D2.6XD4.0 L350   Contact
  • [6] SSA387F017D EXP V In Stock Notes: FEEDS INDOOR UNITS
  • [6-11] RPC304A807 PIPING Contact   Contact
  • [7] SSA315A252B DISTRIBUTOR In Stock Show Image
  • [7-10] RPC315A800 DISTRIBUTER Contact   Contact
  • [8] RPC315B806 CAPILLARY(1) Contact Notes: !D3.0XD4.0 L400   Contact
  • [9] RPC315B807 CAPILLARY(2) Contact Notes: !D3.0XD4.0 L400   Contact
  • [10] RPC315B808 CAPILLARY(3) Contact Notes: !D3.0XD4.0 L400   Contact
  • [11] RPC315B811 CAPILLARY Contact   Contact
  • [12] SSA387A051 EXP.VALVE In Stock Notes: OUTDOOR CONTROL VALVE
  • [12-14] RPC304A801 PIPING ASSY Contact   Contact
  • [13] RPC315B801 CAPILLARY Contact Notes: !D1.3XD2.5 L300   Contact
  • [14] RPC315B812 CAPILLARY Contact Notes: !D2.0XD3.2 L600   Contact
  • [15] RWC116A033 BLACKET Contact   Contact
  • [16] RPC381A801 VALVE SERVI Out of Stock Substitute: OUT OF PRODUCTION Notes: GAS
  • [17] RPC381A802 VALVE SERVI Out of Stock Substitute: OUT OF PRODUCTION Notes: GAS

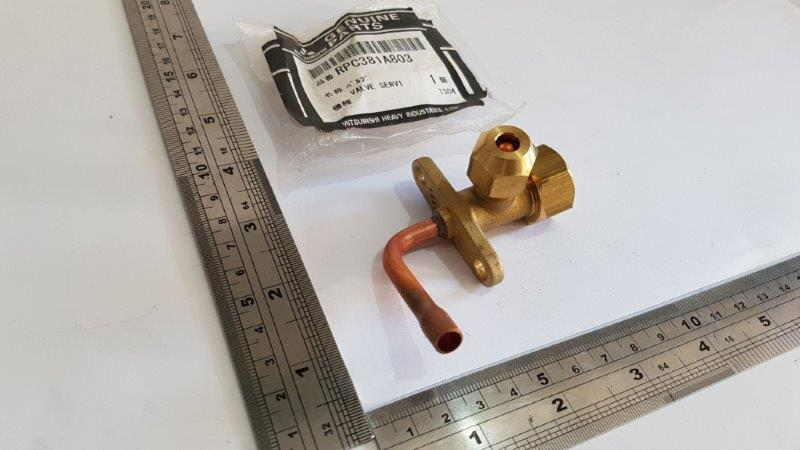

  • [18] RPC381A803 VALVE SERVI In Stock Notes: LIQ. Show Image
  • [19] SSA382C073 4 WAY VAL In Stock Show Image
  • [20] SSA351A190 ACCUMULATOR Contact   Contact
  • [20-22] RPC304A806 PIPING ASSY Contact   Contact
  • [21] RPC315B805 CAPILLARY Contact Notes: !D1.0XD2.0 L1000   Contact
  • [22] RPC327B001B SERVICE V Contact   Contact
  • [23] SSA325A023M PLATE SHELL Contact   Contact
  • [24] RPC327B001B SERVICE V Contact   Contact
  • [25] RPC382F700A COIL SOLENO In Stock Notes: 20S - 4WAY VALVE COIL, FOR 20S

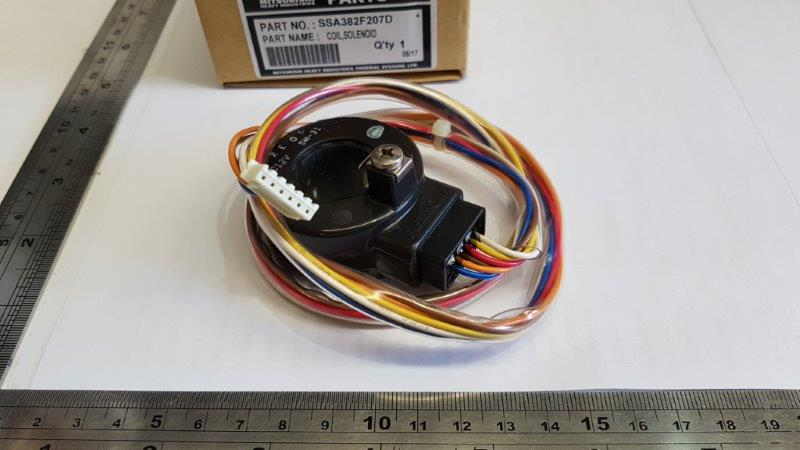

  • [26] SSA382F207D SOLENOID Out of Stock Substitute: OUT OF PRODUCTION Notes: EEV-A SOLENOID COIL, FOR EVA Show Image

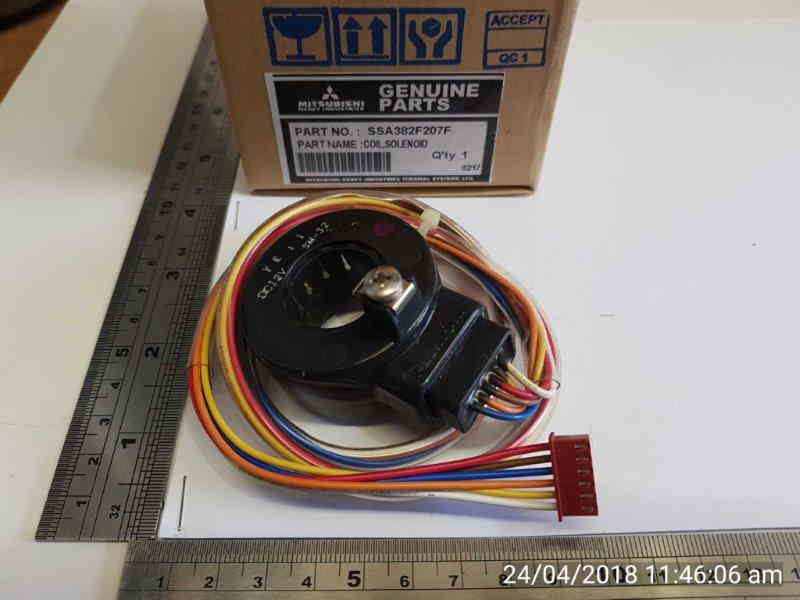

  • [27] SSA382F207F SOLENOID In Stock Notes: EEV-B SOLENOID COIL, FOR EVB Show Image
  • [28] SSA382F207B COIL SOLENO In Stock Notes: EEV-C SOLENOID COIL, FOR EVC Show Image
  • [29] AHT201A334AR COMPRESSOR Out of Stock Substitute: OUT OF PRODUCTION Notes: RM5516GAE97. COMPRESSORS CANNOT BE RETURNED, RM5516GA92 DAVID
  • [30] SSA941C114A CUSHION RUB Contact   Contact
  • [31] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [32] RPC154D800 INSULATION Contact   Contact
  • [33] RPC154D805 INSULATION Contact   Contact
  • [34] AHA932C002 GASKET In Stock Substitute: RM80087
  • [35] AHA947K002 COVER In Stock
  • [36] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [37] RPC504A711A HARNESS ASSY Contact Notes: FOR COMP.   Contact
  • [38] RPC505A700D PWB ASSY Out of Stock Notes: CPU / MAIN - LED LIGHTS, OUT OF PRODUCTION, PWB1
  • [39] RPC505A701A PWB In Stock Notes: POWER - CONTROLS FAN MOTOR, PWB3

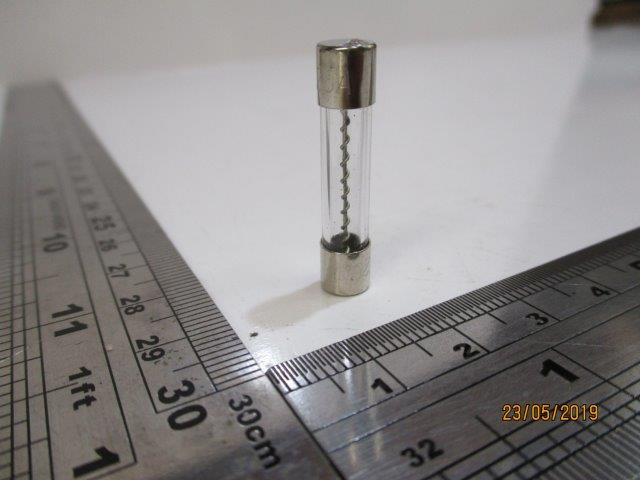

  • [40] SSA564A047A FUSE In Stock Notes: 25A Show Image
  • [41] SSA564B064 HOLDER In Stock Substitute: SSA564B044 Notes: LENGTH 6CM
  • [42] SSA552F421A CAPACITOR In Stock Notes: C2,C5 - 60MF - 150VAC Show Image
  • [43] SSA561B665 BLOCK TERMI In Stock Substitute: SSA561B211A Notes: T1, T1 Show Image
  • [44] SSA561B699 BLOCK TERMI In Stock Notes: T2
  • [45] SSA947B019 GROMMET Contact Notes: 16X8   Contact
  • [46] RPC501A801 CONTROL ASSY Out of Stock Substitute: OUT OF PRODUCTION Notes: CONTROL ASSY (RAD.) - POWER TRANSISTOR / INVERTER
  • [47] SSA554B078 REACTOR In Stock

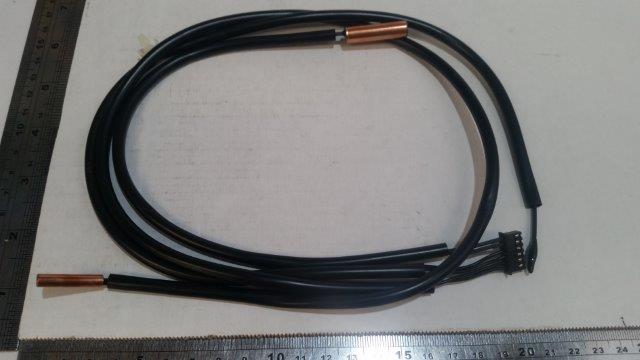

  • [48] RPC551A009D SENSOR In Stock Notes: TH1,TH2,TH3, TH1,TH2,TH3 Show Image
  • [49] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [50] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [51] RWA012A189 INSTRUCTION In Stock Show Image
  • [52] RPC011G800 LABEL,WIRING Contact   Contact
  • [53] RSA011F377C LABEL,MODEL NAME Contact   Contact
SKU: SCM68ZA HEAT EXCH. AND CONTROL Category:
