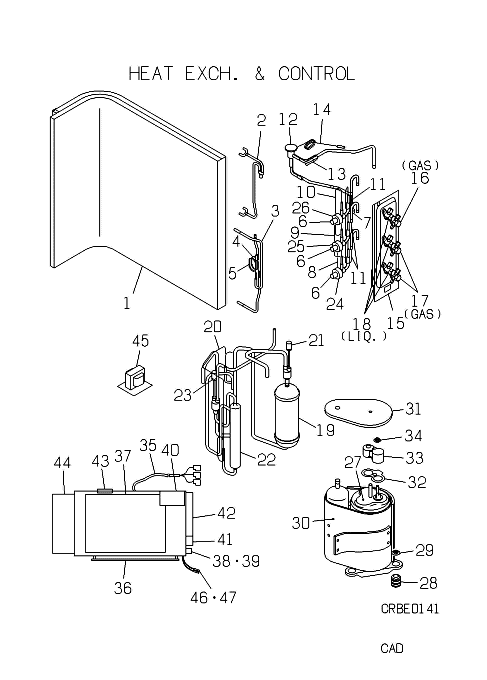

SCM68YA HEAT EXCH. AND CONTROL

SCM68YA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RPC311A800
HEAT EXCH
Contact
[1-5] Contact
RPC301A800
HEAT EXCH
Contact
[2] Contact
RPC321A811
PIPING ASSY
Contact
[3-5] Contact
RPC304A804
PIPING ASSY
Contact
[4] Contact
RPC315B800
CAPILLARY
Contact
Notes: !D2.6XD4.0 L350
[5] Contact
RPC315B800A
CAPILLARY
Contact
Notes: !D2.6XD4.0 L350
[6] In Stock
SSA387F017D
EXP V
Notes: FEEDS INDOOR UNITS
[6-11] Contact
RPC304A807
PIPING
Contact
[7] In Stock
SSA315A252B
DISTRIBUTOR
Show Image
SSA315A252B
[7-10] Contact
RPC315A800
DISTRIBUTER
Contact
[8] Contact
RPC315B806
CAPILLARY(1)
Contact
Notes: !D3.0XD4.0 L400
[9] Contact
RPC315B807
CAPILLARY(2)
Contact
Notes: !D3.0XD4.0 L400
[10] Contact
RPC315B808
CAPILLARY(3)
Contact
Notes: !D3.0XD4.0 L400
[11] Contact
RPC315B811
CAPILLARY
Contact
[12] In Stock
SSA387A051
EXP.VALVE
Notes: OUTDOOR CONTROL VALVE Show Image
SSA387A051
[12-14] Contact
RPC304A809
PIPING
Contact
[13] Contact
RPC315B801
CAPILLARY
Contact
Notes: !D1.3XD2.5 L300
[14] Contact
RPC315B813
CAPILLARY
Contact
Notes: !D2.0XD3.2 L600
[15] Contact
RWC116A033
BLACKET
Contact
[16] Out of Stock
RPC381A801
VALVE SERVI
Substitute: OUT OF PRODUCTION Notes: GAS
[17] Out of Stock
RPC381A802
VALVE SERVI
Substitute: OUT OF PRODUCTION Notes: GAS
[18] In Stock
RPC381A803
VALVE SERVI
Notes: LIQ. Show Image
RPC381A803
[19] Contact
SSA351A190
ACCUMULATOR
Contact
[19-21] Contact
RPC304A808
PIPING
Contact
[20] Contact
RPC315B805
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[21] Contact
RPC327B001B
SERVICE V
Contact
[22] Out of Stock
SSA325A023M
PLATE SHELL
[23] Contact
RPC327B001B
SERVICE V
Contact
[24] Out of Stock
SSA382F207D
SOLENOID
Substitute: OUT OF PRODUCTION Notes: FOR EVA, EEV-A SOLENOID COIL Show Image
SSA382F207D
[25] In Stock
SSA382F207F
SOLENOID
Notes: FOR EVB, EEV-B SOLENOID COIL Show Image
SSA382F207F
[26] In Stock
SSA382F207B
COIL SOLENOID
Notes: FOR EVC, EEV-C SOLENOID COIL Show Image
SSA382F207B
[27] Out of Stock
AHT201A334AR
COMPRESSOR
Substitute: OUT OF PRODUCTION Notes: RM5516GA92 DAVID, RM5516GAE97. COMPRESSORS CANNOT BE RETURNED
[28] Out of Stock
SSA941C114A
CUSHION RUB
[29] In Stock
SSA914C033
NUT
Notes: 1pc
[30] Out of Stock
RPC154D800
INSULATION
[31] Contact
RPC154D805
INSULATION
Contact
[32] In Stock
AHA932C002
GASKET
[33] In Stock
AHA947K002
COVER
[34] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[35] Contact
RPC504A711A
HARNESS ASSY
Contact
Notes: FOR COMP.
[36] In Stock
RPC505A700F
PWB ASSY
Notes: Replaces RPC505A700B, CPU. LED LIGHTS. PLEASE NOTE THE OTHER PWB's FOR THIS UNIT ARE OUT OF PRODUCTION

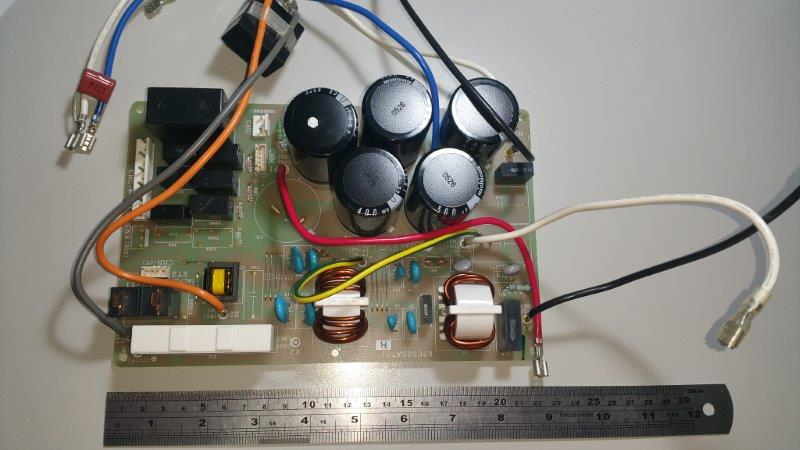

[37] Out of Stock
RPC505A701B
PWB
Substitute: OUT OF PRODUCTION Notes: PWB3, POWER (with capacitors on it) - PLUGS INTO FAN MOTOR Show Image
RPC505A701B
[38] In Stock
SSA564A047A
FUSE
Notes: 25A Show Image
SSA564A047A
[39] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044

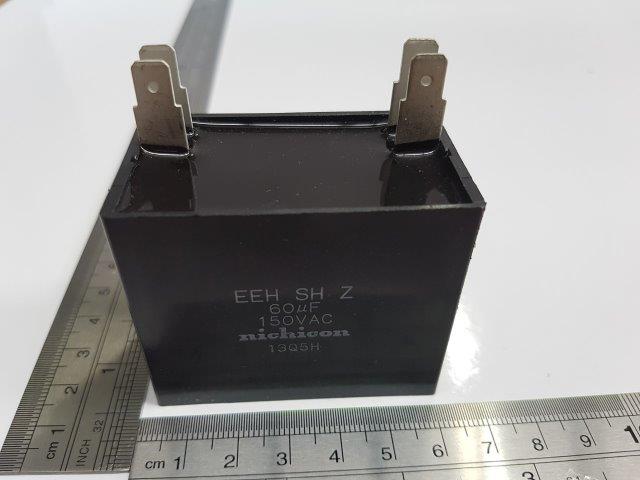

[40] Out of Stock
SSA552F421A
CAPACITOR
Notes: C2,C5‚  - 60MF - 150VAC Show Image
SSA552F421A
[41] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[42] In Stock
SSA561B699
BLOCK TERMI
Notes: T2
[43] Contact
SSA947B019
GROMMET
Contact
Notes: 16X8
[44] Out of Stock
RPC501A801
CONTROL ASSY
Substitute: OUT OF PRODUCTION Notes: CONTROL ASSY (RAD.) - POWER TRANSISTOR / INVERTER. Some refer to as a PWB
[45] In Stock
SSA554B078
REACTOR

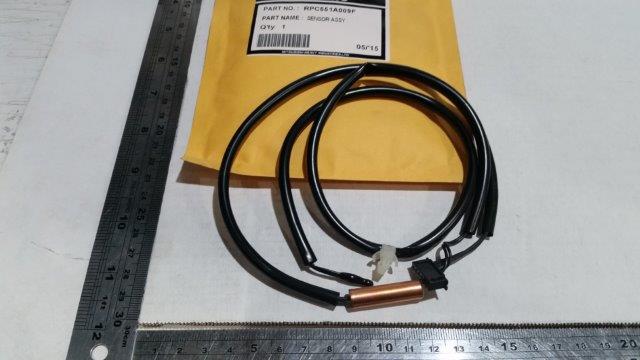

[46] Out of Stock
RPC551A009F
SENSOR
Substitute: OUT OF PRODUCTION Notes: TH2,TH3, TH2,TH3 - OUT OF PRODUCTION Show Image
RPC551A009F
[47] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[48] In Stock
RWA012A189
INSTRUCTION
Show Image
RWA012A189
[49] Contact
RPC011G800A
LABEL,WIRING
Contact
[50] Contact
RSA011F377D
LABEL,MODEL NAME
Contact
SKU: SCM68YA HEAT EXCH. AND CONTROL Category:
