SCM60ZS-W HEAT EXCH. AND CONTROL

SCM60ZS-W HEAT EXCH. AND CONTROL

Available Parts

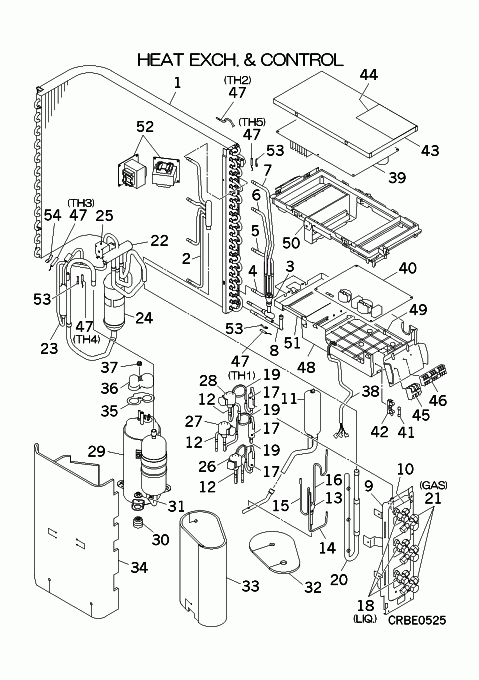

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-8] RPC301A864 HEAT EXCH ASSY(AIR Contact   Contact
  • [2] RPC315D870 HEADER ASSY,GAS Contact Notes: !   Contact
  • [3] SSA315A306AB DISTRIBUTOR Contact Notes: !   Contact
  • [3-7] RPC315A854 DISTRIBUTOR ASSY Contact   Contact
  • [4] RPC321B265 PIPE ASSY Contact Notes: !D2.8XD4.0 L100   Contact
  • [5] RPC321B267 PIPE ASSY Contact Notes: !D2.8XD4.0 L100   Contact
  • [6] RPC321B269 PIPE ASSY Contact Notes: !D2.8XD4.0 L100   Contact
  • [7] RPC321B271 PIPE ASSY Contact Notes: !D2.8XD4.0 L100   Contact
  • [8] RPC321B273 PIPE ASSY Contact Notes: !   Contact
  • [9] RPC116A877 BRACKET ASSY(VALVE Contact   Contact
  • [10] RPC116A871 BRACKET ASSY(VALVE Contact   Contact
  • [11] RPC352D864 RECEIVER ASSY Contact   Contact
  • [12] SSA387F078 VALVE, BODY(EXP) In Stock Notes: EEVA,EEVB,EEVC
  • [12-19] RPC304A941 PIPING ASSY(EXPAN) Contact   Contact
  • [13] SSA315A252B DISTRIBUTOR In Stock Notes: ! Show Image
  • [13-16] RPC315A853 DISTRIBUTOR ASSY Contact   Contact
  • [14] RPC315B874 CAPILLARY,SUB(A) Contact Notes: !D2.6XD4.0 L300   Contact
  • [15] RPC315B875 CAPILLARY,SUB(B) Contact Notes: !D2.6XD4.0 L300   Contact
  • [16] RPC315B876 CAPILLARY,SUB(C) Contact Notes: !D2.6XD4.0 L300   Contact
  • [17] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Notes: ! Show Image
  • [18] RPC381A852C VALVE SERVICE (1/4 In Stock Notes: LIQ. Show Image
  • [19] RPC315B877 CAPILLARY,SUB Contact Notes: !D2.6XD3.6 L300   Contact
  • [20-21] RPC315D865 HEADER ASSY,GAS Contact   Contact
  • [21] RPC381A854B VALVE,SERVICE(3/8 In Stock Notes: GAS
  • [22] SSA382C098 VALVE S(4WAY) In Stock Notes: REVERSING VALVE, BODY ONLY, 20S Show Image
  • [23] RPC304A943 PIPING ASSY(DISCH) Contact   Contact
  • [24] AHT351A001 ACCUMULATOR In Stock Show Image
  • [25] RSA382F013BC COIL ASSY,SOLENOID In Stock Notes: REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - COIL ONLY, FOR 20S
  • [26] SSA382F210C COIL,SOLENO In Stock Notes: FOR EEVA - 5 WIRES - WHITE PLUG, FOR EEVA
  • [27] SSA382F210D COIL,SOLENO In Stock Notes: FOR EEVB - 5 WIRES - RED PLUG, FOR EEVB
  • [28] SSA382F210BC COIL,SOLENOID In Stock Notes: FOR EEVC, FOR EEVC
  • [29] AHT201C134B COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RMT5113SBE1
  • [30] SSA941C346A CUSHION,RUBBER In Stock Notes: 1PC, FOR COMPRESSOR Show Image
  • [31] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [32] RPC154D905 INSULATION,COMP Contact   Contact
  • [33] RPC154D874A INSULATION,COMP Contact   Contact
  • [34] RPC154D875A INSULATION Contact   Contact
  • [35] RSA932C004 GASKET In Stock Show Image
  • [36] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [37] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [38] RPC504A200A WIRING ASSY In Stock Notes: FOR COMP.
  • [39] RCR505A110CK PWB MAIN In Stock Notes: PWB1
  • [40] RCT505A006BC PWB ASSY(SUB) Contact Notes: PWB2   Contact
  • [41] SSA564A136A FUSE(CURRENT) In Stock Notes: F 20A - 20 AMP FUSE, F4 20A Show Image
  • [42] SSA564B088 HOLDER,FUSE In Stock Show Image
  • [43-44] RPC142A203K LID ASSY,CONTROL In Stock
  • [44] RPC011G200K LABEL,WIRING Contact Notes: !   Contact
  • [45] SSA561B665 BLOCK TERMI In Stock Substitute: SSA561B211A Notes: T1, TB1 Show Image
  • [46] SSA561B699 BLOCK TERMI In Stock Notes: TB2
  • [47] SSA551A232R SENSOR ASSY In Stock Notes: TH1,2,3,4,5
  • [48] RPC142A205A BOX ASSY,CONTROL Contact   Contact
  • [49] RPC142A905 BOX,CONTROL(C) Contact   Contact
  • [50] RPC142A206 BOX ASSY,CONTROL(A Contact   Contact
  • [51] RPC132A202 COVER,CONTROL Contact   Contact
  • [52] SSA554B114 REACTOR In Stock
  • [53] RKJ941F001A SPRING,LEAF Contact Notes: FOR TH1,4,5   Contact
  • [54] RCJ941F001 SPRING In Stock Notes: FOR TH3
  • [55] RWC011F041C LABEL,MODEL NAME Contact Notes: !   Contact
SKU: SCM60ZS-W HEAT EXCH. AND CONTROL Category:
