SCM60ZM-S HEAT EXCH. AND CONTROL

SCM60ZM-S HEAT EXCH. AND CONTROL

Available Parts

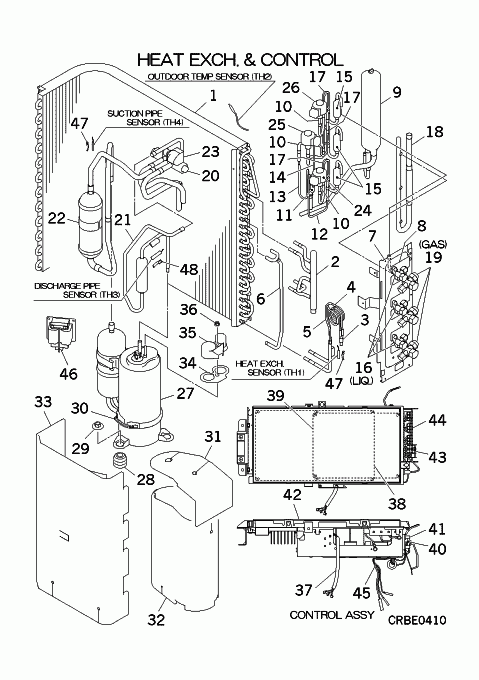

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-6] RPC301A858 HEAT EXCH ASSY(AIR In Stock
  • [2] RPC315D863 HEADER ASSY,GAS Contact   Contact
  • [3-5] RPC321B047A PIPE ASSY Contact   Contact
  • [4] RPC315B870 CAPILLARY Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [5] RPC315B871 CAPILLARY Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [6] RPC321A890 PIPE ASSY Contact Notes: !   Contact
  • [7] RPC116A870 BRACKET ASSY(VALVE Contact   Contact
  • [8] RPC116A871 BRACKET ASSY(VALVE Contact   Contact
  • [9] RPC352D860 RECEIVER ASSY Contact   Contact
  • [10] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [10-17] RPC304A924 PIPING ASSY(EXPAN) Contact   Contact
  • [11] SSA315A252B DISTRIBUTOR In Stock Show Image
  • [11-14] RPC315A850 DISTRIBUTOR ASSY In Stock Show Image
  • [12] RPC315B856 CAPILLARY,SUB(A) Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [13] RPC315B857 CAPILLARY,SUB(B) Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [14] RPC315B858 CAPILLARY,SUB(C) Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [15] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [16] RPC381A852C VALVE SERVICE (1/4 In Stock Notes: LIQ. Show Image
  • [17] RCN315B001 CAPILLARY,SUB Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [18-19] RPC315D865 HEADER ASSY,GAS Contact   Contact
  • [19] RPC381A854B VALVE,SERVICE(3/8 In Stock Notes: LENGTH 7.5CM, GAS Show Image
  • [20] SSA382C098 VALVE S(4WAY) In Stock Notes: REVERSING VALVE, BODY ONLY, 20S Show Image
  • [21] RPC304A920 PIPING ASSY(DISCH) Contact   Contact
  • [22] AHT351A001 ACCUMULATOR In Stock Show Image

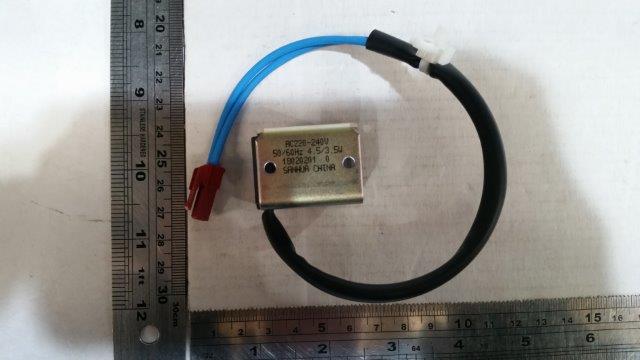

  • [23] RSA382F013BA COIL ASSY,SOLENOID In Stock Notes: FOR 20S Show Image
  • [24] SSA382F210C COIL,SOLENOID In Stock Notes: FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM, FOR EEV Show Image
  • [25] SSA382F210D COIL,SOLENOID In Stock Notes: FOR EEVB - 5 WIRES - RED PLUG, FOR EEVB Show Image
  • [26] SSA382F210BC COIL,SOLENOID In Stock Notes: FOR EEVC, FOR EEVC
  • [27] AHT201C184DA COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***(RMT5118MDE2), RMT5118MDE2
  • [28] SSA941C346 CUSHION,RUBBER Contact   Contact
  • [29] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [30] RPC541B001F HEATER ASSY(CRANK) Contact   Contact
  • [31] RPC154D872 INSULATION,COMP Contact Notes: COMP UPPER   Contact
  • [32] RPC154D873A INSULATION,COMP Contact Notes: COMP BODY   Contact
  • [33] RPC154D851A INSULATION Contact Notes: OUTSIDE, OUTSIDE   Contact
  • [34] RSA932C004 GASKET In Stock Show Image
  • [35] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [36] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [37] RPC504A912 WIRING ASSY In Stock Notes: FOR COMP., FOR COMP. Show Image
  • [38] RCT505A005JH PWB ASSY MAIN In Stock Notes: PWB1
  • [39] RCT505A006AF PWB (SUB) In Stock Notes: PWB2
  • [40] SSA564A136A FUSE(CURRENT) In Stock Notes: F 20A - 20 AMP FUSE, 20A Show Image
  • [41] SSA564B088 HOLDER,FUSE Out of Stock Show Image
  • [42] RPC142A906 LID ASSY,CONTROL Contact   Contact
  • [43] SSA561B665 BLOCK TERMI In Stock Substitute: SSA561B211A Notes: T1, T1 Show Image
  • [44] SSA561B699 BLOCK TERMI In Stock Notes: T2
  • [45] SSA551A232D SENSOR ASSY In Stock Notes: TH1,2,3,4, TH1,2,3,4 Show Image
  • [46] SSA554B113 REACTOR In Stock Show Image
  • [47] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Show Image
  • [48] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [49] RWC011F017BD LABEL,MODEL NAME Contact   Contact
SKU: SCM60ZM-S HEAT EXCH. AND CONTROL Category:
