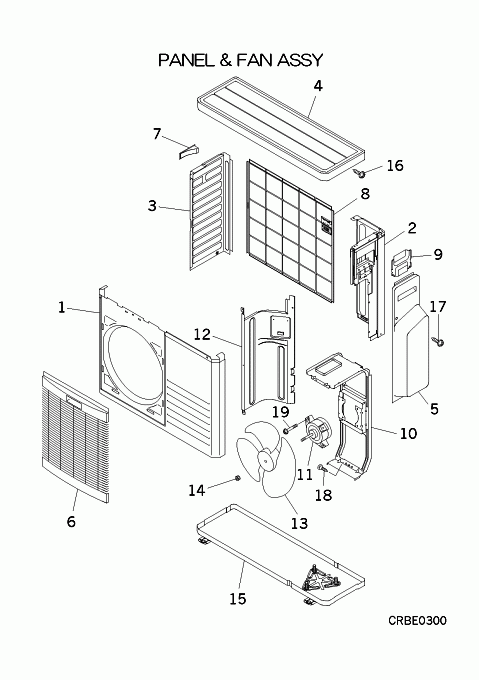

SCM60ZJ-S1 PANEL AND FAN ASSY

SCM60ZJ-S1 PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RWC122A004 PANEL ASSY,FRONT In Stock Substitute: RWC122A004A
  • [2] RWC123A005H PANEL ASSY,SIDE(R) In Stock
  • [3] RWC123A008 PANEL,SIDE(L) In Stock
  • [4] RWC124A005 TOP PANEL In Stock
  • [5] RWC132A006 LID CONTROL In Stock
  • [6] RWC435A002 GRILLE AIR OUTLET In Stock
  • [7] SSA944B036B HANDLE In Stock Notes: LENGTH 9.7CM Show Image
  • [8] RWC131A004 GUARD ASSY In Stock
  • [9] RPC132A850 COVER,TERMINAL In Stock Show Image
  • [10] RWC116A041A BRACKET In Stock
  • [11] SSA512T061B MOTOR DC In Stock Show Image
  • [12] RPC141A851 PLATE,BAFFLE In Stock
  • [13] SSA431B232 PROPELLER In Stock
  • [14] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [15] RWC111A005M BASE ASSY In Stock
  • [16] SSA913A034F SCREW,TAP In Stock Notes: 1PC ONLY, 4X8, 4X8 Show Image
  • [17] SSA913A034J SCREW,TAP In Stock Notes: 1PC ONLY/ LENGTH 1.5CM, 4X12
  • [18] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [19] SSA913C031 SCREW,TAP AND WASHER In Stock Notes: 1PC ONLY/ LENGTH 2.7CM Show Image
