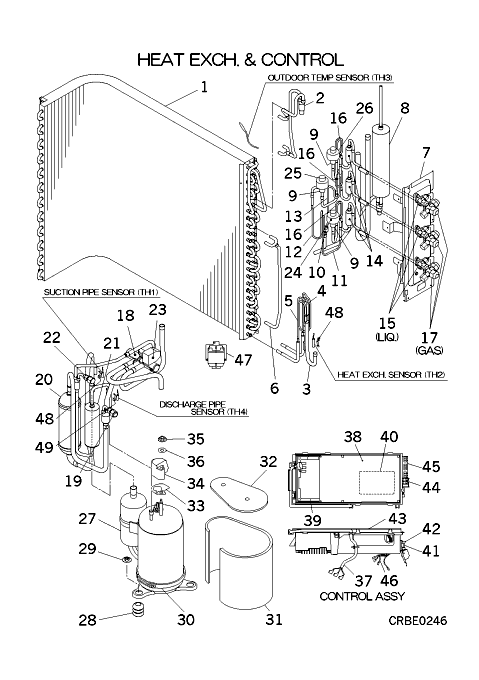

SCM60ZF-S HEAT EXCH. AND CONTROL

SCM60ZF-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] In Stock
RPC301A851
HEAT EXCH ASSY(AIR)
[2] Contact
RPC321A889
PIPING ASSY
Contact
Notes: !
[3-5] Contact
RPC321A888
PIPE ASSY
Contact
[4] Contact
RPC315B850
CAPILLARY
Contact
Notes: !D2.6XD4.0 L500
[5] Contact
RPC315B851
CAPILLARY
Contact
Notes: !D2.6XD4.0 L500
[6] Contact
RPC321A890
PIPE ASSY
Contact
Notes: !
[7] Contact
RPC116A861
BRACKET ASSY
Contact
[8] Contact
RPC352D853
RECEIVER ASSY
Contact
[9] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[9-16] Contact
RPC304A860
PIPING ASSY(EXPAN)
Contact
[10] In Stock
SSA315A252B
DISTRIBUTOR
Show Image
SSA315A252B
[10-13] In Stock
RPC315A850
DISTRIBUTOR ASSY
Show Image
RPC315A850
[11] Contact
RPC315B856
CAPILLARY,SUB(A)
Contact
Notes: !D2.6XD4.0 L300
[12] Contact
RPC315B857
CAPILLARY,SUB(B)
Contact
Notes: !D2.6XD4.0 L300
[13] Contact
RPC315B858
CAPILLARY,SUB(C)
Contact
Notes: !D2.6XD4.0 L300
[14] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[15] In Stock
RPC381A852
VALVE,SERVICE(1/4"
Notes: LIQ. Show Image
RPC381A852
[16] Contact
RCN315B001
CAPILLARY,SUB
Contact
Notes: !D2.6XD4.0 L300
[17] In Stock
RPC381A854
VALVE,SERVICE (3/8")
Notes: GAS Show Image
RPC381A854
[18] In Stock
SSA382C068
4 WAY VALVE
Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image
SSA382C068
[19] Contact
RPC327B850A
VALVE ASSY SERVICE
Contact
[20] In Stock
AHT351A001
ACCUMULATOR
Show Image
AHT351A001
[21] Contact
RPC325A852
PIPE,SHELL
Contact
[22] Contact
RPC327B850A
VALVE ASSY SERVICE
Contact
[23] Out of Stock
RPC382F801
COIL ASSY,SOLENOID
Substitute: OUT OF PRODUCTION Notes: FOR 20S
[24] In Stock
SSA382F210C
COIL,SOLENOID
Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image
SSA382F210C
[25] In Stock
SSA382F210D
COIL,SOLENOID
Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image
SSA382F210D
[26] In Stock
SSA382F210F
COIL SOLENOID
Notes: FOR EEVC, EEVC - 5 wires
[27] In Stock
PCA201A048C
COMPRESSOR
Notes: TNB220FLBMT1, ***COMPRESSORS CANNOT BE RETURNED***
[28] Contact
PCA941C011
CUSHION RU
Contact
[29] In Stock
SSA914C033
NUT
Notes: 1pc
[30] Out of Stock

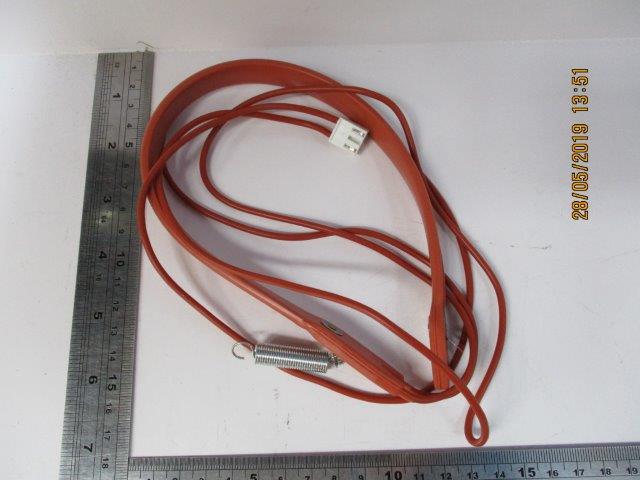

RPC541B001A
HEATER ASSY (CRANK)
Show Image
RPC541B001A
[31] Contact
RPC154D852
INSULATION,COMP
Contact
Notes: SIDE
[32] In Stock
RPC154D858
INSULATION,COMP(B)
Notes: UPPER Show Image
RPC154D858
[33] In Stock
PCA932C005A
GASKET COVER
Show Image
PCA932C005A
[34] Out of Stock
PCA947K005
COVER TERM
Substitute: OUT OF PRODUCTION Show Image
PCA947K005
[35] Contact
PCA914C001
NUT FLANG
Contact
Notes: 1pc
[36] Contact
PCA915H002
WASHER
Contact
Notes: 1pc ONLY
[37] In Stock
RPC504A887
WIRING ASSY
Notes: FOR COMPRESSOR Show Image
RPC504A887
[38] In Stock
RPC505A860B
PWB ASSY MAIN
Notes: PWB1
[39] In Stock
RPC505A861C
PWB (POWER)
Notes: PWB2, ***THE PCB THIS PLUGS INTO IS NO LONGER AVAILABLE(EXCLUDES SCM40ZG-S,SCM60ZF-S,SCM80ZF-S). ***Controls the compressor. Aka INVERTER aka PWB2 aka IPM (HEAT SINK ATTACHED). Image is of the underside of PWB. Show Image
RPC505A861C
[40] In Stock
RPC505A862
PWB ASSY (CAPACITOR)
Notes: PWB3, PWB3 - AKA CAPACITOR PWB Show Image
RPC505A862
[41] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[42] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044
[43] In Stock
RPC142A856
Lid Assy Control
[44] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[45] In Stock
SSA561B699
BLOCK TERMI
Notes: T2
[46] In Stock

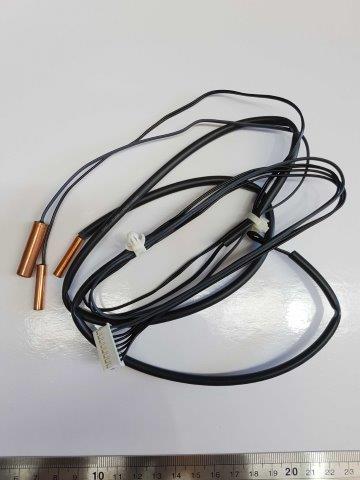

SSA551A195A
SENSOR
Notes: TH1,2,3,4, Replaces SSA551A199A - TH1,2,3,4/ LENGTH 94.5CM Show Image
SSA551A195A
[47] In Stock
SSA554B113
REACTOR
Show Image
SSA554B113
[48] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[49] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[50] Contact
RWA012A241
MANUAL,INSTRUCTION
Contact
[51] Contact
RWC011F009A
LABEL,MODEL NAME
Contact
SKU: SCM60ZF-S HEAT EXCH. AND CONTROL Category:
