SCM48ZG-S PANEL AND FAN ASSY

SCM48ZG-S PANEL AND FAN ASSY

Available Parts

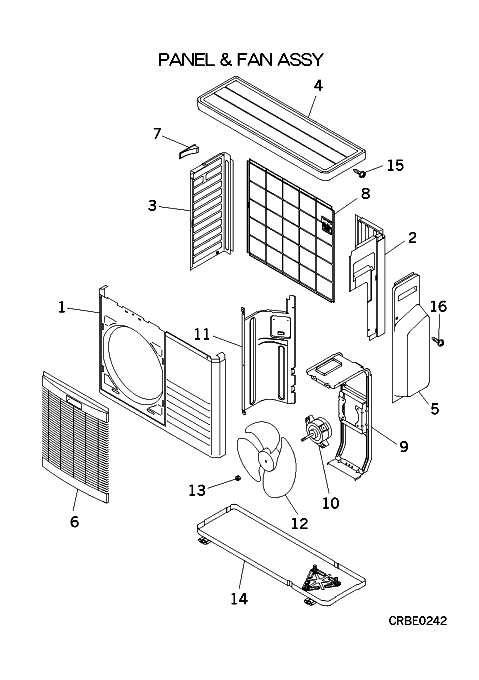

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [2] RWC123A005D PANEL ASSY, Contact Substitute: OUT OF PRODUCTION   Contact
  • [4] RWC124A003B PANEL,TOP In Stock Substitute: RWC124A005
  • [6] RWC435A002 GRILLE AIR OUTLET In Stock
  • [7] SSA944B036B HANDLE In Stock Notes: LENGTH 9.7CM Show Image
  • [8] RWC131A004 GUARD ASSY In Stock
  • [10] SSA512T061B MOTOR DC In Stock Show Image
  • [11] RPC141A851 PLATE,BAFFLE In Stock
  • [13] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [14] RWC111A003B BASE ASSY Contact   Contact
  • [16] SSA913A034C SCREW In Stock Notes: 1PC ONLY, 4X12
SKU: SCM48ZG-S PANEL AND FAN ASSY Category:
