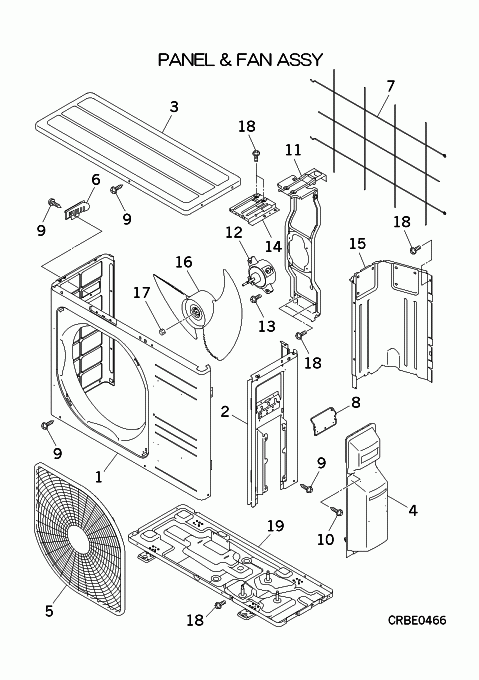

SCM45ZS-W PANEL AND FAN ASSY

SCM45ZS-W PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCV122A005C
PANEL FRONT
[2] In Stock
RPC123A200
PANEL ASSY,SIDE(R)
[3] In Stock
RCV124A003
PANEL, TOP
[4] In Stock
RPC132A200
COVER ASSY,SERVICE
[5] In Stock
RCV435A002
GRILLE, AIR OUTLET
Notes: AIR OUTLET GRILLE / FAN GUARD
[6] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[7] In Stock
RCV131A001
GUARD,FIN
[8] Contact
RPC142A200
COVER(TB)
Contact
[9] Contact
SSA913A034H
SCREW,TAP
Contact
Notes: 4X8, 1pc ONLY
[10] In Stock
SSA913A034L
SCREW,TAP
Notes: 4X12, 1pc ONLY
[11] In Stock
RCV116A006
BRACKET ASSY
Notes: mounting Bracket for Fan Motor
[12] In Stock
SSA512T094
MOTOR,DC
Notes: CONDENSER FAN MOTOR. HAS WIRING HARNESS ATTACHED.
[13] In Stock
SSA913C031
SCREW,TAP & WASHER
Notes: 1pc ONLY/ LENGTH 2.7CM Show Image
SSA913C031
[14] In Stock
RCV116A003
BRACKET,MOTOR(U)
Show Image
RCV116A003
[15] Contact
RPC141A200
PLATE ASSY,BAFFLE
Contact
[16] In Stock
SSA431B253
PROPELLER
Notes: OUTDOOR FAN BLADE
[17] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[18] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[19] In Stock
RCV111A001
BASE ASSY
SKU: SCM45ZS-W PANEL AND FAN ASSY Category:
