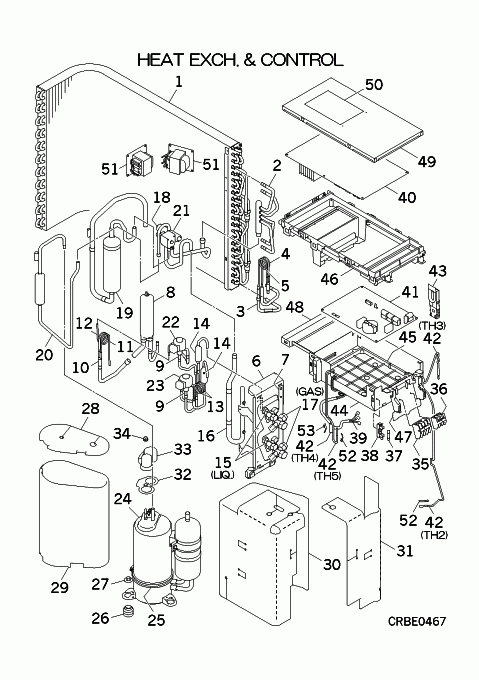

SCM45ZS-S HEAT EXCH. AND CONTROL

SCM45ZS-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] In Stock
RPC301A200
HEAT EXCH ASSY(AIR)
[2] Contact
RPC315D200
HEADER ASSY,GAS
Contact
[3-5] Contact
RPC321B176
PIPE ASSY
Contact
[4] Contact
RPC315B200
CAPILLARY
Contact
[5] Contact
RPC315B200A
CAPILLARY
Contact
[6] Contact
RPC116A200
BRACKET ASSY(VALVE
Contact
[7] Contact
RPC116A205
BRACKET ASSY(VALVE
Contact
[8] Contact
RPC352D200
RECEIVER ASSY
Contact
[9] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: 'BODY' ONLY. Does NOT include coil
[9-15] Contact
RPC304A201
PIPING ASSY(EXPAN)
Contact
[10-12] Contact
RPC321B196
PIPE ASSY
Contact
[11] Contact
RPC315B200
CAPILLARY
Contact
[12] Contact
RPC315B201
CAPILLARY
Contact
[13] Contact
RPC315B201
CAPILLARY
Contact
[14] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[15] In Stock
RPC381A852C
VALVE SERVICE (1/4
Notes: LIQ. Show Image
RPC381A852C
[16-17] Contact
RPC315D202
HEADER ASSY,GAS
Contact
[17] In Stock
RPC381A854B
VALVE,SERVICE(3/8"
Notes: GAS, LENGTH 7.5CM Show Image
RPC381A854B
[18] In Stock
SSA382C097
4 WAY VALVE
Notes: Reversing Valve Body - Body only
[19] Contact
RPC304A203
PIPING ASSY(SUCTIO
Contact
[20] Contact
RPC304A204
PIPING ASSY(DISCH)
Contact
[21] In Stock
RSA382F013AP
COIL ASSSY SOLENOID
Notes: Reversing valve solenoid coil - blue wiring harness, red plug Show Image
RSA382F013AP
[22] In Stock
SSA382F210BL
COIL,SOLENOID
Notes: LENGTH 39.5CM Show Image
SSA382F210BL
[23] In Stock
SSA382F210D
COIL,SOLENOID
Notes: FOR EEVB - 5 WIRES - RED PLUG Show Image
SSA382F210D
[24] In Stock
AHT201C114FA
COMPRESSOR ASSY
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[25] Contact
RPC541B001H
HEATER ASSY(CRANK)
Contact
[26] In Stock
SSA941C346A
CUSHION,RUBBER
Notes: 1pc, FOR COMPRESSOR Show Image
SSA941C346A
[27] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[28] Contact
RPC154D200
INSULATION,COMP
Contact
[29] Contact
RPC154D201
INSULATION,COMP
Contact
[30] Contact
RPC154D202
INSULATION
Contact
[31] Contact
RPC154D203
INSULATION
Contact
[32] In Stock
RSA932C004
GASKET
Show Image
RSA932C004
[33] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[34] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[35] In Stock
SSA561B723C
BLOCK,TERMINAL
Show Image
SSA561B723C
[36] In Stock
SSA561B675A
BLOCK,TERMI
Show Image
SSA561B675A
[37] In Stock
SSA564A136
FUSE
[38] In Stock
SSA564B088
HOLDER,FUSE
Show Image
SSA564B088
[39] In Stock
RPC504A200
WIRING ASSY
Notes: WIRING HARNESS FOR COMPRESSOR/ LENGTH 76CM Show Image
RPC504A200
[40] In Stock
RCR505A100CB
PWB MAIN
Show Image
RCR505A100CB
[41] In Stock

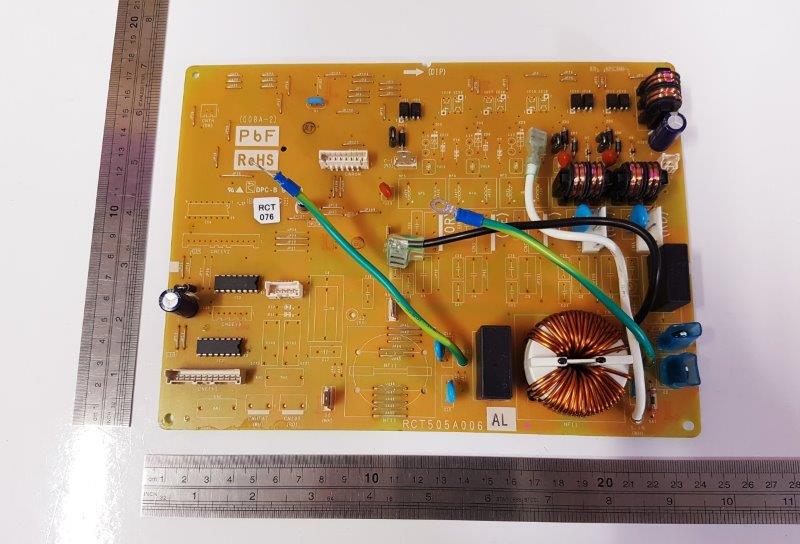

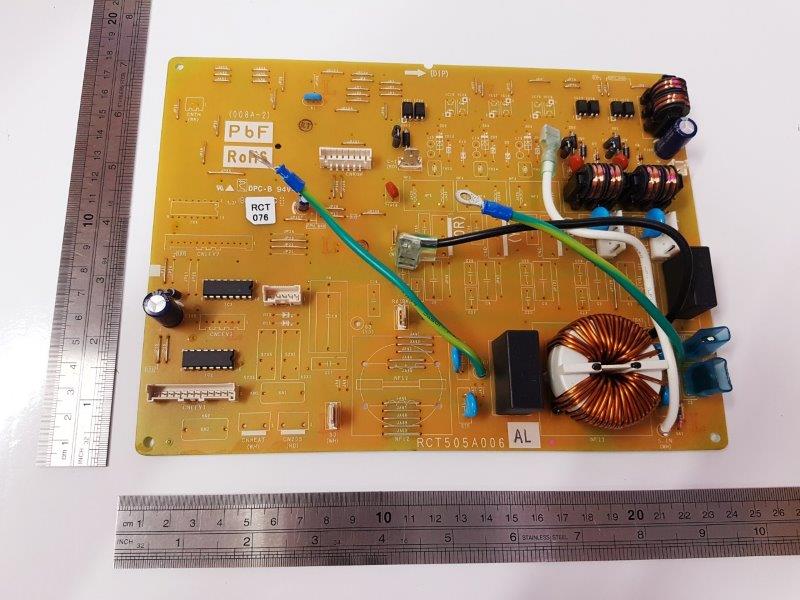

RCT505A006AL
PWB ASSY(SUB)
[42] In Stock
SSA551A232F
SENSOR ASSY
Show Image
SSA551A232F
[43] In Stock
RCV129A001A
HOLDER,SENSOR
Show Image
RCV129A001A
[44] Contact
RPC142A205
BOX ASSY,CONTROL
Contact
[45] Contact
RPC142A905
BOX,CONTROL(C)
Contact
[46] Contact
RPC142A201
BOX,CONTROL(A)
Contact
[47] Contact
RPC116A209
BRACKET(TB)
Contact
[48] Contact
RPC132A202
COVER,CONTROL
Contact
[49-50] Contact
RPC142A203
LID ASSY,CONTROL
Contact
[50] Contact
RPC011G200
LABEL,WIRING
Contact
[51] In Stock
SSA554B119
REACTOR
Show Image
SSA554B119
[52] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[53] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[54] Contact
RWC011F022A
LABEL,MODEL NAME
Contact
