SCM45ZD-S HEAT EXCH. AND CONTROL

Name: SCM45ZD-S HEAT EXCH. AND CONTROL
SKU: SCM45ZD-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM45ZD-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

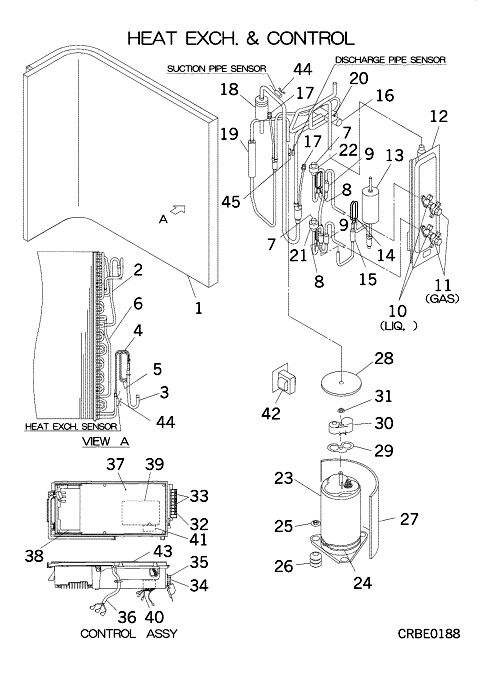

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] In Stock

RPC301A851

HEAT EXCH ASSY(AIR)

[2] Contact

RPC321A889

PIPING ASSY

Contact

Notes: !

[2-5] Contact

RPC321A888

PIPE ASSY

Contact

[4] Contact

RPC315B850

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B851

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[7-10] Contact

RPC304A852

PIPING ASSY

Contact

[8] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[11] In Stock

RCP381A002A

VALVE,SERVI

Notes: GAS Show Image

[12] Contact

RPC116A855

BRACKET ASSY

Contact

[13] Contact

RPC352D852

RECEIVER

Contact

[13-15] Contact

RPC352D851

RECEIVER AS

Contact

[14] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[15] Contact

SSA325A036

PIPE,SHELL

Contact

[16] In Stock

SSA382C080

VALVE,S(4WAY)

Notes: 20S, 20S BODY Show Image

[17] Contact

RPC327B850A

VALVE ASSY SERVICE

Contact

[18] Contact

SSA357A027

STRAINER

Contact

[19] Contact

SSA325A001CA

PIPE,SHELL

Contact

[20] Contact

RPC382F700C

COIL ASSY,S

Contact

Notes: FOR 20S

[21] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[22] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[23] In Stock

RSA201A001A

COMPRESSOR

Notes: 5CS102XFD, ***COMPRESSORS CANNOT BE RETURNED***

[24] Contact

RPC541B001

HEATER ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[25] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[26] In Stock

SSA941C241

CUSION

Show Image

[27] Contact

RPC154D856

INSULATION,

Contact

Notes: SIDE

[28] Contact

RPC154D855

INSULATION,

Contact

Notes: UPPER

[29] In Stock

RSA932C001

GASKET,COVE

Show Image

[30] Contact

RSA947K002

COVER,TERMI

Contact

[31] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[32] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[33] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[34] In Stock

SSA564A106A

FUSE(CURREN

Notes: F 15A Show Image

[35] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[36] In Stock

RPC504A862

WIRING ASSY

Notes: FOR COMPRESSOR Show Image

[37] In Stock

RPC505A850

PWB MAIN

Notes: PCB1

[38] In Stock

RPC505A851

PWB POWER

Notes: PCB2, INVERTER

[39] In Stock

RPC505A852

PWB CAPACITOR

Notes: PCB3, PCB3 - CAPACITOR

[40] In Stock

SSA551A195

SENSOR TEMP

Notes: Replaces SSA551A199 Show Image

[41] Contact

RPC552A001A

CAPACITOR,A

Contact

Notes: CFO 20MF 500V

[42] In Stock

SSA554B079

REACTOR

Show Image

[43] In Stock

RPC142A856

Lid Assy Control

[44] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[45] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[46] Contact

RWA012A226

MANUAL,INST

Contact

[47] Contact

RSA011F397A

LABEL,MODEL NAME

Contact
