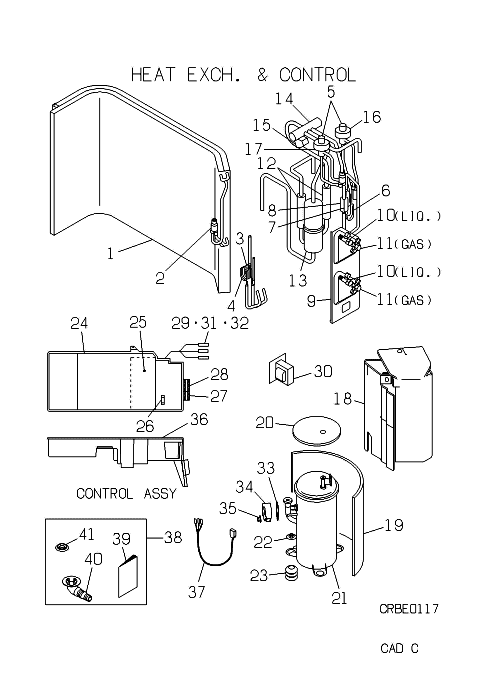

SCM45ZA HEAT EXCH. AND CONTROL

SCM45ZA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCM311A001
HEAT EXCH
Contact
[1-4] Contact
RPC301A600
HEAT EXCH
Contact
[2] Contact
RPC304A607
PIPING
Contact
[3] Contact
RPC315B602
CAPILLARY
Contact
Notes: !D1.6XD3.2 L300
[3-4] Contact
RPC304A605
PIPING
Contact
[4] Contact
RPC315B602A
CAPILLARY
Contact
Notes: !D1.6XD3.2 L300
[5] In Stock
SSA387F017B
EXP,V
Show Image
SSA387F017B
[5-8] Contact
RPC304A604
PIPING
Contact
[6] Contact
RPC315B600
CAPILLARY
Contact
Notes: !D2.6XD4.0 L250
[7] Contact
RPC315B603
CAPILLARY
Contact
Notes: !D2.6XD4.0 L250
[8] In Stock
SSA357A005J
STRAINER
Show Image
SSA357A005J
[9] Contact
RPC116A600
BRACKET V
Contact
[10] In Stock
RCK381A200C
VALVE,SERVI
Notes: LIQ. Show Image
RCK381A200C
[11] Out of Stock
RCK381A201C
VALVE,SERVI
Substitute: OUT OF PRODUCTION Notes: GAS
[12] Contact
SSA325A001BH
MUFFLER
Contact
[13] Contact
SSA351A102A
ACUMULATOR
Contact
[14] Out of Stock
SSA382C073
4 WAY VAL
Substitute: OUT OF PRODUCTION Show Image
SSA382C073
[15] In Stock
RCD382F007W
SOLENOID
Show Image
RCD382F007W
[16] In Stock
RCM382F001B
SOLENOID
Notes: FOR EVA, eva

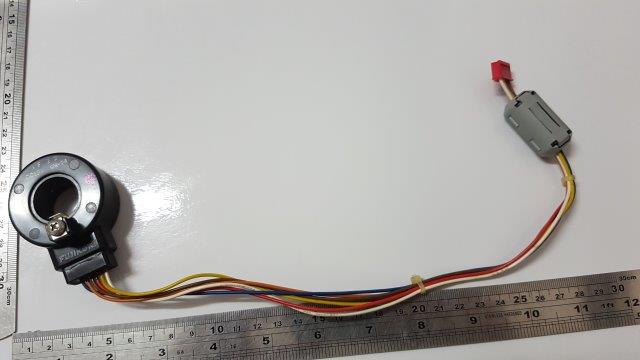

[17] In Stock
RCM382F001C
SOLENOID
Notes: FOR EVB, evb Show Image
RCM382F001C
[18] Contact
RCM154D300A
INSULATION
Contact
[19] Out of Stock
RCK154D200D
INSULATION
Notes: SIDE
[20] Out of Stock
RCK154D005
INSULATION
Notes: UPPER
[21] In Stock
AGR201A011C
GR5490FD4
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[22] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[23] Out of Stock
SSA941C267
RUBBER
[24] In Stock
RPC505A600B
PWB
Notes: PWB1 Show Image
RPC505A600B

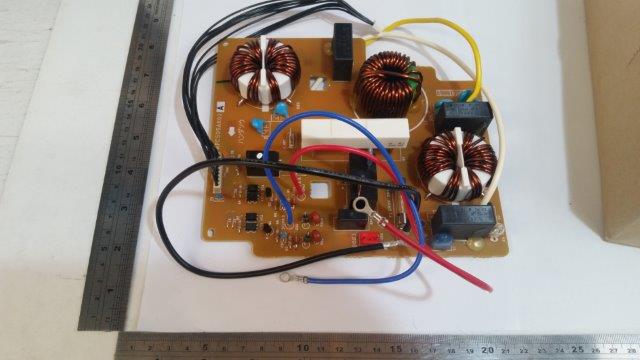

[25-26] Out of Stock
RPC505A601A
PWB2 POWER
Substitute: OUT OF PRODUCTION Notes: PWB2, PWB2 SUB - OUT OF PRODUCTION Show Image
RPC505A601A
[26] Out of Stock
SSA564A094A
FUSE
Notes: F 25A
[27] In Stock
SSA561B678C
BLOCK TERMI
Notes: T1 Show Image
SSA561B678C
[28] In Stock
SSA561B686A
BLOCK TERMI
Notes: T2 Show Image
SSA561B686A
[29] In Stock
SSA551A185A
SENSOR
Notes: INCL.SENSOR(TH1,TH2,TH3) Show Image
SSA551A185A
[30] In Stock
SSA554B050
INDUCTOR
Show Image
SSA554B050
[31] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[32] Out of Stock
RCJ941F500
SPRING
[34] Out of Stock
AGR947K002
TERMINAL C
[35] Contact
SSA914B007AB
NUT
Contact
Notes: 1pc
[36] Contact
RCM142A002A
COVER
Contact
[37] Out of Stock
RPC504A607
HARNESS
[38] Contact
RPC008A604B
PARTS SET
Contact
[39] In Stock
RWA012A189
INSTRUCTION
Show Image
RWA012A189
[40] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[41] In Stock
SSA947A089
GROMMET
Notes: D20.1, SSA422A024 ELBOW Show Image
SSA947A089
[42] Contact
RWC011G066
LABEL,WIRING
Contact
[43] Contact
RSA011F377A
LABEL,MODEL NAME
Contact
