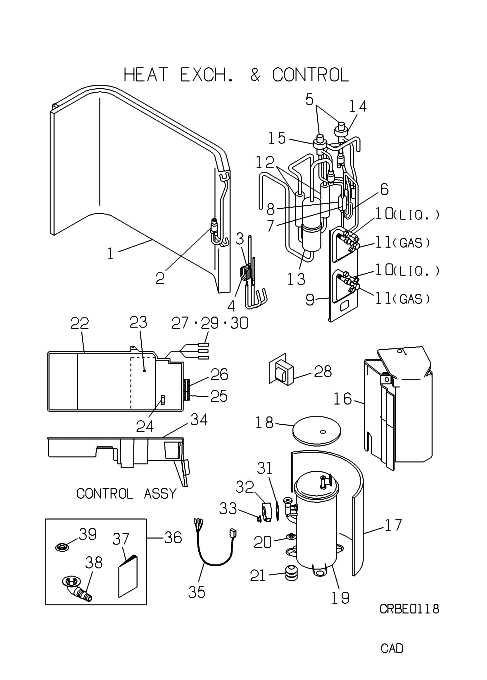

SCM45YA HEAT EXCH. AND CONTROL

SCM45YA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCM311A001
HEAT EXCH
Contact
[1-4] Contact
RPC301A600
HEAT EXCH
Contact
[2] Contact
RPC304A607
PIPING
Contact
[3-4] Contact
RPC304A605
PIPING
Contact
[3] Contact
RPC315B602
CAPILLARY
Contact
Notes: !D1.6XD3.2 L300
[4] Contact
RPC315B602A
CAPILLARY
Contact
Notes: !D1.6XD3.2 L300

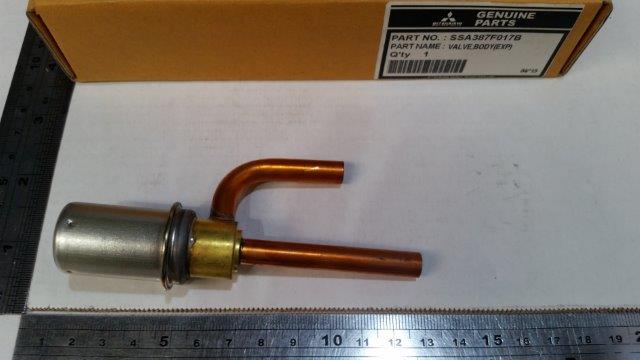

[5] In Stock
SSA387F017B
EXP,V
Show Image
SSA387F017B
[5-8] Contact
RPC304A604
PIPING
Contact
[6] Contact
RPC315B600
CAPILLARY
Contact
Notes: !D2.6XD4.0 L250
[7] Contact
RPC315B603
CAPILLARY
Contact
Notes: !D2.6XD4.0 L250
[8] In Stock
SSA357A005J
STRAINER
Show Image
SSA357A005J
[9] Contact
RPC116A600
BRACKET V
Contact
[10] In Stock
RCK381A200C
VALVE,SERVI
Notes: LIQ. Show Image
RCK381A200C
[11] Out of Stock
RCK381A201C
VALVE,SERVI
Substitute: OUT OF PRODUCTION Notes: GAS
[12] Contact
SSA325A001BH
MUFFLER
Contact
[13] Contact
SSA351A102A
ACUMULATOR
Contact
[14] In Stock
RCM382F001B
SOLENOID
Notes: FOR EVA, eva

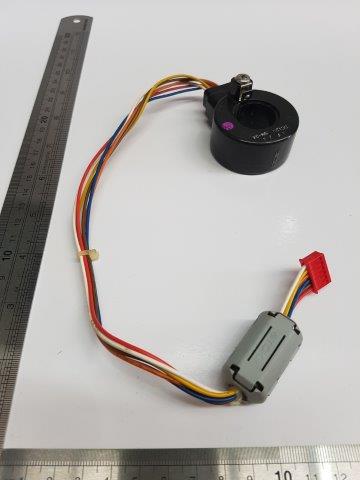

[15] In Stock
RCM382F001C
SOLENOID
Notes: FOR EVB, evb Show Image
RCM382F001C
[16] Contact
RCM154D300A
INSULATION
Contact
[17] Out of Stock
RCK154D200D
INSULATION
Notes: SIDE
[18] Out of Stock
RCK154D005
INSULATION
Notes: UPPER
[19] In Stock
AGR201A011C
GR5490FD4
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[20] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[21] Out of Stock
SSA941C267
RUBBER
[22] Out of Stock
RWC006A002A
PWB SET
Notes: REPLACES RPC505A600C, SCM45YA MAIN

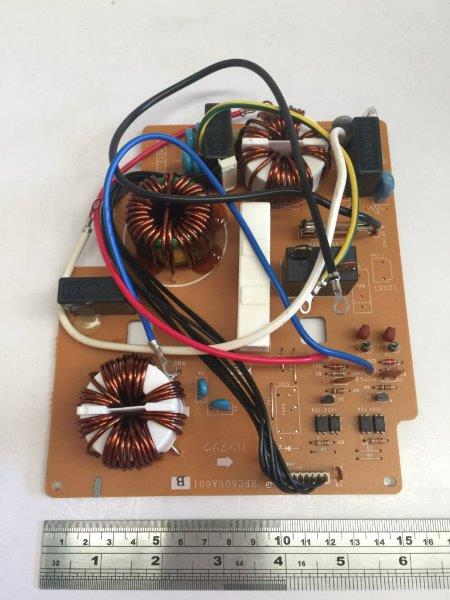

[23-24] In Stock
RPC505A601B
PWB POWER
Notes: PWB2 Show Image
RPC505A601B
[24] Out of Stock
SSA564A094A
FUSE
Notes: F 25A

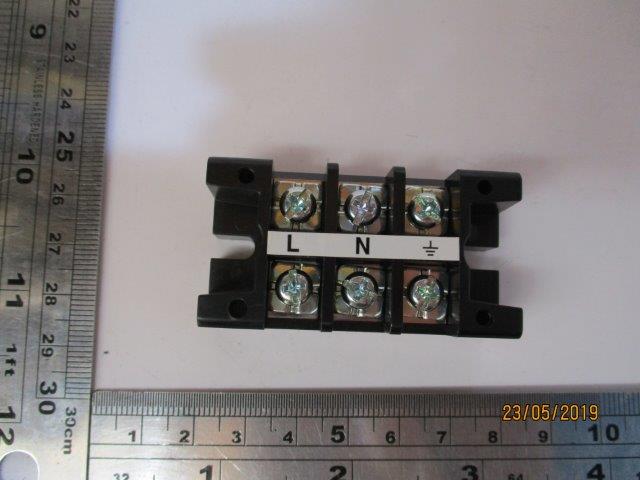

[25] In Stock
SSA561B678C
BLOCK TERMI
Notes: T1 Show Image
SSA561B678C

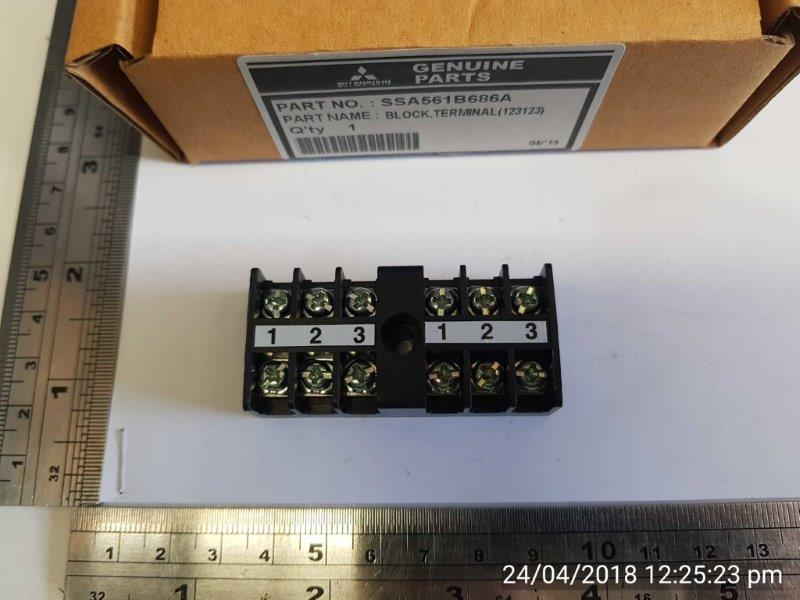

[26] In Stock
SSA561B686A
BLOCK TERMI
Notes: T2 Show Image
SSA561B686A
[27] In Stock
SSA551A185A
SENSOR
Notes: INCL.SENSOR(TH1,TH2,TH3) Show Image
SSA551A185A
[28] In Stock
SSA554B050
INDUCTOR
Show Image
SSA554B050
[29] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[30] Out of Stock
RCJ941F500
SPRING
[32] Out of Stock
AGR947K002
TERMINAL C
[33] Contact
SSA914B007AB
NUT
Contact
Notes: 1pc
[34] Contact
RCM142A002A
COVER
Contact
[35] Out of Stock
RPC504A607
HARNESS
[36] Contact
RPC008A604C
PARTS SET
Contact
[37] In Stock
RWA012A189
INSTRUCTION
Show Image
RWA012A189
[38] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[39] In Stock
SSA947A089
GROMMET
Notes: D20.1, SSA422A024 ELBOW Show Image
SSA947A089
[40] Contact
RWC011G068
LABEL,WIRING
Contact
[41] Contact
RSA011F377B
LABEL,MODEL NAME
Contact
SKU: SCM45YA HEAT EXCH. AND CONTROL Category:
