SCM452HENG-A HEAT EXCH. AND CONTROL

SCM452HENG-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

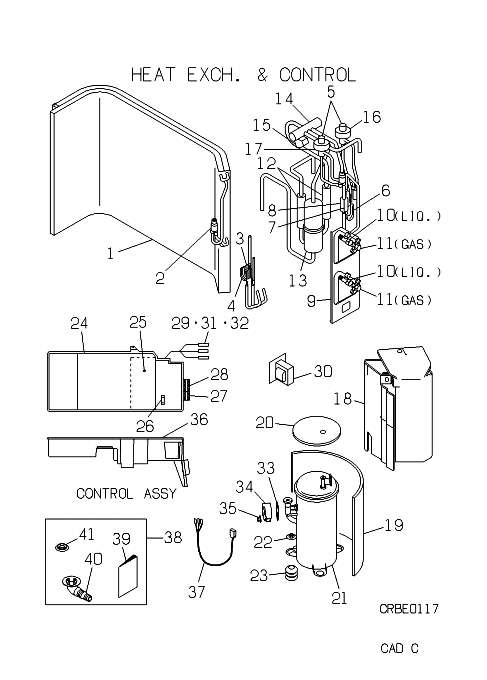

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCM311A001
HEAT EXCH
Contact
[1-4] Contact
RPC301A600
HEAT EXCH
Contact
[2] Contact
RPC304A607
PIPING
Contact
[3-4] Contact
RPC304A605
PIPING
Contact
[4] Contact
RPC315B602A
CAPILLARY
Contact
Notes: !D1.6XD3.2 L300
[5] In Stock
SSA387F017B
EXP,V
Show Image
SSA387F017B
[6] Contact
RPC315B600
CAPILLARY
Contact
Notes: !D2.6XD4.0 L250
[8] In Stock
SSA357A005J
STRAINER
Show Image
SSA357A005J
[9] Contact
RPC116A600
BRACKET V
Contact
[10] Out of Stock
RCK381A200
SERVISE V
Notes: LIQ.
[11] Contact
RCK381A201
SERVICE V
Contact
Notes: GAS
[12] Contact
SSA325A001BH
MUFFLER
Contact
[13] Contact
SSA351A102A
ACUMULATOR
Contact
[14] Out of Stock
SSA382C073
4 WAY VAL
Substitute: OUT OF PRODUCTION Show Image
SSA382C073
[15] In Stock
RCD382F007W
SOLENOID
Show Image
RCD382F007W
[16] Contact
RCM382F001
SOLENOID
Contact
Notes: EVA
[17] Out of Stock
RCM382F001A
SOLENOID
Substitute: OUT OF PRODUCTION Notes: EVB
[18] Contact
RCM154D300A
INSULATION
Contact
[19] Out of Stock
RCK154D200D
INSULATION
Notes: SIDE
[20] Out of Stock
RCK154D005
INSULATION
Notes: UPPER
[21] In Stock
AGR201A011C
GR5490FD4
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[22] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[23] Out of Stock
SSA941C267
RUBBER
[25-26] Out of Stock
RPC505A601A
PWB2 POWER
Substitute: OUT OF PRODUCTION Notes: PWB2, PWB2 SUB - OUT OF PRODUCTION Show Image
RPC505A601A
[26] Out of Stock
SSA564A094A
FUSE
Notes: F 25A
[27] In Stock
SSA561B678C
BLOCK TERMI
Notes: T1 Show Image
SSA561B678C
[28] In Stock
SSA561B686A
BLOCK TERMI
Notes: T2 Show Image
SSA561B686A
[29] Out of Stock
SSA551A174H
SENSER
Substitute: OUT OF PRODUCTION Notes: 3 SENSORS
[30] In Stock
SSA554B050
INDUCTOR
Show Image
SSA554B050
[31] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[32] Out of Stock
RCJ941F500
SPRING
[34] Out of Stock
AGR947K002
TERMINAL C
[35] Contact
SSA914B007AB
NUT
Contact
Notes: 1pc
[36] Contact
RCM142A002A
COVER
Contact
[37] Out of Stock
RPC504A607
HARNESS
[39] Contact
RWA012A179
MANUAL,INSTRUCTION
Contact
[40] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[43] Contact
RSA011F292P
LABEL,MODEL NAME
Contact
SKU: SCM452HENG-A HEAT EXCH. AND CONTROL Category:
