SCM40ZJ-S HEAT EXCH. AND CONTROL

SCM40ZJ-S HEAT EXCH. AND CONTROL

Available Parts

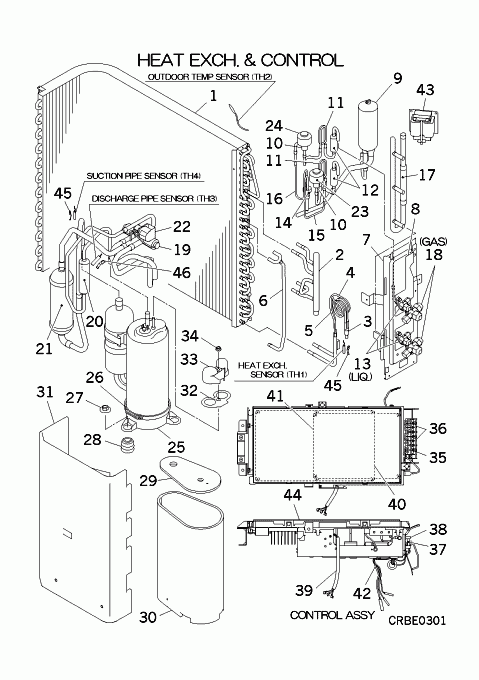

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-6] RPC301A858 HEAT EXCH ASSY(AIR In Stock
  • [2] RPC315D863 HEADER ASSY,GAS Contact   Contact
  • [3-5] RPC321B047A PIPE ASSY Contact   Contact
  • [4] RPC315B870 CAPILLARY Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [5] RPC315B871 CAPILLARY Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [6] RPC321A890 PIPE ASSY Contact Notes: !   Contact
  • [7] RPC116A870A BRACKET ASSY(VALVE Contact   Contact
  • [8] RPC116A871A BRACKET ASSY(VALVE Contact   Contact
  • [9] RPC352D860A RECEIVER ASSY Contact   Contact
  • [10] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [10-16] RPC304A921 PIPING ASSY(EXPAN) Contact   Contact
  • [11] RCN315B001 CAPILLARY,SUB Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [12] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [13] RPC381A852 VALVE,SERVICE(1/4 In Stock Substitute: RPC381A852C Notes: LIQ. Show Image
  • [14] RSA315A004B DISTRIBUTOR Contact   Contact
  • [14-16] RPC315A852 DISTRIBUTOR ASSY Contact   Contact
  • [15] RPC315B872 CAPILLARY,SUB(A) In Stock Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300 Show Image
  • [16] RPC315B873 CAPILLARY,SUB(B) In Stock Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300 Show Image
  • [17] RCK325A501A MUFFLER Contact   Contact
  • [18] RPC381A854 VALVE,SERVICE (3/8) In Stock Substitute: RPC381A854B Notes: GAS, GAS Show Image
  • [19] SSA382C068 4 WAY VALVE In Stock Notes: 20S - REVERSING VALVE BODY - (NOT COIL), 20S Show Image
  • [20] SSA325A001CA PIPE,SHELL Contact   Contact
  • [21] AHT351A001 ACCUMULATOR In Stock Show Image
  • [22] RPC382F802 COIL ASSY,SOLENOID In Stock Notes: FOR 20S / LENGTH 31CM, FOR 20S Show Image
  • [23] SSA382F210C COIL,SOLENOID In Stock Notes: FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM, FOR EEV Show Image
  • [24] SSA382F210D COIL,SOLENOID In Stock Notes: FOR EEVB - 5 WIRES - RED PLUG, FOR EEVB Show Image
  • [25] AHT201C134DA COMPRESSOR ASSY Out of Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RMT5113MDE2
  • [26] RPC541B001F HEATER ASSY(CRANK) Contact   Contact
  • [27] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [28] SSA941C346 CUSHION,RUBBER Contact   Contact
  • [29] RPC154D903 INSULATION,COMP Contact Notes: COMP UPPER, COMP UPPER   Contact
  • [30] RPC154D871 INSULATION,COMP Contact Notes: COMP BODY, COMP BODY   Contact
  • [31] RPC154D851A INSULATION Contact Notes: OUTSIDE, OUTSIDE   Contact
  • [32] RSA932C004 GASKET In Stock Show Image
  • [33] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [34] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [35] SSA561B665 BLOCK TERMI In Stock Substitute: SSA561B211A Notes: T1, T1 Show Image
  • [36] SSA561B675A BLOCK,TERMI In Stock Notes: TB Show Image
  • [37] SSA564A136 FUSE In Stock Notes: 15A
  • [38] SSA564B088 HOLDER,FUSE Out of Stock Show Image
  • [39] RPC504A912 WIRING ASSY In Stock Notes: FOR COMP., FOR COMP. Show Image
  • [40] RCT505A005JA PWB In Stock Notes: TOP BOARD, PWB1
  • [41] RCT505A006 PWB ASSY(SUB) In Stock Notes: PWB2, PWB2
  • [42] SSA551A232D SENSOR ASSY In Stock Notes: TH1,2,3,4, TH1,2,3,4 Show Image
  • [43] SSA554B113 REACTOR In Stock Show Image
  • [44] RPC142A906 LID ASSY,CONTROL Contact   Contact
  • [45] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Show Image
  • [46] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [47] RWC011F017A LABEL,MODEL NAME Contact   Contact
SKU: SCM40ZJ-S HEAT EXCH. AND CONTROL Category:
