SCM40ZG-S HEAT EXCH. AND CONTROL

Name: SCM40ZG-S HEAT EXCH. AND CONTROL
SKU: SCM40ZG-S HEAT EXCH. AND CONTROL
Availability: InStock

SCM40ZG-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

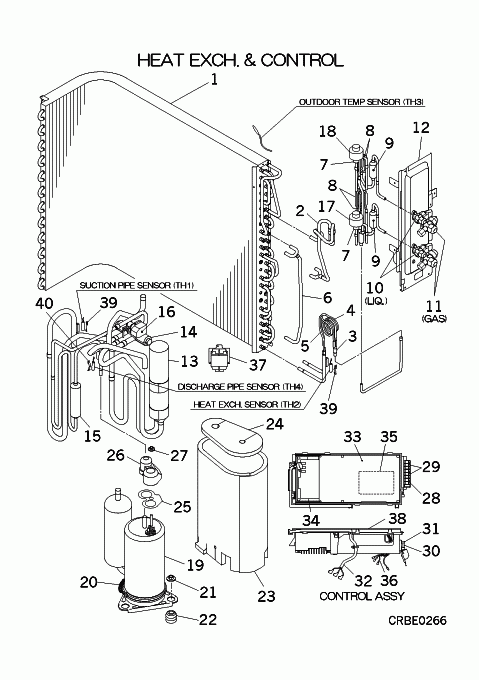

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Contact

RPC301A856

HEAT EXCH

Contact

[2] Contact

RPC321A955

PIPING ASSY

Contact

Notes: !

[3-5] Contact

RPC321B047

PIPE ASSY

Contact

[4] Contact

RPC315B870

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B871

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[7-10] Contact

RPC304A873

PIPING ASSY(EXPAN)

Contact

[8] Contact

RCN315B001

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] In Stock

RPC381A852

VALVE,SERVICE(1/4"

Notes: LIQ. Show Image

[11] In Stock

RPC381A854

VALVE,SERVICE (3/8")

Notes: GAS Show Image

[12] Contact

RPC116A855

BRACKET ASSY

Contact

[13] Contact

RPC325A855A

PIPE,SHELL

Contact

[14] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[15] Contact

SSA325A001CA

PIPE,SHELL

Contact

[16] Out of Stock

RPC382F801

COIL ASSY,SOLENOID

Substitute: OUT OF PRODUCTION Notes: FOR 20S

[17] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[18] In Stock

SSA382F210D

COIL,SOLENOID

Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image

[19] In Stock

RSA201A019

COMPRESSOR

Notes: 5RS102XCA01, ***COMPRESSORS CANNOT BE RETURNED***

[20] Contact

RPC541B001C

HEATER ASSY(CRANK)

Contact

[21] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[22] Contact

SSA941C346

CUSHION,RUBBER

Contact

[23] Contact

RPC154D862A

INSULATION,COMP(A)

Contact

Notes: SIDE

[24] Contact

RPC154D863

INSULATION,COMP(B)

Contact

Notes: UPPER

[25] Contact

RSA932C004A

GASKET

Contact

[26] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[27] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[28] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[29] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[30] In Stock

SSA564A136

FUSE

Notes: 15A

[31] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[32] In Stock

RPC504A887

WIRING ASSY

Notes: FOR COMPRESSOR Show Image

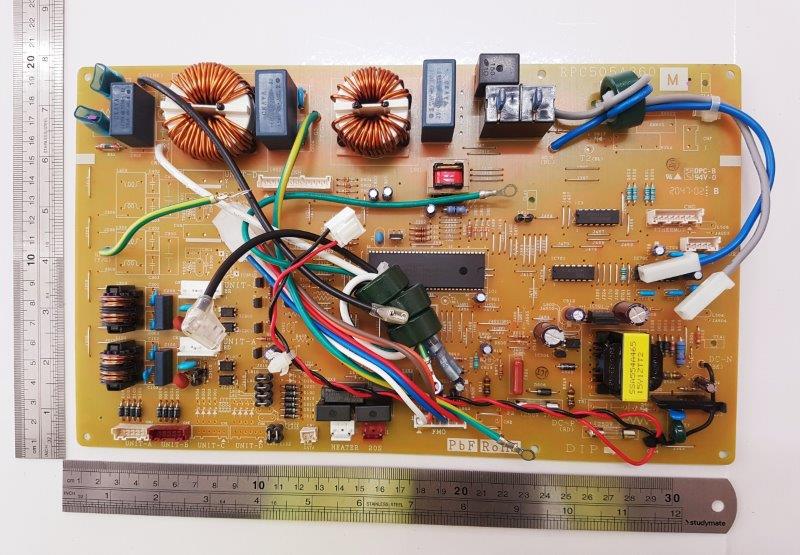

[33] In Stock

RPC505A860M

PWB ASSY(MAIN)

Notes: PWB1

[34] In Stock

RPC505A861C

PWB (POWER)

Notes: PWB2, ***THE PCB THIS PLUGS INTO IS NO LONGER AVAILABLE(EXCLUDES SCM40ZG-S,SCM60ZF-S,SCM80ZF-S). ***Controls the compressor. Aka INVERTER aka PWB2 aka IPM (HEAT SINK ATTACHED). Image is of the underside of PWB. Show Image

[35] In Stock

RPC505A862

PWB ASSY (CAPACITOR)

Notes: PWB3, PWB3 - AKA CAPACITOR PWB Show Image

[36] In Stock

SSA551A195

SENSOR TEMP

Notes: Replaces SSA551A199 Show Image

[37] In Stock

SSA554B113

REACTOR

Show Image

[38] In Stock

RPC142A856

Lid Assy Control

[39] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[40] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[41] Contact

RWA012A246

MANUAL,INSTRUCTION

Contact

[42] Contact

RWC011F009H

LABEL,MODEL NAME

Contact
