SCM125ZM-S CONTROL AND PARTS SET

SCM125ZM-S CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

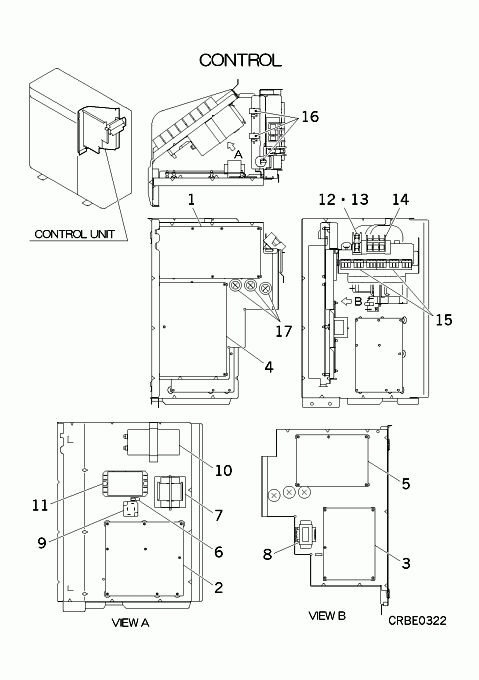

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A174L
PWB ASSY CONTROL
Notes: PWB1
[1-17] Contact
RPC501A950
CONTROL UNIT
Contact
[2] In Stock

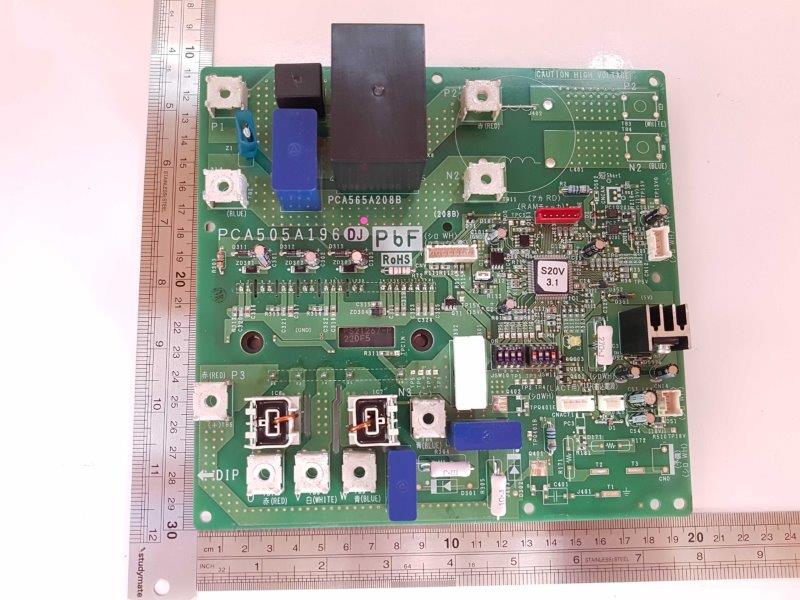

PCA505A194DN
PWB ASSY (INV.)
Notes: PWB2, INVERTER PCB
[3] Out of Stock
PCA505A127C
PWB ASSY
Notes: PWB3, NOISE FILTER BOARD Show Image
PCA505A127C
[4] In Stock
RPC505A950G
PWB ASSY (SUB)
Notes: PWB4 Show Image
RPC505A950G
[5] In Stock

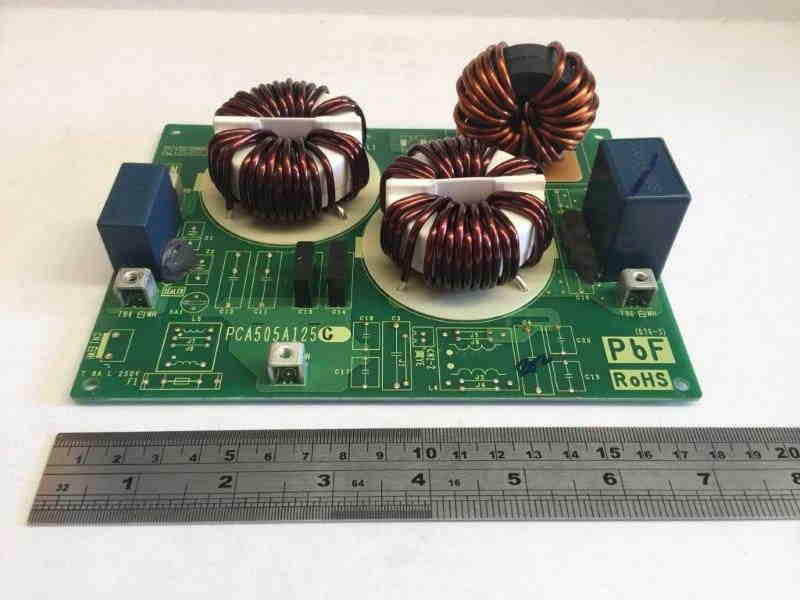

PCA505A125D
PWB ASSY
Notes: PWB5
[6] In Stock
SSA551A192L
SENSOR
Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image
SSA551A192L
[7] In Stock
SSA554B092
REACTOR
Notes: L1
[8] In Stock
SSA554A509
TRANSFORMER
Notes: TR1 Show Image
SSA554A509
[9] In Stock
SSA555A662
DIODE
Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image
SSA555A662
[10] In Stock
SSA552F601
CAPACITOR
Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image
SSA552F601
[11] In Stock
SSA556J035A
IC (ACTIVE CONVERTER)
Notes: A/F MODULE (Active Filter Module)
[12] In Stock
PCA504A300
FUSE ASSY
Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)
[13] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044
[14] In Stock
SSA561B727
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B727
[15] In Stock
SSA561B699
BLOCK TERMI
Notes: T2
[16] In Stock
SSA554D183
KILLER,NOISE
Show Image
SSA554D183
[17] Contact
S750W20
GROMMET
Contact
Notes: D25
[18] Contact
RWC011F017BJ
LABEL,MODEL NAME
Contact
