SCM100ZS-W CONTROL AND PARTS SET

SCM100ZS-W CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

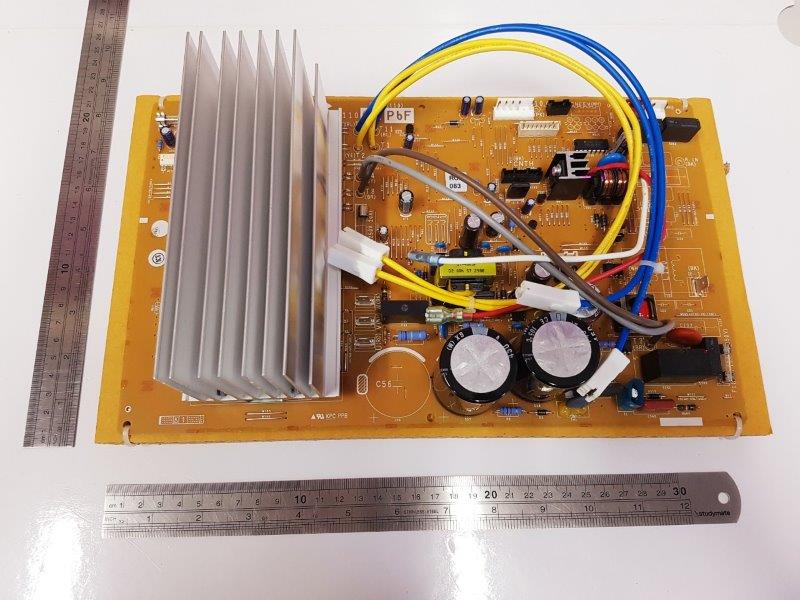

[1] In Stock
RCR505A110CL
PWB ASSY(MAIN)
Notes: PWB1
[1-8] Contact
RPC501A951
CONTROL UNIT
Contact
Notes: !
[2] In Stock
RCT505A006BD
PWB ASSY(SUB)
Notes: PWB2
[3] In Stock
SSA561B665
BLOCK TERMI
Notes: TB1, T1 Show Image
SSA561B665
[4] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: TB2,3,4,5,6, T2 Show Image
SSA561B702B
[5] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: F4 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[6] In Stock
SSA564B088
HOLDER,FUSE
Show Image
SSA564B088
[7-8] Contact
RPC142A203L
LID ASSY,CONTROL
Contact
[8] Contact
RPC011G200M
LABEL,WIRING
Contact
Notes: !

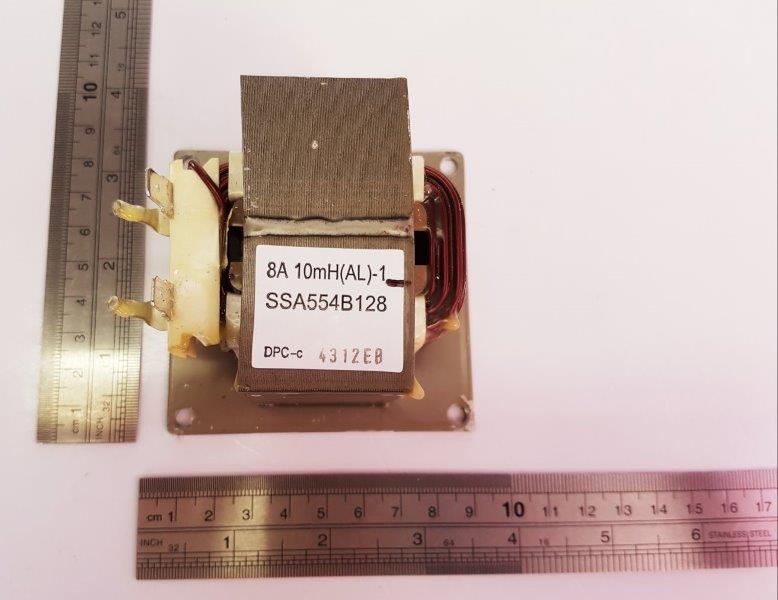

[9] Out of Stock
SSA554B128
REACTOR
Notes: L
[10-12] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[11] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

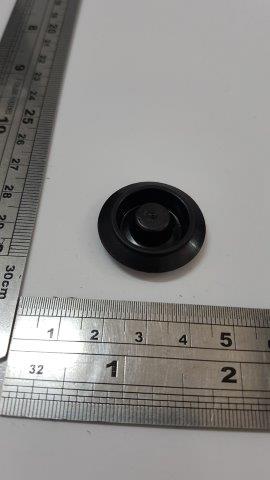

[12] In Stock
SSA947A089
GROMMET
Notes: SSA422A024 ELBOW Show Image
SSA947A089
[13] Out of Stock
RWC011F041P
LABEL,MODEL NAME
Notes: !
SKU: SCM100ZS-W CONTROL AND PARTS SET Category:
