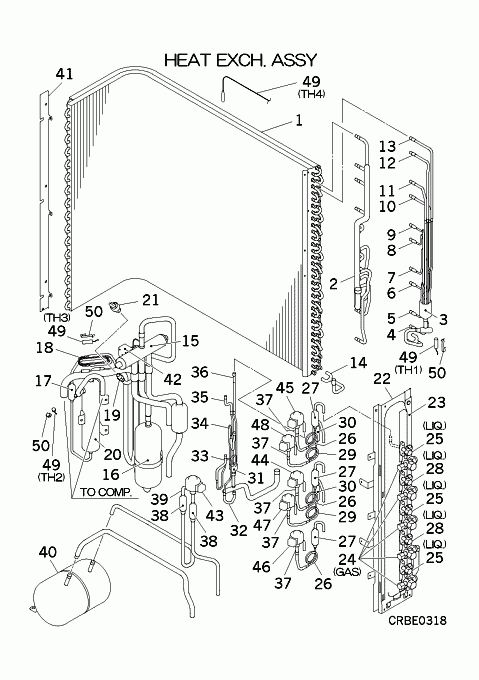

SCM100ZJ-S1 HEAT EXCH. ASSY

SCM100ZJ-S1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Contact
RPC301A950
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RPC315D950
HEADER ASSY,GAS
Contact
[3] Contact
SSA315A037A
DISTRIBUTOR
Contact
[3-13] Contact
RPC315A950
DISTRIBUTOR ASSY
Contact
[4] Contact
RPC315B950
CAPILLARY ASSY(1)
Contact
Notes: !D2.6XD4.0 L300
[5] Contact
RPC315B952
CAPILLARY(2)
Contact
Notes: !D2.8XD4.0 L300
[6] Contact
RPC315B953
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L300
[7] Contact
RPC315B954
CAPILLARY(4)
Contact
Notes: !D2.8XD4.0 L300
[8] Contact
RPC315B955
CAPILLARY(5)
Contact
Notes: !D2.6XD4.0 L300
[9] Contact
RPC315B956
CAPILLARY(6)
Contact
Notes: !D2.8XD4.0 L300
[10] Contact
RPC315B957
CAPILLARY ASSY(7)
Contact
Notes: !D2.4XD4.0 L300
[11] Contact
RPC315B959
CAPILLARY ASSY(8)
Contact
Notes: !D2.8XD4.0 L300
[12] Contact
RPC315B961
CAPILLARY ASSY(9)
Contact
Notes: !D2.6XD4.0 L300
[13] Contact
RPC315B963
CAPILLARY ASSY(10)
Contact
Notes: !D2.8XD4.0 L300
[14] Contact
RPC321B151
PIPE ASSY
Contact
[15] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[16] In Stock
RSA351A004
ACCUMULATOR ASSY
[17] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[17-18] Contact
RPC315B965
CAPILLARY ASSY(OIL
Contact
[18] Contact
PCA315B888A
CAPILLARY
Contact
Notes: !D0.9XD2.0 L210
[19] In Stock
PCA327B056C
VALVE,SERVICE
Show Image
PCA327B056C
[20] In Stock
PCA325A010C
PIPE ASSY,SHELL
[21] In Stock
SSA551D024A
SENSOR HP
Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[22] Contact
RPC116A961A
BRACKET ASSY(VALVE
Contact
[23] Contact
RPC116A962A
BRACKET ASSY(VALVE
Contact
[24] In Stock
RPC381A854
VALVE,SERVICE (3/8")
Notes: GAS Show Image
RPC381A854
[25] In Stock
RPC381A900
VALVE,SERVICE(1/4"
Notes: LIQ. Show Image
RPC381A900
[25-27] Contact
RPC304A956
PIPING ASSY
Contact
[26] In Stock
RCV315B001
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image
RCV315B001
[27] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[28] In Stock
RPC381A900
VALVE,SERVICE(1/4"
Notes: LIQ. Show Image
RPC381A900
[28-30] Contact
RPC304A956A
PIPING ASSY
Contact
[29] In Stock
RCV315B001
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image
RCV315B001
[30] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[31] Contact
RSA315A005A
DISTRIBUTOR
Contact
[31-36] Contact
RPC315A951A
DISTRIBUTOR ASSY
Contact
[32] Contact
RPC315B976
CAPILLARY ASSY(1)
Contact
Notes: !D2.6XD4.0 L200
[33] Contact
RPC315B978
CAPILLARY ASSY(2)
Contact
Notes: !D2.6XD4.0 L200
[34] Contact
RPC315B980
CAPILLARY ASSY(3)
Contact
Notes: !D2.6XD4.0 L200
[35] Contact
RPC315B982
CAPILLARY ASSY(4)
Contact
Notes: !D2.6XD4.0 L200
[36] Contact
RPC315B984
CAPILLARY ASSY(5)
Contact
Notes: !D2.6XD4.0 L200
[37] In Stock
SSA387F052
VALVE,BODY(EXP)
Notes: EEV, EEV‚  - Expansion Valve Body - Body only Show Image
SSA387F052
[38] In Stock
SSA357A059T
STRAINER
[39] In Stock
SSA387F039A
EXP VALVE
Notes: EEV, cooling / heating Show Image
SSA387F039A
[40] In Stock
SSA352B052
RECEIVER
[41] In Stock
PCA141A100
PLATE,BAFFLE(L)
Notes: LENGTH 83.5CM Show Image
PCA141A100
[42] In Stock
PCA382F002AD
COIL ASSY, SOLENOID
Notes: FOR 20S
[43] In Stock
SSA382F212W
COIL SOLENOID
Notes: FOR EEVH Show Image
SSA382F212W
[44] In Stock
SSA382F210F
COIL SOLENOID
Notes: FOR EEVC, EEVC - 5 wires
[45] In Stock
SSA382F210K
COIL SOLENOID
Notes: FOR EEVD Show Image
SSA382F210K
[46] In Stock
SSA382F210C
COIL,SOLENOID
Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image
SSA382F210C
[47] In Stock
SSA382F210D
COIL,SOLENOID
Notes: FOR EEVB, FOR EEVB - 5 WIRES - RED PLUG Show Image
SSA382F210D
[48] In Stock
SSA382F210BD
COIL,SOLENOID
Notes: FOR EEVD
[49] In Stock
PCA551A034C
SENSOR ASSY
Notes: TH1,2,3,4, 4 sensors on 1 plug
[50] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
