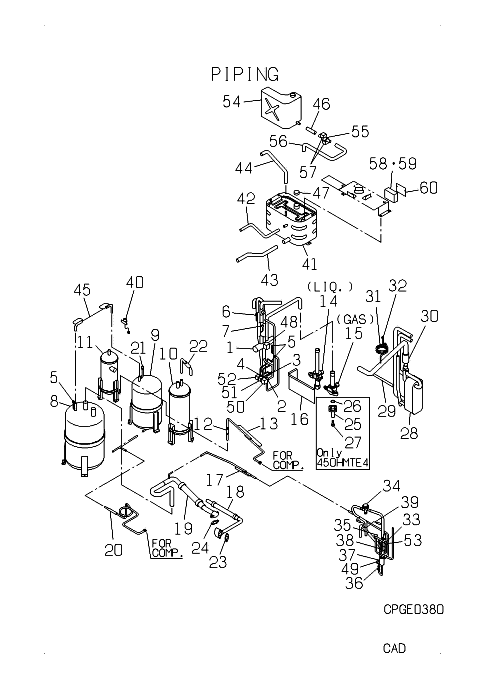

GHCP560HMTE4 PIPING

GHCP560HMTE4 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
SSA382C049
4WAY VALVE
Contact
Notes: OUT OF PRODUCTION, 20S
[2] Contact
SSA382A061
VALVE 2WAY
Contact
Notes: OUT OF PRODUCTION, SV2
[3] Contact
SSA382A025
VALVE,2WAY
Contact
Substitute: RC08689 Notes: OUT OF PRODUCTION
[4] In Stock
SSA382A070
VALVE 2WAY
Notes: OUT OF PRODUCTION, DOES NOT COME WITH "STRAINER" Show Image
SSA382A070
[5] Out of Stock
SSA327B059
VALVE SERVI
Notes: OUT OF PRODUCTION
[6] Contact
SSA327B059A
VALVE,SERVICE
Contact
Notes: OUT OF PRODUCTION
[7] In Stock
SSA532A032CF
SWITCH H P
Notes: OUT OF PRODUCTION, 63H1, 63H1-1,2 Show Image
SSA532A032CF
[8] Contact
SSA351A180F
ACCLMULATOR
Contact
Notes: OUT OF PRODUCTION, FRONT
[9] Contact
SSA351A179B
ACCLMULATOR
Contact
Notes: OUT OF PRODUCTION, REAR
[10] Contact
SSA352A089
RECEIVER AS
Contact
Notes: OUT OF PRODUCTION
[11] Contact
SSA354A037
SEPARATOR
Contact
Notes: OUT OF PRODUCTION
[12] In Stock
SSA357A059B
STRAINER
Notes: OUT OF PRODUCTION
[12-13] Contact
PCL321A459B
PIPE
Contact
Notes: OUT OF PRODUCTION
[13] Contact
PCL315B075B
CAPILLARY
Contact
Notes: OUT OF PRODUCTION, !D1.8XD3.2 L500
[14] Out of Stock
SSA381A721
VALVE SERVI
Notes: OUT OF PRODUCTION
[15] Contact
SSA381A726
VALVE SERVI
Contact
Notes: OUT OF PRODUCTION, GAS
[16] Contact
PCL116A264A
BRACKET(S,V)
Contact
Notes: OUT OF PRODUCTION
[17] Contact
PCL315B076
CAPILLARY
Contact
Notes: OUT OF PRODUCTION, !D2.0XD3.2 L350, !D2.0XD3.2 L350
[18] Contact
PCL321A450B
PIPE ASSY
Contact
Notes: OUT OF PRODUCTION
[19] Contact
PCL321A446
PIPE ASSY
Contact
Notes: OUT OF PRODUCTION
[20] In Stock
SSA385A015
VALVE CHECK
Notes: OUT OF PRODUCTION Show Image
SSA385A015
[21] Contact
SSA532B024A
SWITCH LP
Contact
Notes: OUT OF PRODUCTION, 63L
[22] In Stock
SSA357A009C
STRAINER
Notes: OUT OF PRODUCTION
[23] Contact
SSA932B028
GASKET
Contact
Substitute: RA25089-SSA932B028D Notes: OUT OF PRODUCTION
[24] Contact
PCL932C003
GASKET SUCT
Contact
Notes: OUT OF PRODUCTION
[28-30] Contact
PCL312D002B
HEAT EXCH
Contact
Notes: OUT OF PRODUCTION
[29] Contact
PCL423C011A
HOSE
Contact
Notes: OUT OF PRODUCTION
[30] Contact
SSA385A039
VALVE CHECK
Contact
Notes: OUT OF PRODUCTION
[31-32] Contact
PCL321A576B
PIPE EXP
Contact
Notes: OUT OF PRODUCTION
[32] Contact
F107E06
FLARE NUT,REF
Contact
Notes: OUT OF PRODUCTION
[33] Contact
SSA382A025
VALVE,2WAY
Contact
Substitute: RC08689 Notes: OUT OF PRODUCTION
[33-39] Contact
PCL387A009K
VALVE ASSY,
Contact
Notes: OUT OF PRODUCTION
[34] Contact
SSA387A103B
EXP
Contact
Notes: OUT OF PRODUCTION
[35] Contact
SSA387A094
EXP FDCP
Contact
Notes: OUT OF PRODUCTION
[36] In Stock
SSA357H034
STRAINER
Notes: OUT OF PRODUCTION Show Image
SSA357H034
[37] In Stock
SSA382A070
VALVE 2WAY
Notes: OUT OF PRODUCTION, DOES NOT COME WITH "STRAINER" Show Image
SSA382A070
[38] Contact
PCL315B072
CAPILLARY
Contact
Notes: OUT OF PRODUCTION, !D2.4XD4.0 L300, !D2.4XD4.0 L300
[39] Contact
PCL315B137A
CAPILLARY
Contact
Notes: OUT OF PRODUCTION, !D3.5XD5.0 L300, !D3.5XD5.0 L300
[40] Contact
SSA551D020
SENSOR HP
Contact
Notes: OUT OF PRODUCTION, PSH
[41] Contact
PCL452A011A
‚µ‚²„¢‚¬‚¸
Contact
Notes: OUT OF PRODUCTION
[42] Out of Stock
PCL423J014
HOSE OIL TA
Notes: OUT OF PRODUCTION
[43] Out of Stock
PCL423J015
HOSE OIL TA
Notes: OUT OF PRODUCTION
[44] Out of Stock
PCL423J016
HOSE OIL TA
Notes: OUT OF PRODUCTION
[45] Contact
PCL315B139
CAPILLARY
Contact
Notes: OUT OF PRODUCTION, !D2.8XD4.0 L790, !D2.8XD4.0 L790
[46] Contact
PCL423J018
HOSE OIL TA
Contact
Notes: OUT OF PRODUCTION
[47] Contact
PCL422G001
CAP
Contact
Notes: OUT OF PRODUCTION
[48] Contact
SSA382F008J
COIL S 2000
Contact
Notes: OUT OF PRODUCTION, FOR 20S
[49] Contact
SSA382F109J
COIL,SOLENOID
Contact
Notes: OUT OF PRODUCTION, FOR SV1, FOR SV1
[50] Contact
SSA382F415D
COIL SO2400
Contact
Notes: OUT OF PRODUCTION, FOR SV2
[51] In Stock
SSA382F100M
COIL SOLENO
Notes: OUT OF PRODUCTION, 20VU,SV3, 20VU,SV3 Show Image
SSA382F100M
[52] In Stock
SSA382F147A
COILSOLENO VALVE
Notes: OUT OF PRODUCTION, 20VF, SV1,2 Show Image
SSA382F147A
[53] Contact
SSA382F100J
COIL,SOLENOID
Contact
Notes: OUT OF PRODUCTION
[54] Contact
PCL452A012A
TANK SOBOIL
Contact
Notes: OUT OF PRODUCTION
[55] Out of Stock
PCL482A001
VALVE 2WAY
Notes: OUT OF PRODUCTION, 20OL
[56] Contact
PCL423J017
HOSE OIL TA
Contact
Notes: OUT OF PRODUCTION
[57] Contact
PCL482F003
COIL SOLENO
Contact
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION, FOR 20OL
[58-59] Contact
PCL501A018
BOX,TERMINA
Contact
Notes: OUT OF PRODUCTION
[59] Contact
SSA561B671
BLOCK,TERMI
Contact
Notes: OUT OF PRODUCTION
[60] Contact
PCL142A128
LID
Contact
Notes: OUT OF PRODUCTION
