FDUT71KXE6F-E/F CONTROL AND PARTS SET

FDUT71KXE6F-E/F CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

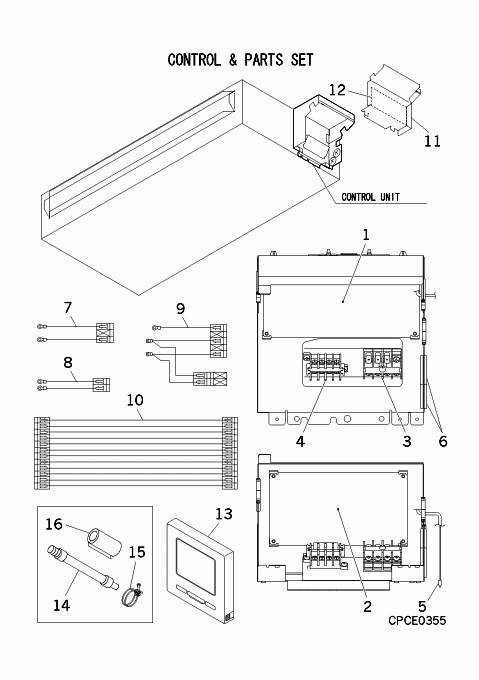

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A230R
PWB ASSY(POWER)
Notes: ONLY FOR SUPPLY PARTS
[1-10] Contact
PJH501A002BK
CONTROL UNIT
Contact
Notes: !
[2] In Stock
PJA505A229GG
PWB ASSY CONTROL
Notes: ONLY FOR SUPPLY PARTS Show Image
PJA505A229GG
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[6] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[7] Contact
PJF504A006L
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[8] Contact
PJF504A010J
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[9] Contact
PJG504A007B
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU
[10] In Stock
PJG504A001
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1
[11] Contact
PJH142A009
LID ASSY,CONTROL B
Contact
[12] Contact
PJH011G003
LABEL,WIRING
Contact
Notes: !
[13] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[14] In Stock
SSA423A101C
HOSE,DRAIN
Notes: LENGTH 26CM Show Image
SSA423A101C
[14-16] Contact
PJF008A001AT
PARTS SET
Contact
[15] In Stock
V300Y42
HOSE CLAMP
[16] Contact
SSA153B022AG
INSULATION,PIPE
Contact
[17] Contact
PJH011F007N
LABEL,MODEL NAME
Contact
Notes: !
