FDUT71KXE6F-E/1 CABINET ASSY

FDUT71KXE6F-E/1 CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

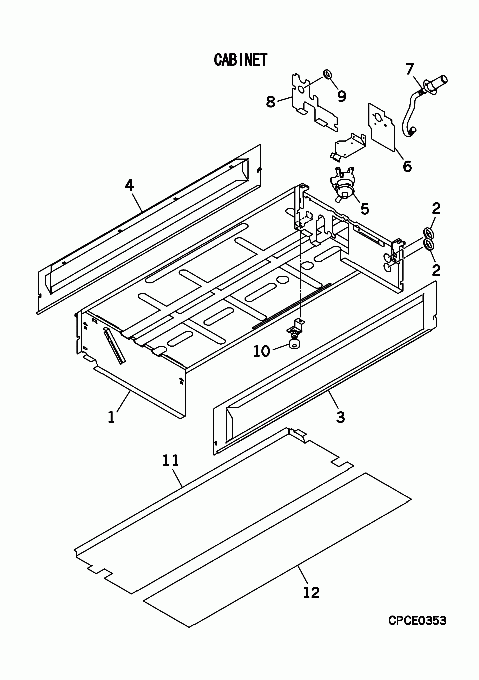

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
PJH100A002A
CABINET ASSY
Contact
[2] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[3] Contact
PJZ438A056B
JOINT,DUCT(IN)
Contact
[4] Contact
PJH438A003
JOINT ASSY,DUCT(OU
Contact
[5] In Stock
SSA451A012C
PUMP,DRAIN
Show Image
SSA451A012C
[5-7] In Stock
PJH451A003
DRAIN PUMP
[6] Contact
PJH132A004
LID,PUMP
Contact
[7] Contact
PJC422C102
SOCKET ASSY,DRAIN
Contact
[8-9] Contact
PJH132A005A
LID ASSY
Contact
[9] Contact
S751W20
GROMMET 5K1
Contact
Notes: D25
[10] Contact
PJG536A001A
SWITCH ASSY,FLOAT
Contact
Notes: FS
[11] Contact
PJH111A002
PLATE ASSY,BOTTOM
Contact
[12] Contact
PJZ111A005B
PLATE ASSY,BOTTOM
Contact
[13] In Stock
SSA423A101A
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET
[14] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
