FDUT45KXE6D CABINET ASSY

FDUT45KXE6D CABINET ASSY

Available Parts

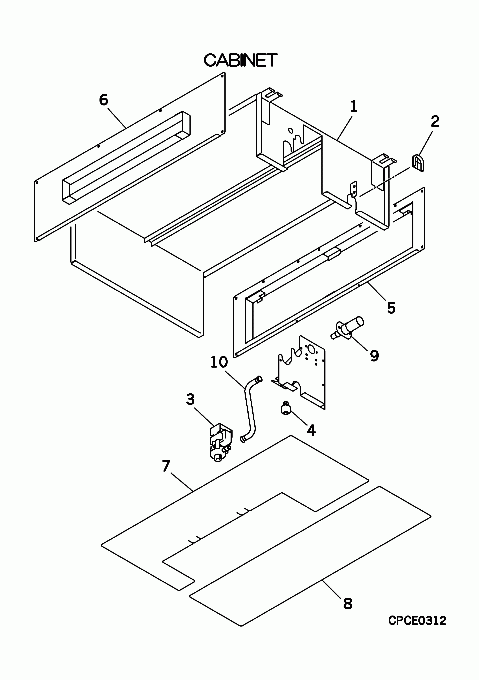

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-2] PJM100A115C CABINET ASSY Contact   Contact
  • [2] SSA947B027A GROMMET Contact   Contact
  • [3] PJA451A510T PUMP ASSY,DRAIN In Stock Show Image
  • [3-4] PJM451A300A PUMP ASSY,DRAIN Contact   Contact

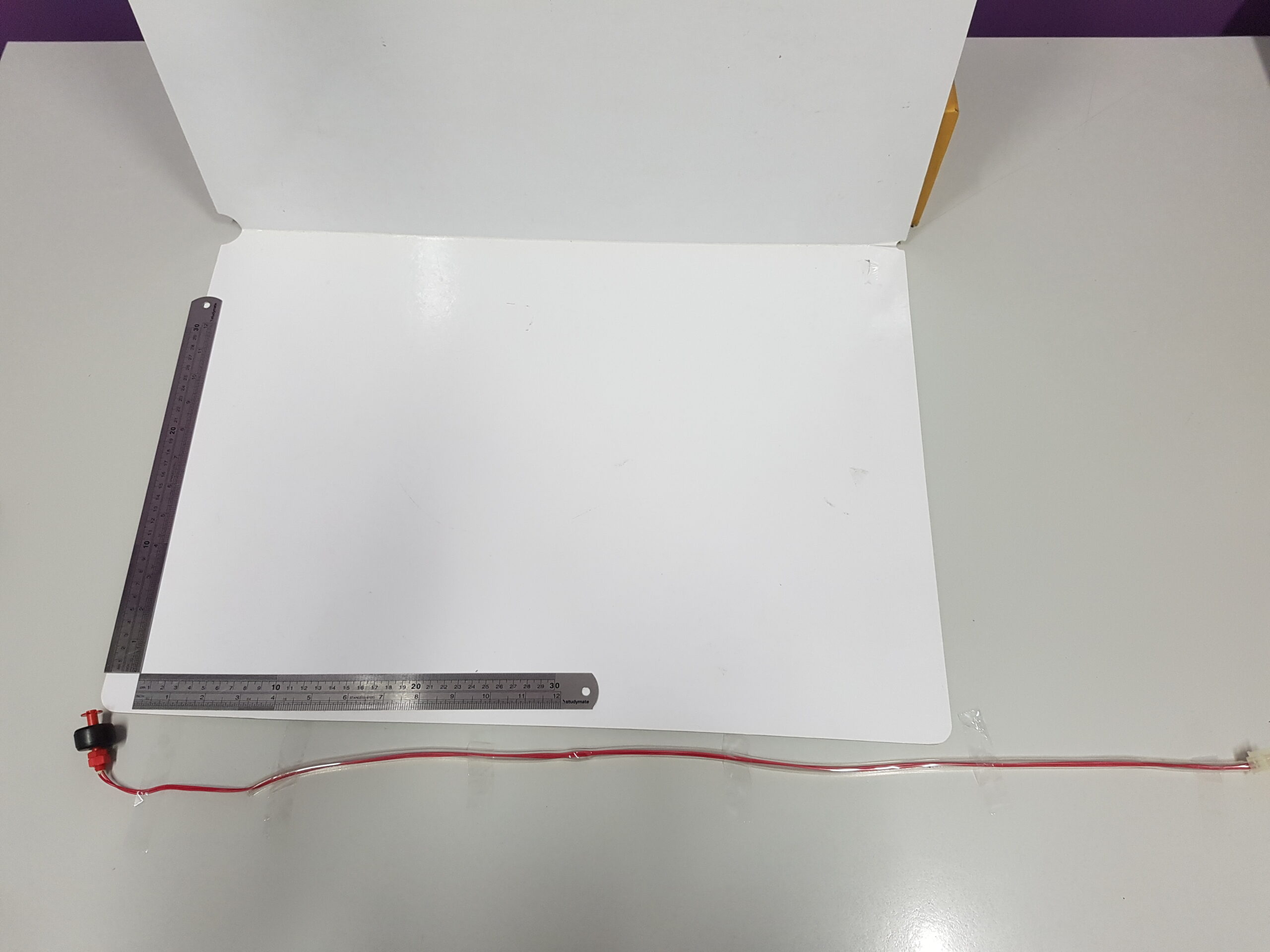

  • [4] SSA536A029G SWITCH,FLOAT Contact Notes: FS, FS   Contact
  • [5] PJM438A012A FLANGE ASSY Contact   Contact
  • [6] PJM438A002A FLANGE ASSY Contact   Contact
  • [7] PJM101A023A PLATE ,BOTTOM ASSY Contact   Contact
  • [8] PJM101A025A PLATE,BOTTOM Contact   Contact
  • [9] SSA422C088 SOCKET Out of Stock Notes: LENGTH 11.5CM Show Image
  • [9-10] PJD422C001B SOCKET ASSY,DRAIN Contact   Contact
  • [10] SSA423A083 HOSE,DRAIN Contact   Contact
