FDUT15KXZE3-W/1 CONTROL AND PARTS SET

FDUT15KXZE3-W/1 CONTROL AND PARTS SET

FDUT15KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

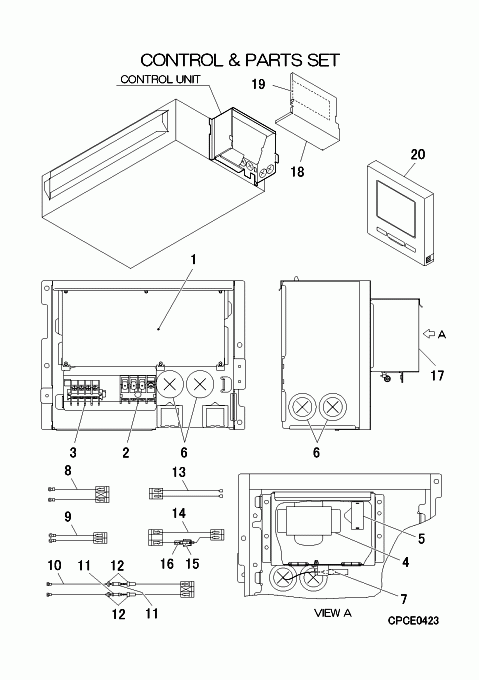

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA505A299KR
PWB ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS
[1-17] Contact
PJH501A001JA
CONTROL UNIT
Contact
Notes: !
[2] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[3] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[4] In Stock
SSA554A487
TRANSFORMER
Notes: TR Show Image
SSA554A487
[5] Contact
SSA552A497J
CAPACITOR,RUNNING
Contact
Notes: CFI 0.7MF 450VAC
[6] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[7] Contact
PSA551A001CK
SENSOR ASSY
Contact
Notes: THI-A
[8] Contact
PJF504A006L
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[9] Contact
PJF504A010K
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[10-12] Contact
PFA504A618M
WIRING(TB,POWER)
Contact
Notes: TB1 1,TB1 2- CNW0 PWB
[11] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: F 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[12] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[13] Contact
PFA504A616C
HARNESS(CF)
Contact
Notes: CNFI- CNFI,CFI
[14-16] Contact
PJB504A238A
WIRING(DM)
Contact
Notes: CNR PWB- CNR2 DM
[15] In Stock
SSA564A139
FUSE(CURRENT)
Notes: F 0.16A Show Image
SSA564A139
[16] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[17] Contact
PJH142A007A
LID,CONTROL(SUB)
Contact
[18] Contact
PJH142A005
LID,CONTROL(MAIN)
Contact
[19] Contact
PJH011G005A
LABEL,WIRING
Contact
Notes: !
[20] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[21] Contact
PJH011F011A
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDUT15KXZE3-W/1 CONTROL AND PARTS SET Category:
