FDUT15KXE6F-W/1 HEAT EXCH. AND FAN

Name: FDUT15KXE6F-W/1 HEAT EXCH. AND FAN
SKU: FDUT15KXE6F-W/1 HEAT EXCH. AND FAN
Availability: InStock

FDUT15KXE6F-W/1 HEAT EXCH. AND FAN

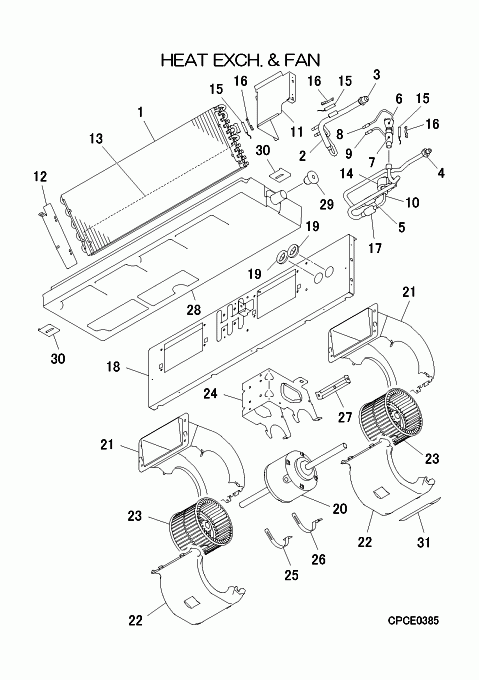

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJH311A003A

HEAT EXCH(AIR)

Contact

Notes: ?

[1-17] Contact

PJH301A003B

HEAT EXCH ASSY(AIR)

Contact

[2-3] Contact

PJH315D007A

HEADER ASSY,GAS

Contact

Notes: ?

[3] In Stock

SSA323F088

UNION(SLD)

Notes: LENGTH 2.6CM Show Image

[4] Contact

SSA323F092

UNION,SOLDER

Contact

[5] In Stock

SSA357A051B

STRAINER

Show Image

[6] Contact

SSA315A306Z

DISTRIBUTOR

Contact

Notes: ?

[6-9] Contact

PJH315A005B

DISTRIBUTOR ASSY

Contact

[7] Contact

SSA357A051J

STRAINER

Contact

[8] Contact

PJH315B005

Contact

Notes: ?f2.0xf4.0 L120

[9] Contact

PJH315B005A

Contact

Notes: ?f2.8xf4.0 L160

[10] Contact

SSA387F078B

VALVE,BODY(EXP)

Contact

Notes: SM

[11] Contact

PJH141A003

PLATE,BAFFLE(R)

Contact

[12] Contact

PJH141A004

PLATE,BAFFLE(L)

Contact

[13] Contact

PJH119A004

Contact

[14] In Stock

SSA382F228AH

COIL, SOLENOID

Notes: FOR SM

[15] In Stock

PJF551A002L

SENSOR ASSY

Notes: THI-R1,2,3, LENGTH 74.5CM Show Image

[16] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[17] Contact

SSA357A051K

STRAINER

Contact

[18-19] Contact

PJH141A001B

PLATE ASSY,BAFFLE

Contact

[19] In Stock

S751W25X

GROMMET

Notes: f30 Show Image

[20] In Stock

SSA511T265

MOTOR

[21] In Stock

PJH433B001

CASING(U)

[22] In Stock

PJH433B003

CASING ASSY(L)

[23] In Stock

SSA431D095A

FAN

[24] In Stock

PJH116A003

BRACKET MOTOR

[25] Out of Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[26] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[27] Contact

PJG119A002B

PLATE

Contact

[28-29] In Stock

PJH454A001

PAN ASSY,DRAIN

[29] In Stock

SSA326A049

PLUG

Show Image

[30] Contact

PJH116A013

BRACKET ASSY(PAN)

Contact

[31] Contact

PSA011H046

LABEL,NOTICE

Contact

SKU: FDUT15KXE6F-W/1 HEAT EXCH. AND FAN Category: Uncategorised
