FDUT15KXE6F-W/1 CONTROL AND PARTS SET

FDUT15KXE6F-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

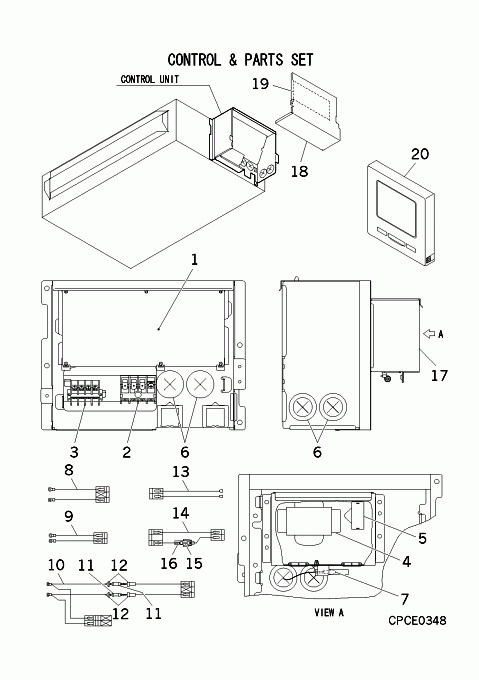

Check the parts position number [ ] matching with the drawing. Login to view prices.

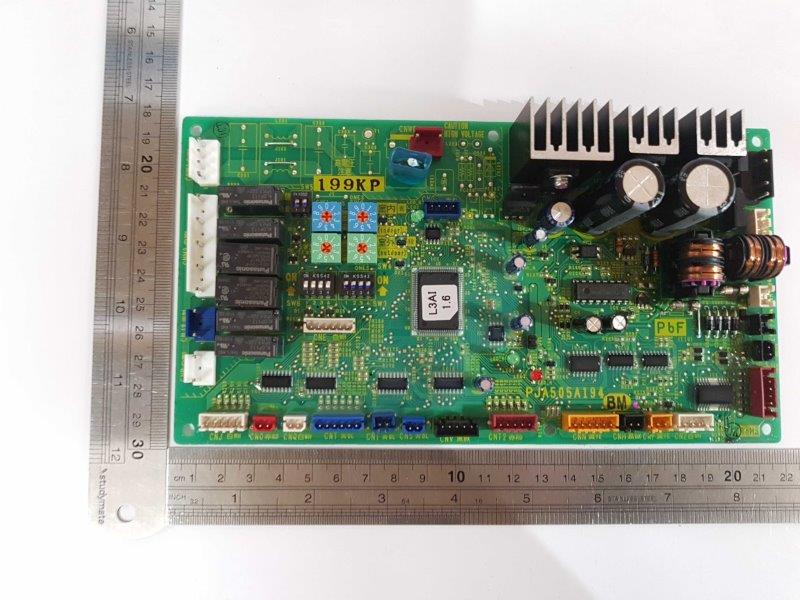

[1] In Stock
PJA505A299KP
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS, Indoor PCB
[1-17] Contact
PJH501A001CA
CONTROL UNIT
Contact
Notes: ?
[2] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[3] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[4] In Stock
SSA554A487
TRANSFORMER
Notes: TR Show Image
SSA554A487
[5] Contact
SSA552A497J
CAPACITOR,RUNNING
Contact
Notes: CFI 0.7uF 450VAC
[6] In Stock
S751W25X
GROMMET
Notes: f30 Show Image
S751W25X
[7] In Stock
PSA551A001CH
SENSOR ASSY
Notes: THI-A, THI-A - AIR TEMP SENSOR Show Image
PSA551A001CH
[8] Contact
PJF504A006L
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[9] Contact
PJF504A010K
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[10-12] Contact
PFA504A618L
WIRING(TB,POWER)
Contact
Notes: TB1 1,TB1 2- CNW0 PWB,CNU
[11] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: F 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[12] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[13] Contact
PFA504A616C
HARNESS(CF)
Contact
Notes: CNFI- CNFI,CFI
[14-16] Contact
PJB504A238A
WIRING(DM)
Contact
Notes: CNR PWB- CNR2 DM
[15] In Stock
SSA564A139
FUSE(CURRENT)
Notes: F 0.16A Show Image
SSA564A139
[16] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[17] Contact
PJH142A007
LID,CONTROL(SUB)
Contact
Substitute: PJH142A007A
[18] Contact
PJH142A005
LID,CONTROL(MAIN)
Contact
[19] Contact
PJH011G004
LABEL,WIRING
Contact
Notes: ?
[20] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[21] Contact
PJH011F010A
LABEL,MODEL NAME
Contact
Notes: ?
