FDUSA502R-C CONTROL AND PARTS SET

FDUSA502R-C CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

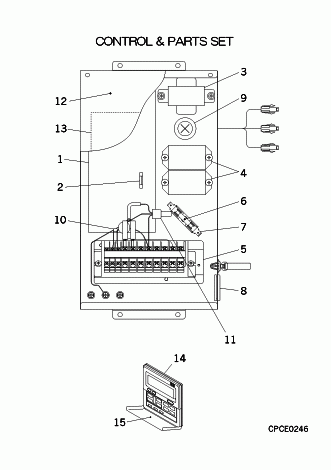

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-11] Contact
PJR501A304
CONTROL UNIT
Contact
[1-2] Out of Stock
PJA505A131ZC
PWB ASSY
Substitute: OUT OF PRODUCTION Show Image
PJA505A131ZC
[2] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[3] In Stock
SSA554A358AA
TRANSFORMER
Notes: TRI Show Image
SSA554A358AA
[4] Contact
SSA521F051
RELAY
Contact
Notes: 52F
[5] Contact
SSA561B716KD
BLOCK,TERMINAL
Contact
Notes: TB
[6] Contact
SSA564A117A
FUSE(CURRENT)
Contact
Notes: 10A
[7] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044
[8] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[9] Contact
S751W20X
GROMMET
Contact
Notes: D25
[10] Contact
PJA552F004
CAPACITOR A
Contact
[11] Contact
PJR504A308
CAPACITOR ASSY
Contact
[12-13] Contact
PJR142A302
LID ASSY,CONTROL B
Contact
[13] Contact
PJR011G303
LABEL,WIRING
Contact
[14-15] Out of Stock
PJA502A700AC
WALL CONTROLLER
Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z
[15] Contact
PJA129A708
COVER Z
Contact
[16] Contact
PJR011F306A
LABEL,MODEL NAME
Contact
