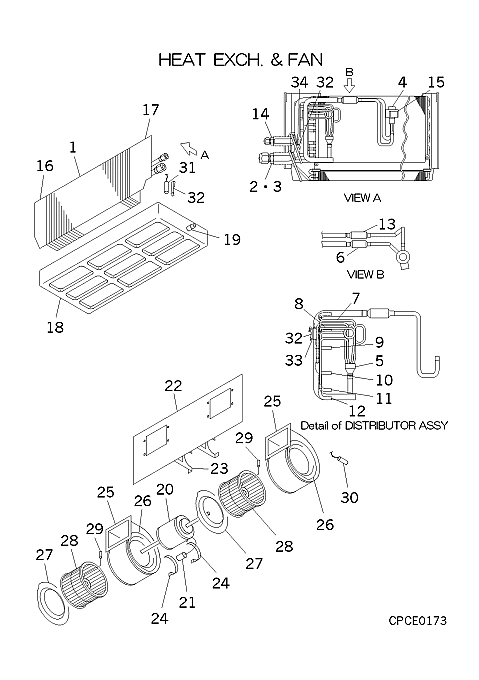

FDURA56KXE4A HEAT EXCH. AND FAN

FDURA56KXE4A HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJD311A025A
HEAT EXCH(AIR)
Contact
[1-17] In Stock
PJD301A039
HEAT EXCH A
[2-3] Contact
PJD315D060B
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012G
UNION,SOLDER
Contact
Notes: GAS
[4] In Stock
SSA387F036A
VALVE,BODY
Notes: SM Show Image
SSA387F036A
[5] Contact
SSA315A252D
DISTRIBUTOR
Contact
[5-12] Contact
PJD315A065
DISTRIBUTOR
Contact
[6] In Stock
SSA357A059T
STRAINER
[7] Contact
PJD315B338
CAPILLARY(1)
Contact
Notes: !D2.4XD4.0 L290
[8] Contact
PJD315B339
CAPILLARY(2)
Contact
Notes: !D2.4XD4.0 L260
[9] Contact
PJD315B340
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L200
[10] Contact
PJD315B341
CAPILLARY(4)
Contact
Notes: !D3.0XD4.0 L240
[11] Contact
PJD315B342
CAPILLARY(5)
Contact
Notes: !D3.0XD4.0 L230
[12] Contact
PJD315B343
CAPILLARY(6)
Contact
Notes: !D2.4XD4.0 L230
[13] Out of Stock
SSA357A059B
STRAINER
[14] Contact
SSA323F075
UNION
Contact
Notes: LIQ.
[15] In Stock
SSA382F210T
COIL,SOLENOID
Notes: FOR SM, EXPANSION VALVE COIL Show Image
SSA382F210T
[16] Contact
PJD141A029D
PLATE ASSY,BAFFLE
Contact
Notes: LEFT
[17] Contact
PJD141A030D
PLATE ASSY,BAFFLE
Contact
Notes: RIGHT
[18-19] In Stock
PJD454A010
PAN DRAIN
[19] Contact
SSA422C058
SOCKET
Contact
[20] In Stock
PJD511T014
MOTOR AC
[21] In Stock
SSA552A255A
CAPACITOR
Notes: CFI 8MF 500VAC, CFI 8MF 450VAC Show Image
SSA552A255A
[22] In Stock
PJD116A083
BRACKET FAN
[23] In Stock
PJD116A084
BRAKET FAN
Show Image
PJD116A084
[24] In Stock
PJY116A517
BRACKET FAN
Show Image
PJY116A517
[25-27] In Stock
PJD433B003
CASING
[26] Contact
PJD433A005
SHROUD,SUCTION
Contact
[27] Contact
PJD433A005A
SHROUD,SUCTION
Contact
[28-29] In Stock
SSA431D073
IMPELLER
Show Image
SSA431D073
[29] In Stock
H721B08X012
SCREW,SCH-CP
Notes: 1pc ONLY
[30] In Stock
PJA551A010N
SENSOR
Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image
PJA551A010N
[31] In Stock
PJA551A005C
SENSOR
Notes: THI-R Show Image
PJA551A005C
[32] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[33] In Stock
PJA551A005BB
SENSOR
Notes: THI-R2, KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD Show Image
PJA551A005BB
[34] In Stock
PJA551A005BC
SENSOR
Notes: THI-R3, KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD/ LENGTH 137.5CM Show Image
PJA551A005BC
