FDURA501R HEAT EXCH. AND FAN

FDURA501R HEAT EXCH. AND FAN

Available Parts

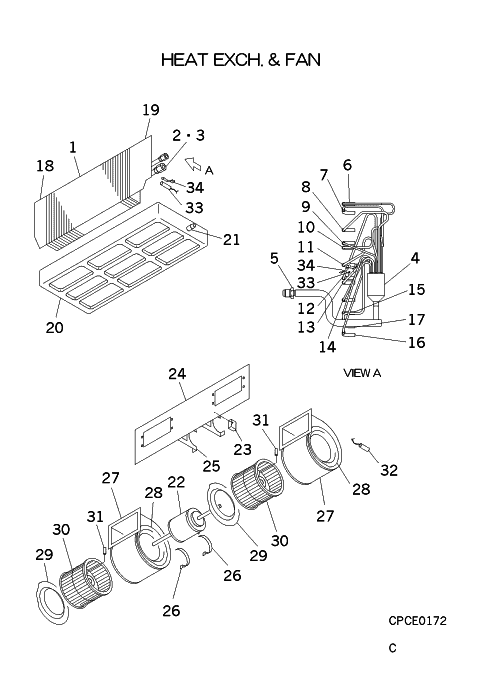

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A026 HEAT EXCH(AIR) Contact   Contact
  • [1-19] PJD301A038 HEAT EXCH ASSY In Stock
  • [2-3] PJD315D061 HEADER ASSY,GAS Contact   Contact
  • [3] SSA323F012C UNION,SOLDER Contact   Contact
  • [4] PJA315A703F DISTRI Z Contact   Contact
  • [4-17] PJD315A062 DISTRIBUTOR Contact   Contact
  • [5] SSA323F012A UNION Contact   Contact
  • [6] PJD315B326 CAPILLARY(1) Contact Notes: !D2.2XD3.2 L300, !D2.2XD3.2 L300   Contact
  • [7] PJD315B327 CAPILLARY(2) Contact Notes: !D2.0XD3.2 L310, !D2.0XD3.2 L310   Contact
  • [8] PJD315B328 CAPILLARY(3) Contact Notes: !D2.6XD4.0 L270, !D2.6XD4.0 L270   Contact
  • [9] PJD315B329 CAPILLARY(4) Contact Notes: !D2.2XD3.2 L160, !D2.2XD3.2 L160   Contact
  • [10] PJD315B330 CAPILLARY(5) Contact Notes: !D2.6XD4.0 L230, !D2.6XD4.0 L230   Contact
  • [11] PJD315B331 CAPILLARY(6) Contact Notes: !D2.6XD4.0 L190, !D2.6XD4.0 L190   Contact
  • [12] PJD315B332 CAPILLARY(7) Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [13] PJD315B333 CAPILLARY(8) Contact Notes: !D2.6XD4.0 L160, !D2.4XD4.0 L160   Contact
  • [14] PJD315B334 CAPILLARY(9) Contact Notes: !D2.2XD3.2 L180, !D2.2XD3.2 L180   Contact
  • [15] PJD315B335 CAPILLARY(10) Contact Notes: !D2.2XD3.2 L210, !D2.2XD3.2 L210   Contact
  • [16] PJD315B336 CAPILLARY(11) Contact Notes: !D2.2XD3.2 L220, !D2.2XD3.2 L220   Contact
  • [17] PJD315B337 CAPILLARY(12) Contact Notes: !D3.0XD4.0 L230, !D3.0XD4.0 L230   Contact
  • [18] PJD141A029F PLATE ASSY,BAFFLE Contact Notes: LEFT, LEFT   Contact
  • [19] PJD141A030F PLATE ASSY,BAFFLE Contact Notes: RIGHT, RIGHT   Contact
  • [20-21] PJD454A010A PAN, DRAIN In Stock
  • [21] SSA422C058 SOCKET Contact   Contact
  • [22] SSY511T001 MOTOR AC In Stock
  • [23] SSA552A260F CAPACITOR In Stock Notes: CFI 14MF 450VAC, CFI 14MF 450VAC Show Image
  • [24] PJD116A083A BRACKET FAN In Stock
  • [25] PJD116A084A BRACKET MOTOR In Stock
  • [26] PJY116A517 BRACKET FAN In Stock Show Image
  • [27-29] PJD433B004 CASING Out of Stock Notes: COWLING
  • [28] PJD433B004 CASING Out of Stock Notes: COWLING
  • [29] PJD433B004 CASING Out of Stock Notes: COWLING
  • [30-31] SSA431D074 IMPELLER Out of Stock
  • [31] H721B08X012 SCREW,SCH-CP In Stock Notes: 1PC ONLY
  • [32] PJA551A010N SENSOR In Stock Notes: AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-A Show Image
  • [33] PJA551A005AF SENSOR In Stock Notes: REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-R Show Image
  • [34] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
SKU: FDURA501R HEAT EXCH. AND FAN Category:
