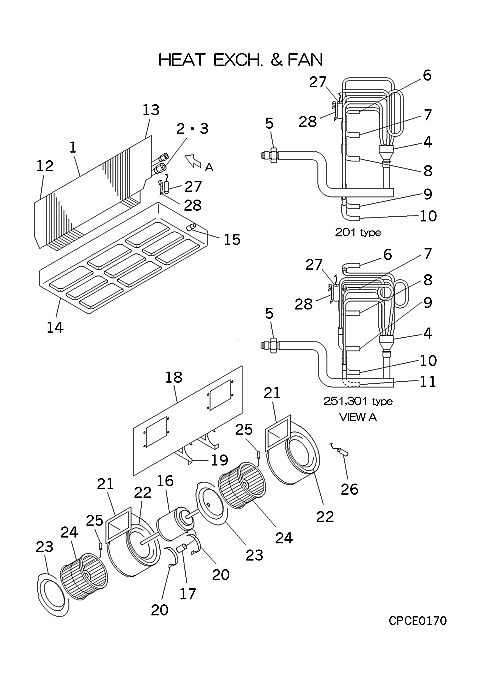

FDURA301 HEAT EXCH. AND FAN

FDURA301 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJD311A025A
HEAT EXCH(AIR)
Contact
[1-13] Out of Stock
PJD301A037B
HEAT EXCH A
[2-3] Contact
PJD315D060
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4-11] Contact
PJD315A063A
DISTRIBUTOR
Contact
[4] Contact
SSA315A252D
DISTRIBUTOR
Contact
[5] Contact
SSA323F075A
UNION
Contact
[6] Contact
PJD315B338
CAPILLARY(1)
Contact
Notes: !D2.4XD4.0 L290
[7] Contact
PJD315B339
CAPILLARY(2)
Contact
Notes: !D2.4XD4.0 L260
[8] Contact
PJD315B340
CAPILLARY(3)
Contact
Notes: !D2.6XD4.0 L200
[9] Contact
PJD315B341
CAPILLARY(4)
Contact
Notes: !D3.0XD4.0 L240
[11] Contact
PJD315B343
CAPILLARY(6)
Contact
Notes: !D2.4XD4.0 L230
[12] Contact
PJD141A029D
PLATE ASSY,BAFFLE
Contact
Notes: LEFT
[13] Contact
PJD141A030D
PLATE ASSY,BAFFLE
Contact
Notes: RIGHT
[14-15] In Stock
PJD454A010
PAN DRAIN
[15] Contact
SSA422C058
SOCKET
Contact
[16] In Stock
SSA511T158
MOTOR,AC
[17] In Stock
SSA552A862K
CAPACITOR
Notes: CFI 10MF 450VAC Show Image
SSA552A862K
[18] In Stock
PJD116A083
BRACKET FAN
[19] In Stock
PJD116A084
BRAKET FAN
Show Image
PJD116A084
[20] In Stock
PJY116A517
BRACKET FAN
Show Image
PJY116A517
[21-23] In Stock
PJD433B003
CASING
[22] Contact
PJD433A005
SHROUD,SUCTION
Contact
[23] Contact
PJD433A005A
SHROUD,SUCTION
Contact
[24-25] In Stock
SSA431D073
IMPELLER
Show Image
SSA431D073
[25] In Stock
H721B08X012
SCREW,SCH-CP
Notes: 1pc ONLY
[26] In Stock
PJA551A010N
SENSOR
Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image
PJA551A010N
[27] In Stock
PJA551A005C
SENSOR
Notes: THI-R Show Image
PJA551A005C
[28] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
SKU: FDURA301 HEAT EXCH. AND FAN Category:
