FDURA201R PANEL ASSY

FDURA201R PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

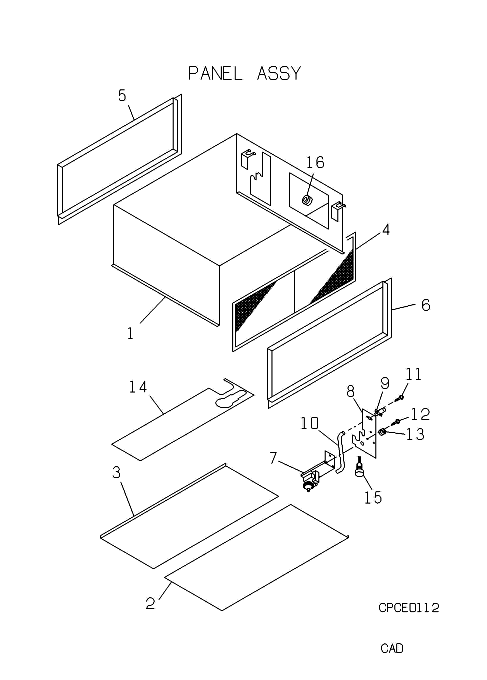

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJD124A012D
PANEL,TOP
Contact
[2] Out of Stock
PJD119A114
PLATE,BOTTO
[3] Contact
PJD119A129
PLATE ASSY
Contact
[4] In Stock
PJD437A006
FILTER
Notes: 1pc ONLY
[5] Out of Stock
PJD438A033
JOINT DUCT
Notes: OUTLET
[6] Out of Stock
PJD438A033A
JOINT DUCT
Notes: INLET
[7] In Stock
PJA451A510H
DRAIN PUMP
[7-12] In Stock
PJD451A001
PUMP DRAIN
[8] Out of Stock
PJD132A004
LID
[9] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[9-10] Out of Stock
PJD422C001
SOCKET ASSY, DRAIN
[10] In Stock
SSA423A092A
HOSE,DRAIN
SSA423A092A
[11] Contact
W011D04X012
TAP-SCREW
Contact
Notes: 4X12, 1pc ONLY
[12] Contact
SSA913D013
TAP SCREW
Contact
Notes: 4X8, 1pc ONLY
[13] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[14] Contact
PJD141A034
PLATE ASSY
Contact
[15] Out of Stock
PJD536A004A
SWITCH FLOAT
Notes: FS, OUT OF PRODUCTION Show Image
PJD536A004A
[16] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[17] In Stock
PSA006A039
HOSE SET, DRAIN
[18] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
SKU: FDURA201R PANEL ASSY Category:
