FDURA201R HEAT EXCH. AND FAN

FDURA201R HEAT EXCH. AND FAN

Available Parts

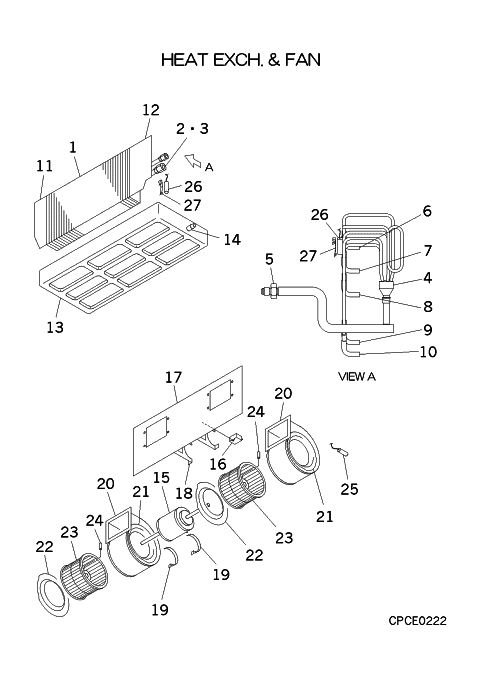

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A025 HEAT EXCH(AIR) Contact   Contact
  • [1-12] PJD301A037 HEAT EXCH A In Stock
  • [2-3] PJD315D059 HEADER ASSY,GAS Contact   Contact
  • [3] SSA323F012G UNION,SOLDER Contact Notes: GAS   Contact
  • [4] SSA315A252 DISTRIBUTOR Contact   Contact
  • [4-10] PJD315A064 DISTRIBUTOR Contact   Contact
  • [5] SSA323F075 UNION Contact Notes: LIQ.   Contact
  • [6] PJD315B344 CAPILLARY(1) Contact Notes: !D2.4XD4.0 L220, !D2.4XD4.0 L220   Contact
  • [7] PJD315B345 CAPILLARY(2) Contact Notes: !D2.4XD4.0 L380, !D2.4XD4.0 L380   Contact
  • [8] PJD315B346 CAPILLARY(3) Contact Notes: !D2.4XD4.0 L220, !D2.4XD4.0 L220   Contact
  • [9] PJD315B347 CAPILLARY(4) Contact Notes: !D3.0XD4.0 L240, !D3.0XD4.0 L240   Contact
  • [10] PJD315B348 CAPILLARY(5) Contact Notes: !D2.4XD4.0 L280, !D2.4XD4.0 L280   Contact
  • [11] PJD141A029D PLATE ASSY,BAFFLE Contact Notes: LEFT, LEFT   Contact
  • [12] PJD141A030D PLATE ASSY,BAFFLE Contact Notes: RIGHT, RIGHT   Contact
  • [13-14] PJD454A010 PAN DRAIN In Stock
  • [14] SSA422C058 SOCKET Contact   Contact
  • [15] SSY511T003 MOTOR,AC In Stock
  • [16] SSA552A862H CAPACITOR Out of Stock Substitute: OUT OF PRODUCTION Notes: CFO1,2, CFO1,2
  • [17] PJD116A083 BRACKET FAN In Stock
  • [18] PJD116A084 BRAKET FAN In Stock Show Image
  • [19] PJY116A517 BRACKET FAN In Stock Show Image
  • [20-22] PJD433B003 CASING In Stock
  • [21] PJD433A005 SHROUD,SUCTION Contact   Contact
  • [22] PJD433A005A SHROUD,SUCTION Contact   Contact
  • [23-24] SSA431D073 IMPELLER In Stock
  • [24] H721B08X012 SCREW,SCH-CP In Stock Notes: 1PC ONLY
  • [25] PJA551A010N SENSOR In Stock Notes: AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-A Show Image
  • [26] PJA551A005C SENSOR In Stock Notes: THI-R, THI-R Show Image
  • [27] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
SKU: FDURA201R HEAT EXCH. AND FAN Category:
