FDUR308-A HEAT EXCH. AND FAN

FDUR308-A HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

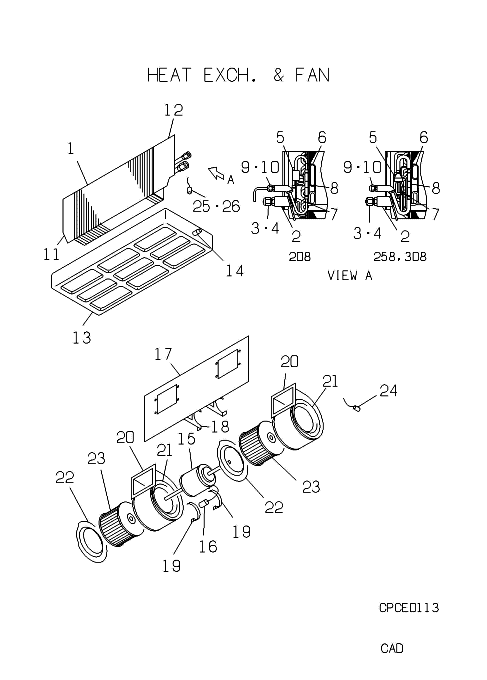

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJD311A012A
HEAT EXCH
Contact
[1-12] Out of Stock
PJD301A022B
HEAT EXCH
[2-4] Contact
PJD315D032A
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F075C
UNION
Contact
[4] Contact
SSA357H034A
STRAINER
Contact
[5] Contact
SSA315A293
DISTRIBUTOR
Contact
[5-10] Contact
PJD315A043B
DISTRIBUTOR
Contact
[6] Contact
PJD315B215
CAPILLARY
Contact
Notes: !D2.4XD4.0 L500
[7] Contact
PJD315B219
CAPILLARY ASSY(1)
Contact
Notes: !D3.0XD4.0 L200
[8] In Stock
SSA385A052
VALVE,CHECK
SSA385A052
[9] In Stock
SSA357H034
STRAINER
SSA357H034
[10] Contact
SSA323F075A
UNION
Contact
[11] Contact
PJD141A029
PLATE ASSY
Contact
Notes: LEFT
[12] Contact
PJD141A030
PLATE ASSY
Contact
Notes: RIGHT
[13-14] In Stock
PJD454A010
PAN DRAIN
[14] Contact
SSA422C058
SOCKET
Contact
[15] In Stock
SSA511T158
MOTOR,AC
[16] In Stock
SSA552A862K
CAPACITOR
Notes: CFI 10MF 450VAC Show Image
SSA552A862K
[17] In Stock
PJD116A083
BRACKET FAN
[18] In Stock
PJD116A084
BRAKET FAN
PJD116A084
[19] In Stock
PJY116A517
BRACKET FAN
PJY116A517
[20-22] In Stock
PJD433B003
CASING
[21] Contact
PJD433A005
SHROUD,SUCTION
Contact
[22] Contact
PJD433A005A
SHROUD,SUCTION
Contact
[23] In Stock
SSA431D073
IMPELLER
SSA431D073
[24] In Stock
PJA551A010N
SENSOR
Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image
PJA551A010N
[25] In Stock
PJA551A005AF
SENSOR
Notes: THI-R, REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image
PJA551A005AF
[26] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
SKU: FDUR308-A HEAT EXCH. AND FAN Category:
