FDUR258-A HEAT EXCH. AND FAN

FDUR258-A HEAT EXCH. AND FAN

Available Parts

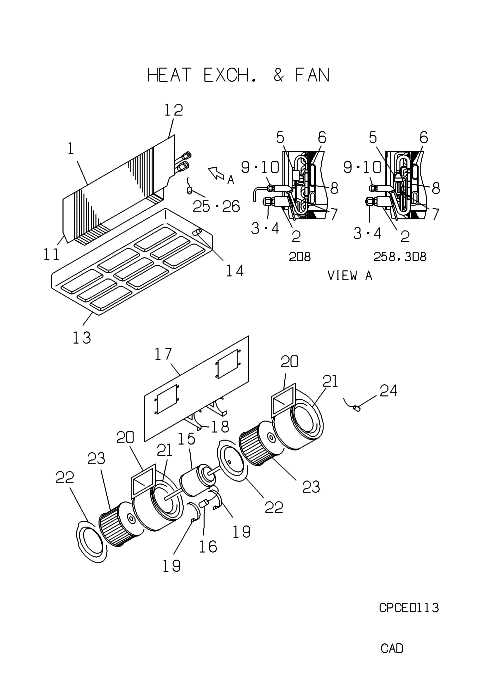

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A012A HEAT EXCH Contact   Contact
  • [1-12] PJD301A022A HEAT EXCH Contact   Contact
  • [2-4] PJD315D032A HEADER ASSY,GAS Contact   Contact
  • [4] SSA357H034A STRAINER Contact   Contact
  • [5] SSA315A293 DISTRIBUTOR Contact   Contact
  • [5-10] PJD315A043A DISTRIBUTOR Contact   Contact
  • [6] PJD315B214 CAPILLARY Contact Notes: !D2.0XD3.2 L400   Contact
  • [7] PJD315B219 CAPILLARY ASSY(1) Contact Notes: !D3.0XD4.0 L200   Contact
  • [8] SSA385A052 VALVE,CHECK In Stock Show Image
  • [9] SSA357H034 STRAINER In Stock Show Image
  • [10] SSA323F075A UNION Contact   Contact
  • [11] PJD141A029 PLATE ASSY Contact Notes: LEFT   Contact
  • [12] PJD141A030 PLATE ASSY Contact Notes: RIGHT   Contact
  • [13-14] PJD454A010 PAN DRAIN In Stock
  • [14] SSA422C058 SOCKET Contact   Contact
  • [15] SSA511T157 MOTOR,AC In Stock Substitute: SSY511T004
  • [16] SSA552A255A CAPACITOR In Stock Notes: CFI 8MF 450VAC, CFI 8MF 500VAC Show Image
  • [17] PJD116A083 BRACKET FAN In Stock
  • [18] PJD116A084 BRAKET FAN In Stock Show Image
  • [19] PJY116A517 BRACKET FAN In Stock Show Image
  • [20-22] PJD433B003 CASING In Stock
  • [21] PJD433A005 SHROUD,SUCTION Contact   Contact
  • [22] PJD433A005A SHROUD,SUCTION Contact   Contact
  • [23] SSA431D073 IMPELLER In Stock
  • [24] PJA551A010N SENSOR In Stock Notes: AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-A Show Image
  • [25] PJA551A005AF SENSOR In Stock Notes: REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-R Show Image
  • [26] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
SKU: FDUR258-A HEAT EXCH. AND FAN Category:
