FDUR208-A HEAT EXCH. AND FAN

FDUR208-A HEAT EXCH. AND FAN

Available Parts

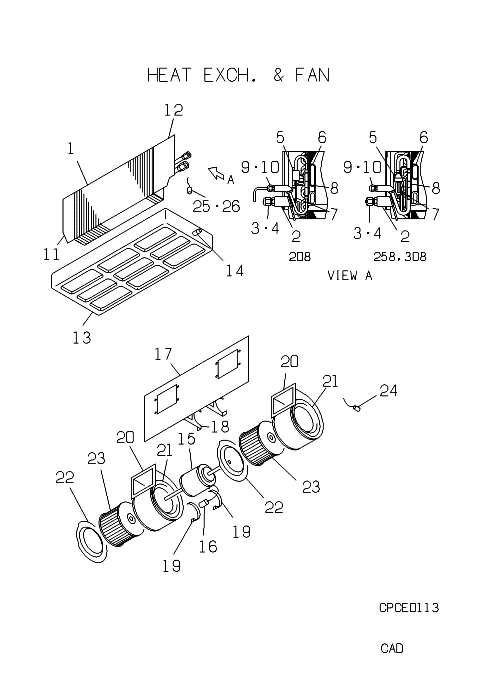

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A012 HEAT EXCH Contact   Contact
  • [1-12] PJD301A022 HEAT EXCH Contact   Contact
  • [2-4] PJD315D032 HEADER ASSY(GAS) Contact   Contact
  • [3] SSA323F075C UNION Contact   Contact
  • [4] SSA357H034A STRAINER Contact   Contact
  • [5] SSA315A292 DISTRIBUTOR Contact   Contact
  • [5-10] PJD315A043 DISTRIBUTOR Contact   Contact
  • [6] PJD315B213 CAPILLARY Contact Notes: !D1.6XD3.2 L500   Contact
  • [7] PJD315B226 CAPILLARY ASSY(2) Contact Notes: !D3.5XD5.0 L200   Contact
  • [8] SSA385A052 VALVE,CHECK In Stock Show Image
  • [9] SSA357H034 STRAINER In Stock Show Image
  • [10] SSA323F075 UNION Contact Notes: LIQ.   Contact
  • [11] PJD141A029B PLATE ASSY Contact Notes: LEFT   Contact
  • [12] PJD141A030B PLATE ASSY Contact Notes: RIGHT   Contact
  • [13-14] PJD454A010 PAN DRAIN In Stock
  • [14] SSA422C058 SOCKET Contact   Contact
  • [15] SSY511T003 MOTOR,AC In Stock
  • [16] SSA552A862H CAPACITOR Out of Stock Substitute: OUT OF PRODUCTION Notes: CFO1,2, CFO1,2
  • [17] PJD116A083 BRACKET FAN In Stock
  • [18] PJD116A084 BRAKET FAN In Stock Show Image
  • [19] PJY116A517 BRACKET FAN In Stock Show Image
  • [20-22] PJD433B003 CASING In Stock
  • [21] PJD433A005 SHROUD,SUCTION Contact   Contact
  • [22] PJD433A005A SHROUD,SUCTION Contact   Contact
  • [23] SSA431D073 IMPELLER In Stock
  • [24] PJA551A010N SENSOR In Stock Notes: AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-A Show Image
  • [25] PJA551A005AF SENSOR In Stock Notes: REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD., THI-R Show Image
  • [26] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
SKU: FDUR208-A HEAT EXCH. AND FAN Category:
