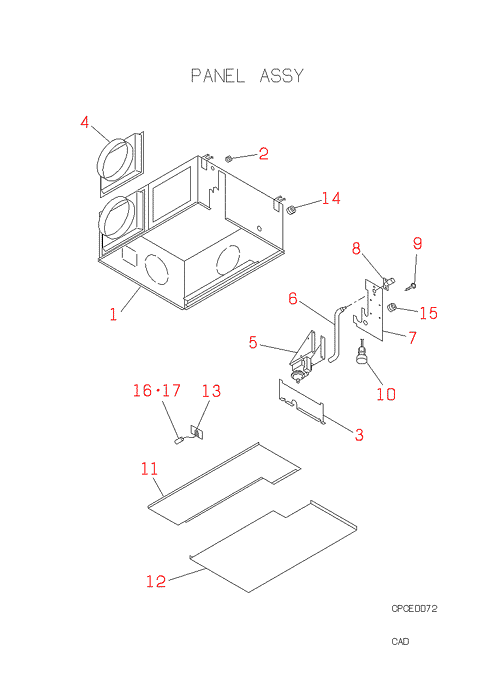

FDUMJ56HKXE2 PANEL ASSY

FDUMJ56HKXE2 PANEL ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-2] PJR100A106H CABINET ASY Contact   Contact
  • [2] S751W09 GROMMET Contact Notes: D13   Contact
  • [3] PJR132A101 LID Contact   Contact
  • [4] PJR438A102 JOINT DUCT In Stock Show Image
  • [5] PJR451A111A PUMP ASSY Contact Substitute: PJR451A110A   Contact
  • [5-9] PJR451A110B PUMP,DRAIN Contact   Contact
  • [6] SSA423A081 HOSE DRAIN Contact   Contact
  • [7] PJR132A100A LID Contact   Contact
  • [8] SSA422C078A SOCKET In Stock
  • [9] SSA913D006 SCREW Contact Notes: 1PC ONLY, 4X8   Contact
  • [10] SSA536A017C SWITCH,FLOT In Stock Substitute: SSA536A001F Notes: FS Show Image
  • [11] PJR111A101D BOTTOM PLAT Contact Notes: FRONT   Contact
  • [12] PJR111A102 BOTTOM PLAT Contact Notes: REAR   Contact
  • [13] SSA947B010 GROMMET Contact Notes: 10X10   Contact
  • [14] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [15] S751W30 GROMMET In Stock Notes: D35 Show Image
  • [16] PJA551A010 SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [17] SSA937C290 CLIP Contact Notes: FOR THI-A   Contact
  • [18] SSA423A070 HOSE, DRAIN Out of Stock Substitute: PSA006A039 Show Image
SKU: FDUMJ56HKXE2 PANEL ASSY Category:
