FDUMJ36HKXE2 HEAT EXCH. AND FAN

FDUMJ36HKXE2 HEAT EXCH. AND FAN

Available Parts

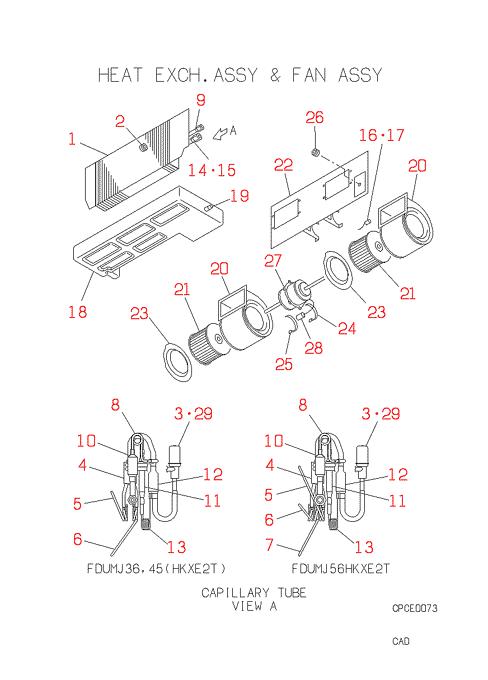

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJR311A103 HEAT,EX,AIR Contact   Contact
  • [1-15] PJR311A104W HEAT,EX,AIR In Stock
  • [2] S751W09 GROMMET Contact Notes: D13   Contact

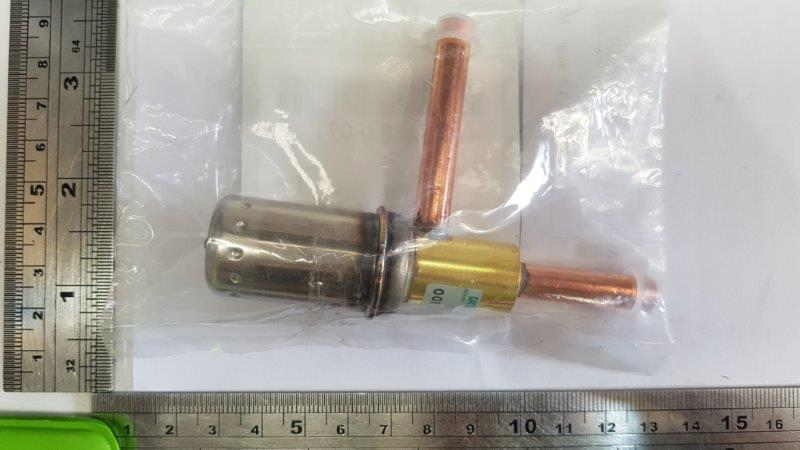

  • [3] SSA387F021 EXP HKXA In Stock Show Image
  • [4] SSA315A250C DISTRIBUTOR Contact   Contact
  • [4-6] PJR315A010B DISTRI ASY Contact   Contact
  • [5] PJR315B131 CAPILLARY A Contact Substitute: PJR315A010 Notes: !D1.5XD2.5 L150   Contact
  • [6] PJR315B132 CAPILLARY A Contact Substitute: PJR315A010 Notes: !D1.5XD2.5 L150   Contact
  • [8] PJR315B120 CAPILLARY T Contact Substitute: P210V28A000   Contact
  • [8-11] PJR321A111D PIPNG GS Contact   Contact
  • [9] SSA323F006 UNION Contact   Contact
  • [10] SSA357A008BG STRAINER Contact   Contact
  • [11] SSA385A015 VALVE CHECK In Stock Show Image
  • [12] SSA357A008BH STRAINER Contact   Contact
  • [12-13] PJR357A103C STRAINER Contact   Contact
  • [13] PJR315B207 CAPILLARY Contact Notes: !D1.0XD2.0 L500   Contact
  • [14-15] PJR315D102F HEADER GAS Contact   Contact
  • [15] SSA323F012B UNION Contact Notes: GAS   Contact
  • [16] PJA551A005 SENSOR In Stock Notes: THI-R, THI-R Show Image
  • [17] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
  • [18-19] PJR454A102 PAN DRAIN Contact   Contact
  • [19] SSA326A003F PLUG In Stock Show Image
  • [20] PJB433B001F CASING Contact   Contact
  • [21] SSA431D089 IMPELLER In Stock
  • [22] PJR116A122 BRACKET FAN Contact   Contact

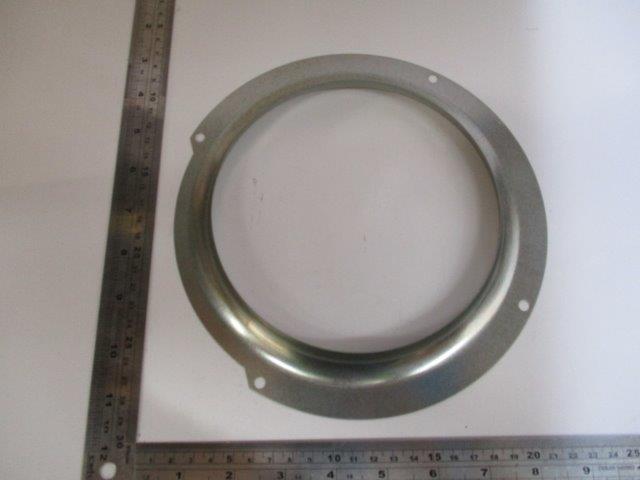

  • [23] PJB433A001 SHROUD In Stock Show Image
  • [24] PFA116A207B BRACKET, MOTOR In Stock Substitute: PFA116A207G Notes: RIGHT Show Image
  • [25] PFA116A207C BRACKET, MOTOR In Stock Substitute: PFA116A207H Notes: LEFT Show Image
  • [26] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [27-28] SSA511A366A FAN MOTOR Contact   Contact
  • [28] SSA511A36607 CAPASITOR,R Contact   Contact
  • [29] SSA382F451 COIL SOL300 In Stock Notes: EXPANSION VALVE COIL, SM Show Image
SKU: FDUMJ36HKXE2 HEAT EXCH. AND FAN Category:
