FDUMJ140HKXE2 PANEL ASSY

FDUMJ140HKXE2 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

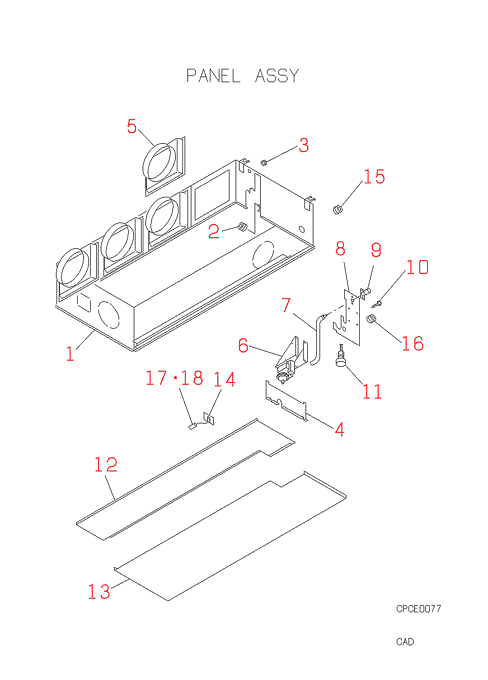

Check the parts position number [ ] matching with the drawing. Login to view prices.

[2] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[3] Contact
S751W09
GROMMET
Contact
Notes: D13
[4] Contact
PJR132A101
LID
Contact
[5] In Stock
PJR438A102
JOINT DUCT
PJR438A102
[6] Out of Stock
PJR451A111A
PUMP ASSY
Substitute: PJR451A110A
[6-10] Out of Stock
PJR451A110B
PUMP,DRAIN
[7] Contact
SSA423A081
HOSE DRAIN
Contact
[8] Contact
PJR132A100A
LID
Contact
[9] In Stock
SSA422C078A
SOCKET
[10] Contact
SSA913D006
SCREW
Contact
Notes: 4X8, 1pc ONLY
[11] In Stock
SSA536A017C
SWITCH,FLOAT
Notes: FS Show Image
SSA536A017C
[12] Contact
PJR111A101C
BOTTOM PLAT
Contact
Notes: FRONT
[13] Contact
PJR111A102B
BOTTOM PLAT
Contact
Notes: REAR
[14] Contact
SSA947B010
GROMMET
Contact
Notes: 10X10
[15] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[16] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[17] In Stock
PJA551A010
SENSOR ASSY
Notes: THI-A Show Image
PJA551A010
[18] Contact
SSA937C290
CLIP
Contact
Notes: FOR THI-A
[19] In Stock
PSA006A039
HOSE SET, DRAIN
SKU: FDUMJ140HKXE2 PANEL ASSY Category:
